Xtylos

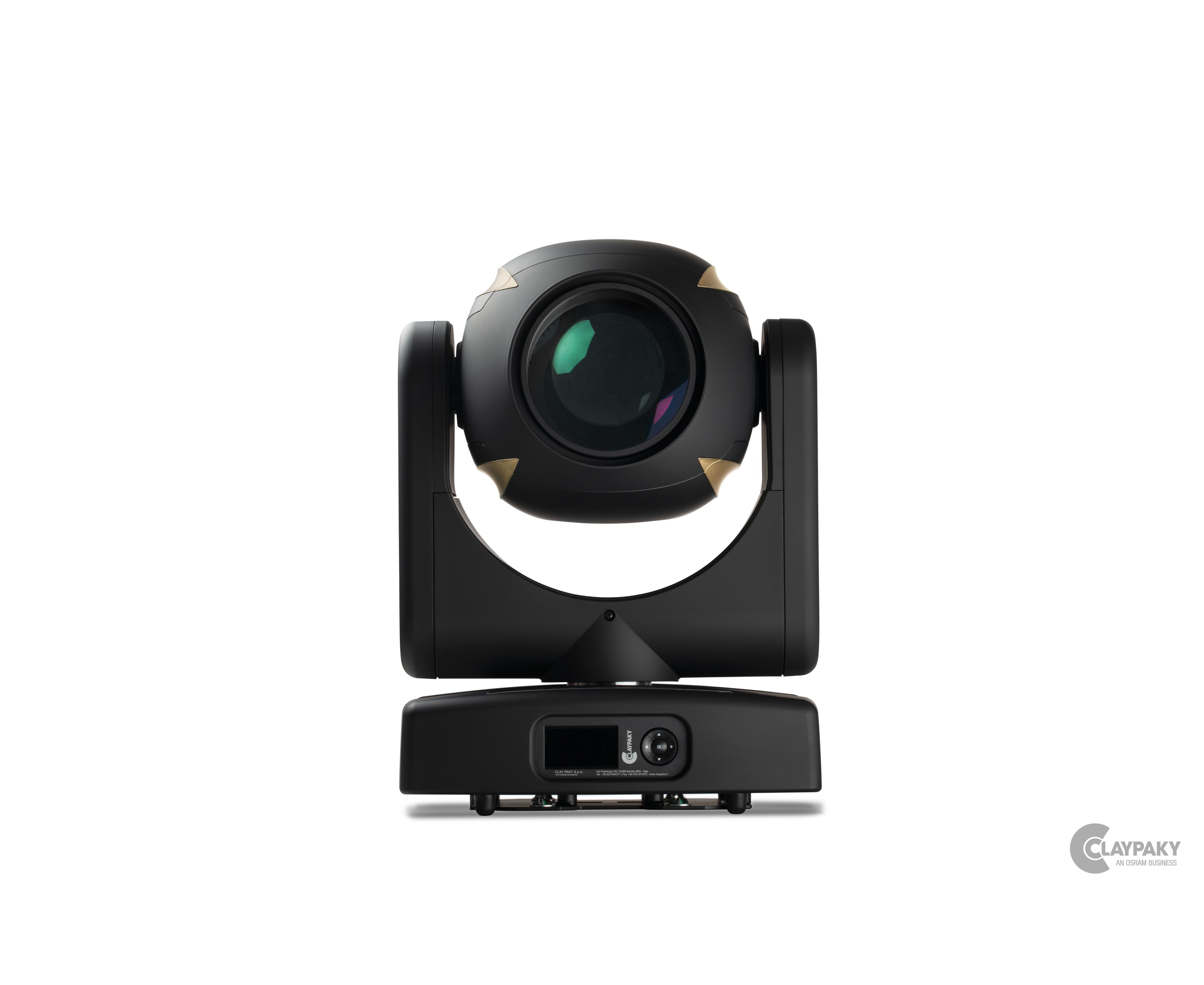

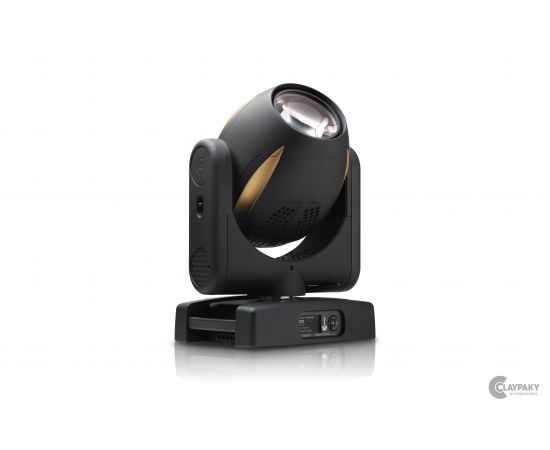

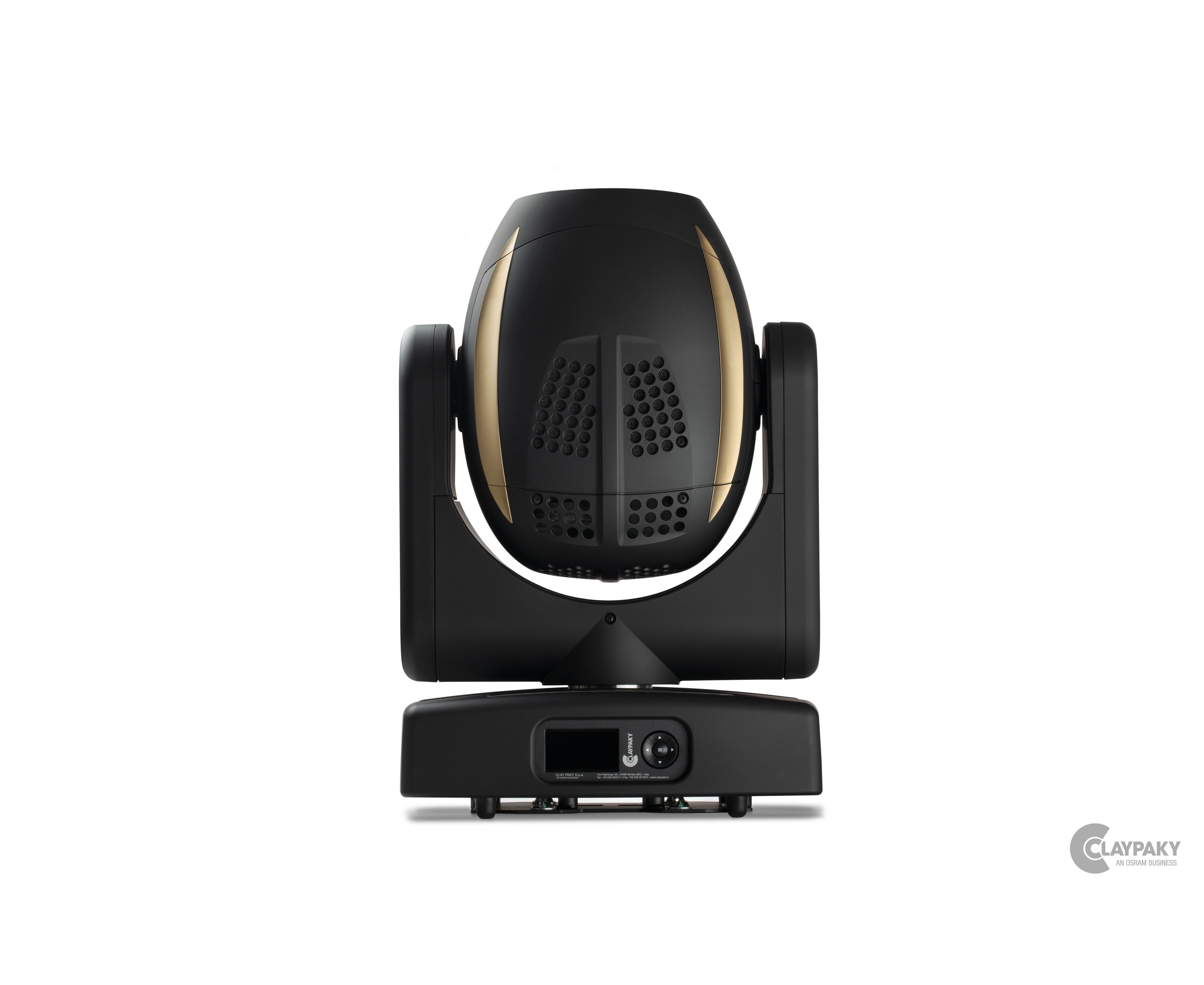

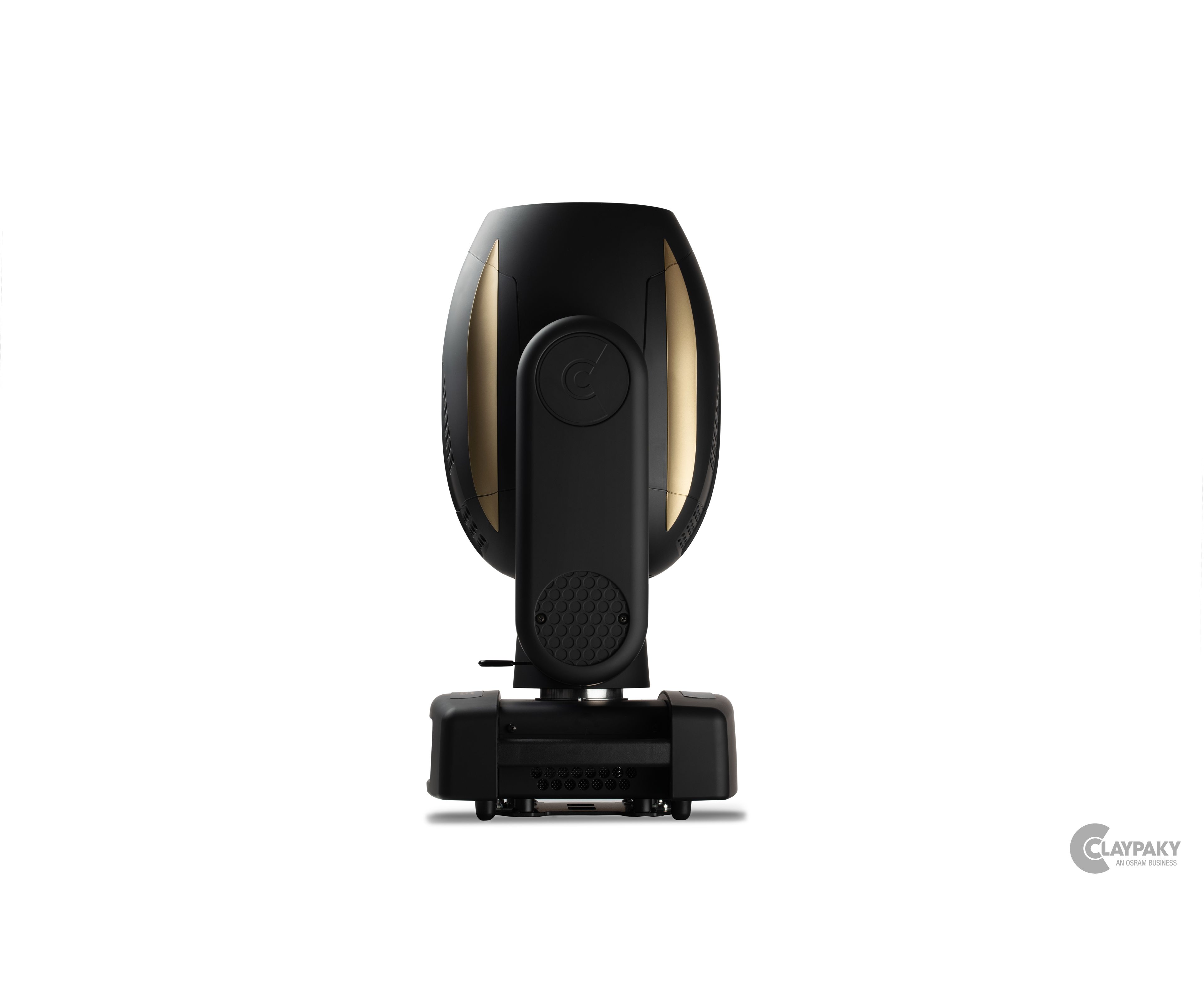

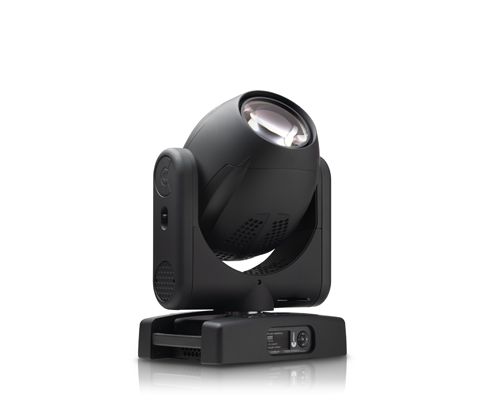

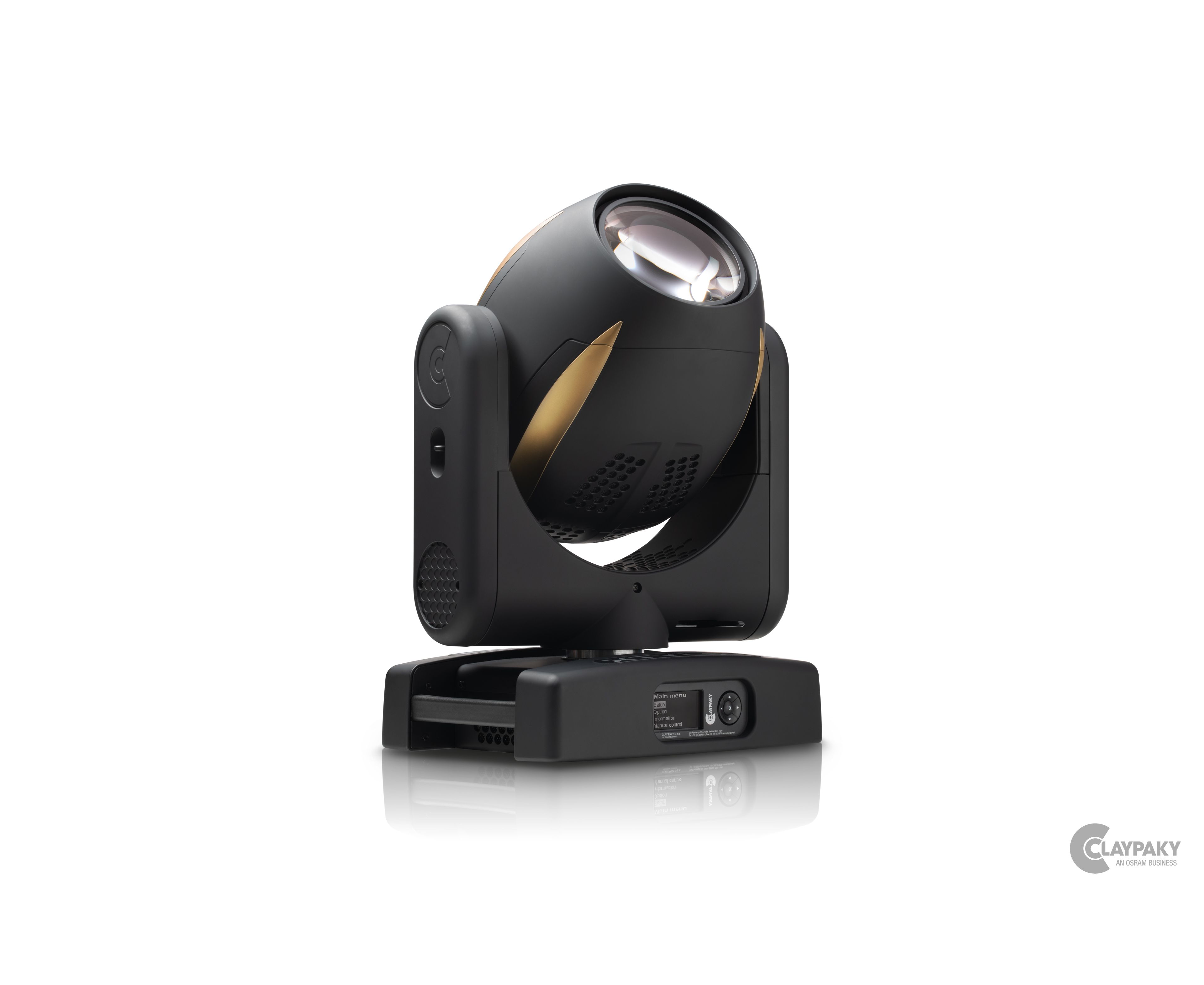

The Xtylos is a compact beam moving light with unique optical and chromatic characteristics, making use of a tailor-made RGB laser source (Patent Application filed). This laser source, lasting for 10,000 hours, is enclosed in a reliable, safe and fully sealed module and it is the powerful engine of an incredible array of colours: in contrast to the subtractive mixing used with discharge lamps, coloured light beams are as bright as a white light beam!
The range of effects features two gobo wheels - with 7 rotating gobos and 12 static gobo slots - a wheel with 3 prisms, and a sixteen facet prism on a dedicated channel which can be overlapped with the prism wheel. The beam aperture can be steered in the range 1°-7° and it can be decreased further to 0.5°.
The Xtylos is definitely the most dynamic light on the market. It is the first moving head light with a laser light source, and this opens up new, surprising prospects for the development of the entire entertainment lighting world.
- Light Source: Tailor-made laser engine, enclosed in a sealed module
- Long lasting light source (10,000 hours) with minimal decay
- Solid, flat field, saturated, ultraconcentrated light beam without any visible hotspots.
- Aperture: 1°-7° range (up to 0.5° using beam diameter reducers)
- RGB additive colour mixing, with exclusive Turbo-colours
- Unequalled colour consistency both across different fixtures and during lifetime.
- Exclusive BLazer graphic effects
- One wheel with 7 rotating gobos
- One wheel with 12 static gobo slots: 5 gobos and 7 beam reducers
- One wheel with 3 prisms and 1 soft-edge frost filter
- Sixteen-facet prism on a dedicated channel
- Unrivalled effect and colour change speed
- Compact housing with easy accessibility to all modules
- Extremely fast pan-tilt movements
- Ultra-precise 24-bit digital dimmer
RISK GROUP 3 - Warning: possibly hazardous optical radiation emitted from this product. Do not look at operating lamp source. Eye injury may result. EN/IEC 62471 - Hazard distance: refer to the manual
CLASS 1 laser product: EN/IEC 60825-1 2014
POWER SUPPLIES
AC power input/output Neutrik PowerCON True1
100-240V, 50/60 Hz
INPUT POWER
400 VA @230Vac - 50Hz
LIGHT SOURCE
Tailor-made laser engine, enclosed in a sealed module
Long lasting light source (10,000 hours) with minimal decay
Solid, flat field, saturated, ultra-concentrated light beam without any visible hotspots

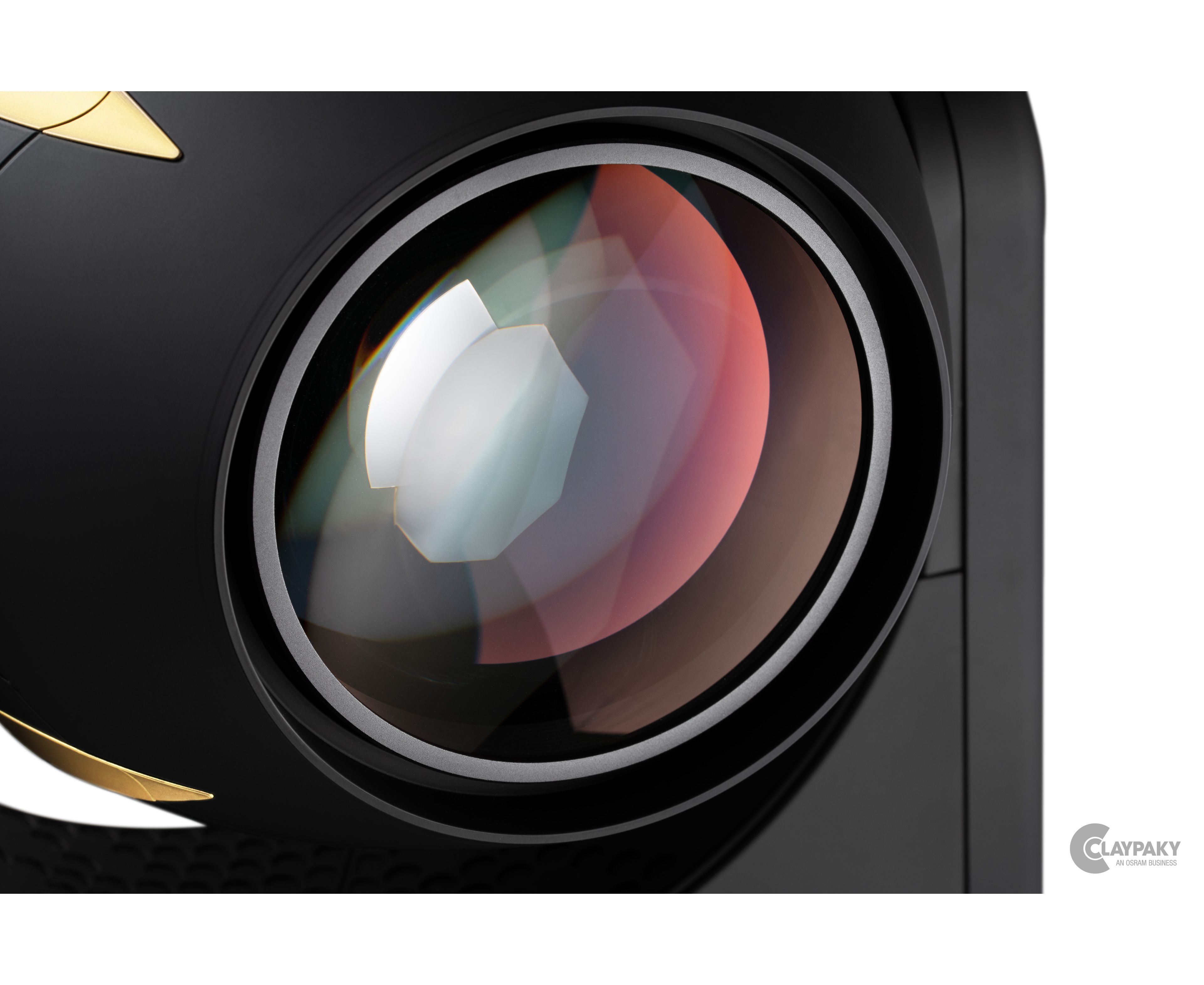

OPTICS
Aperture: 1°-7° range (up to 0.5° using beam diameter reducers)
Electronic Focusing
COLOR SYSTEM
RGB Laser based system
Linear Virtual CTO
Macro Colours
EFFECTS SECTION
12 Fied gobo slots, including 5 beam diameter reducers
7 Rotating Gobos
3 Rotating Prisms on 1 wheel: Convex plane, Pyramid 6 facets, Linear 6 facets
1 Rotating Prism with 16 facets
1 Frost filter (on the rotating prism wheel)
Effects Macro
0-100% digital dimmer, 24 bit
Fast digital stop/strobe effect
CONTROL AND PROGRAMMING
Inputs: DMX 512 – Art-Net
DMX protocol signal: USITT DMX 512
30/34 DMX 512 control channels
Display: LCD 128 x 64 Dots, backlit LED, white on black
Pan and Tilt Resolution: 16 bit
Focus Indexing Resolution: 16 bit
Dimmer Resolution: 24 bit
Rotation gobo Resolution: 16 bit
Rotating gobo indexing
Rotating 3prisms Resolution: 8 bit
Rotating 3prisms indexing

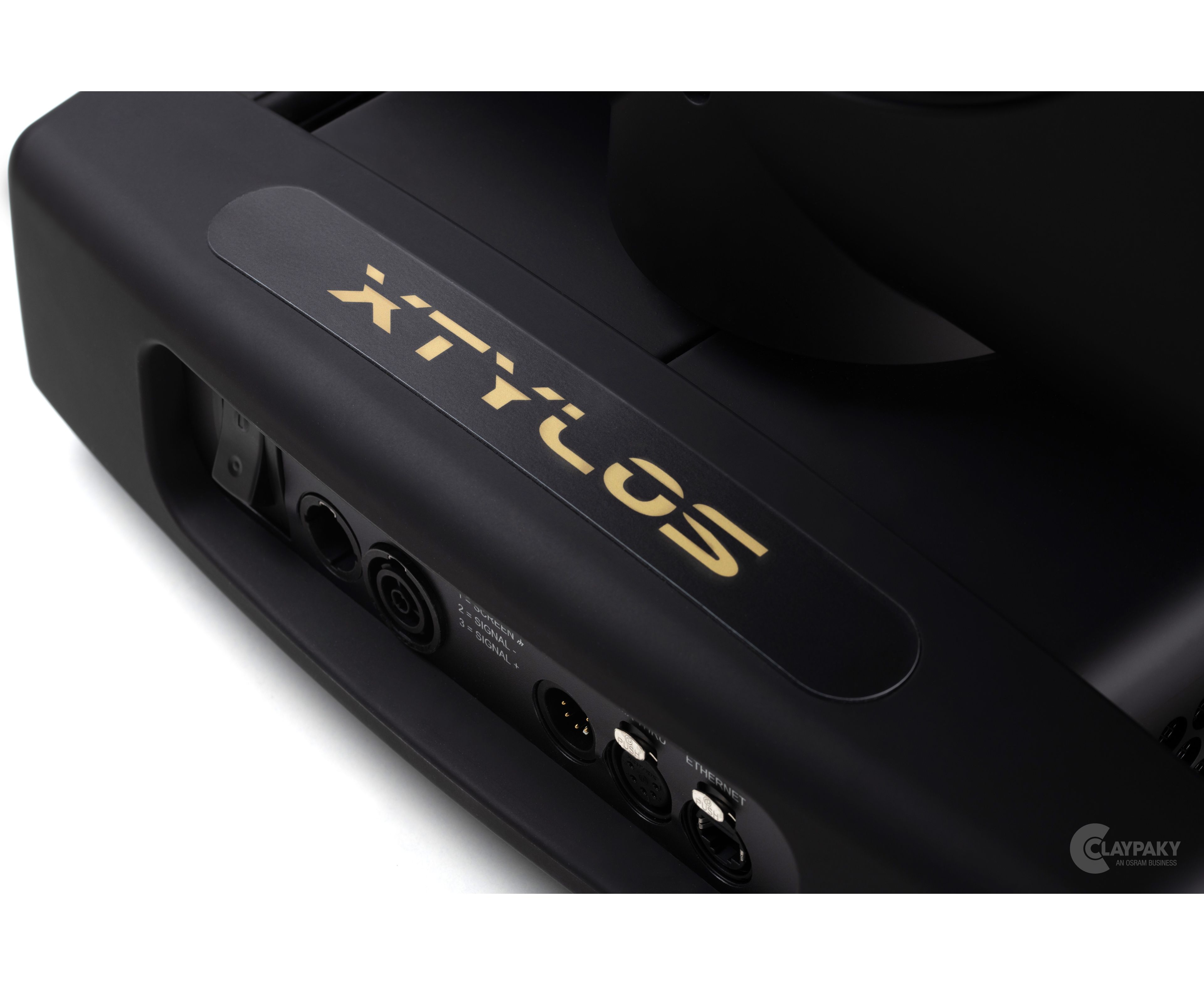

DMX signal connection: 5 pole XLR input and output
Software upload through DMX input / Ethernet input
RGB colour calibration
Real-time colour control algorithm when not in raw mode (CTO channel > 0)
Laser driver safety control logic at firmware level to switch-off light output in a safe state, when parameters outside of working range (redundant with hardware level safety)
RGB derating to preserve laser diodes
BODY
Aluminum and steel structure with plastic covers
Two side handles for transportation
Device locking PAN and TILT mechanisms for transportation and maintenance
MOVING BODY
TILT range 251°
Fast speed (Pan 2.46 – Tilt 1.68)
Accuracy:
Resolution ± 0,17° (Range 0,35°)
ELECTRONICS
Long life self-charging buffer battery.
Function reset from control unit.
Function reset from the lighting desk.
"AUTOTEST" function from menu.
Electronic monitoring with status error.
Cooling system monitoring.
DMX level monitoring on all channels.
Internal data transmission diagnostics.
Firmware Upgrade with no power (cpu only)
Firmware upload from another fixture (cpu only)
Base colours control: primary colours (RGB) in raw mode
Protocols/Functions: RDM, Web Server, ArtNet.
Source calibration in the production line.
Extremely reliable communication bus RS485
On-module calibration (calibration data are directly stored on the laser module)
SAFETY DEVICES
Minimum distance of illuminated objects 10 meters (32’ 10”)
Minimum distance from flammable materials 0.2 meters (8”)
Max ambient temperature 40°C (104°F)
Max temperature of the external surface 60°C (140°F)
Safety devices Bipolar circuit breaker with thermal protection
Automatic break in power supply in case of overheating

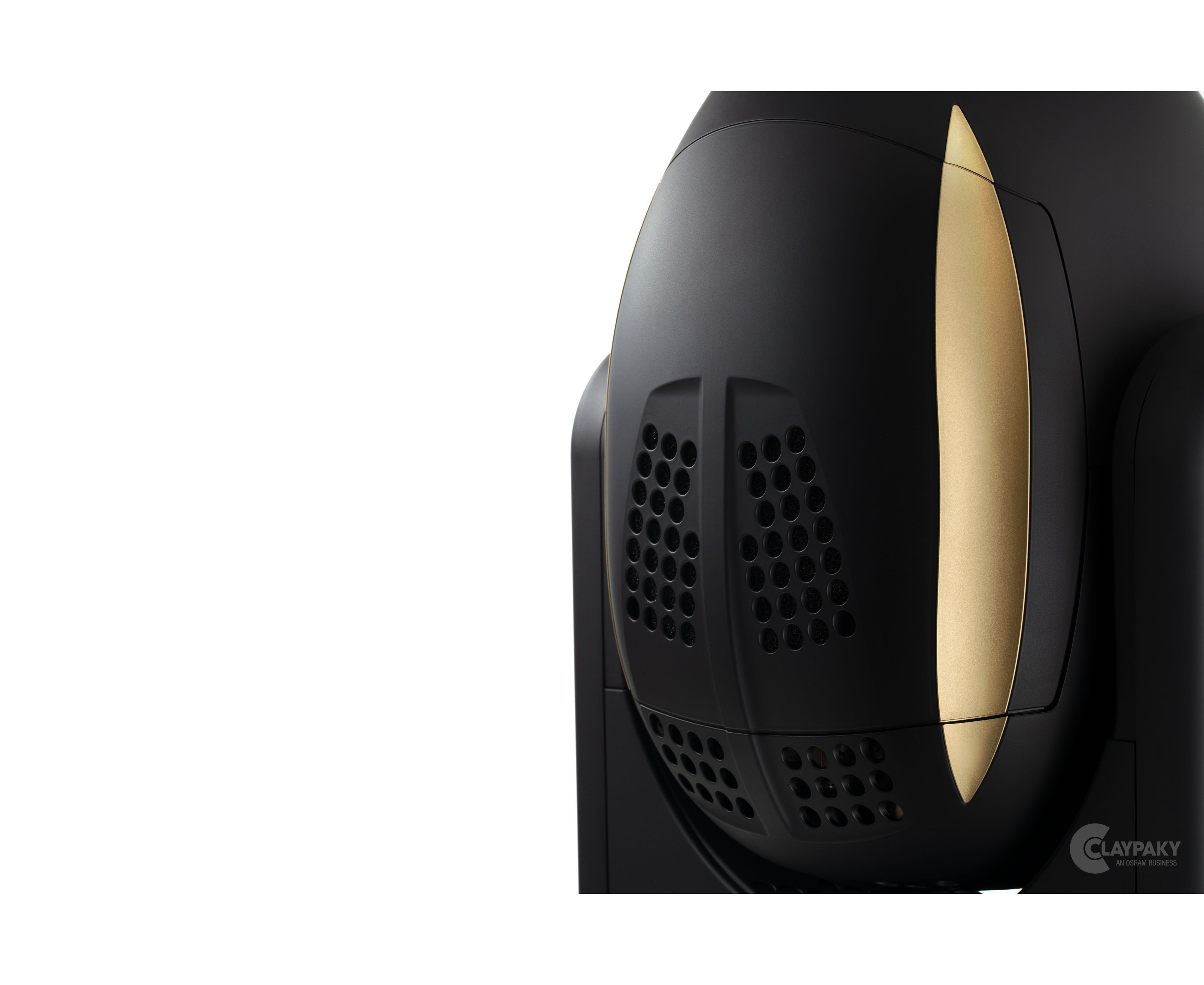

Forced ventilation with axial fans
WORKING POSITION
Working in any position
Hanging system: with fast-lock omega clamps (1/4 turn) on the base
CE MARKING
In conformity with the European Directives:
• 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
• 2014/30/EU - Electromagnetic Compatibility (EMC)
• 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)
• 2009/125/EC - EcoDesign requirements for Energy-related Products (ErP)
WEIGHT
24 Kg (53 lbs)
DIMENSIONS
391mm x 294 mm x 603mm (15.4” x 11.6” x 23.7”)
