Unirig Touring PRO (4Ch / 8Ch / 16Ch)
Touring PRO
Technical information
Motor Controller 4, 8 and 16 channels, in a linkable version.
Technical information
Motor Controller 4, 8 and 16 channels, in a linkable version.
| 4 channels | 8 channels | 16 channels | |
| Operating voltage | 220/400 V - 3P + E - 50/60 Hz | 220/400 V - 3P + E - 50/60 Hz | 220/400 V - 3P + E - 50/60 Hz |
| Protection class | IP 55 DIN 40050 | IP 55 DIN 40050 | IP 55 DIN 40050 |
| Outputs | 400V CEE 46 A - 3P + E | 400V CEE 46 A - 3P + E | 400V CEE 46 A - 3P + E |
| Multipole Connector | Optional | Optional | Optional |
| Weight | 8 kg | 14 kg | 23 kg |
| dimensions | 2U rack 420mm | 4U rack 420mm | 8U rack 420mm |
| Touch Screen | 3.2 inches | 5 inches | 5 inches |
| Remote Command | Optional | Optional | Optional |
| E-Stop | Included | Included | Included |
Linkable Motor Controller with touch screen, 3.2 e 5 inches.
Each model can be master or slave.
Remote touchscreen pushbutton.
Pre-installed the basic version of the Divo Os:
- UP / DOWN control
- multiple selection
- multifunction menu
- creation and handling of hoists group
- digital phase inversion

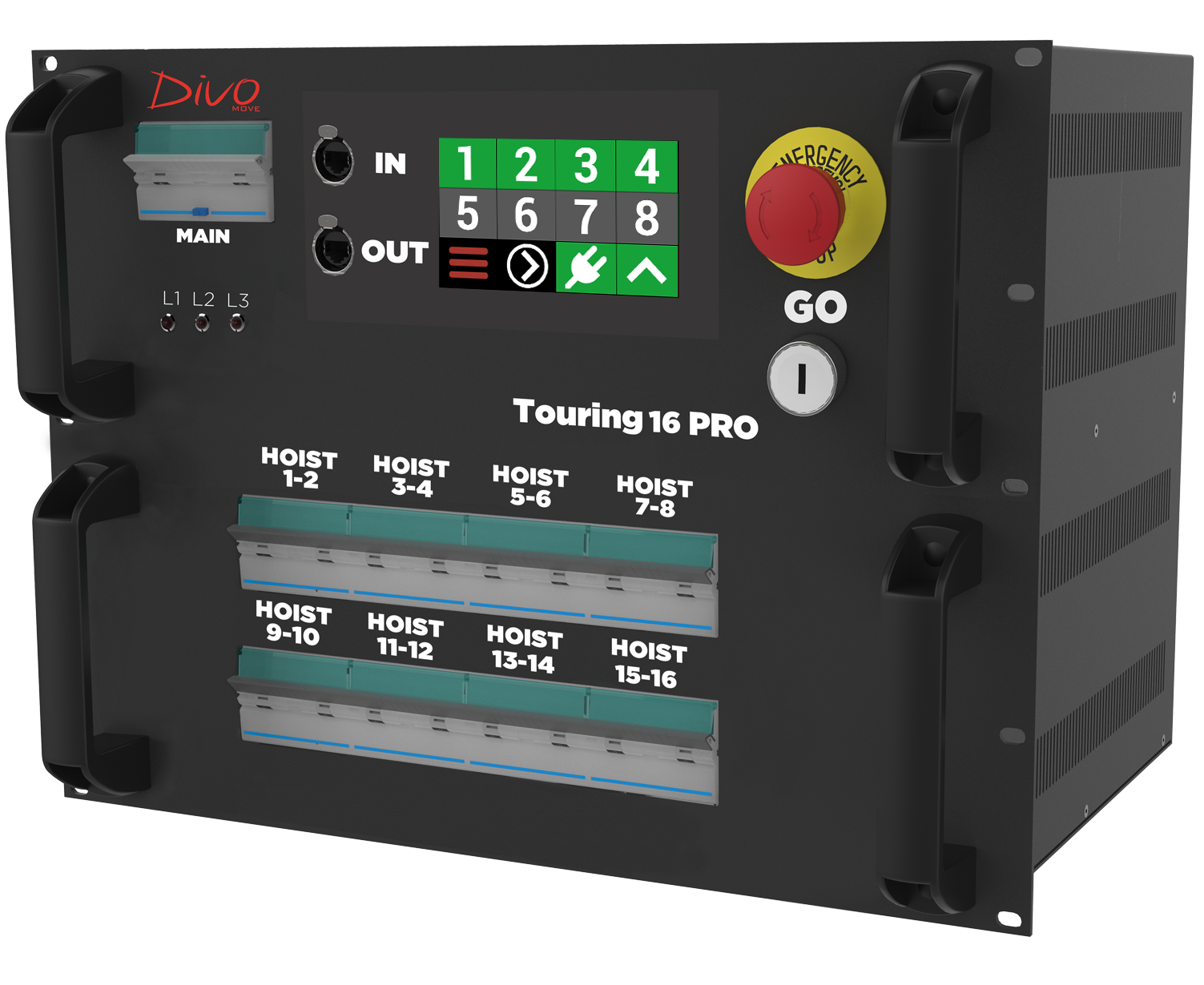

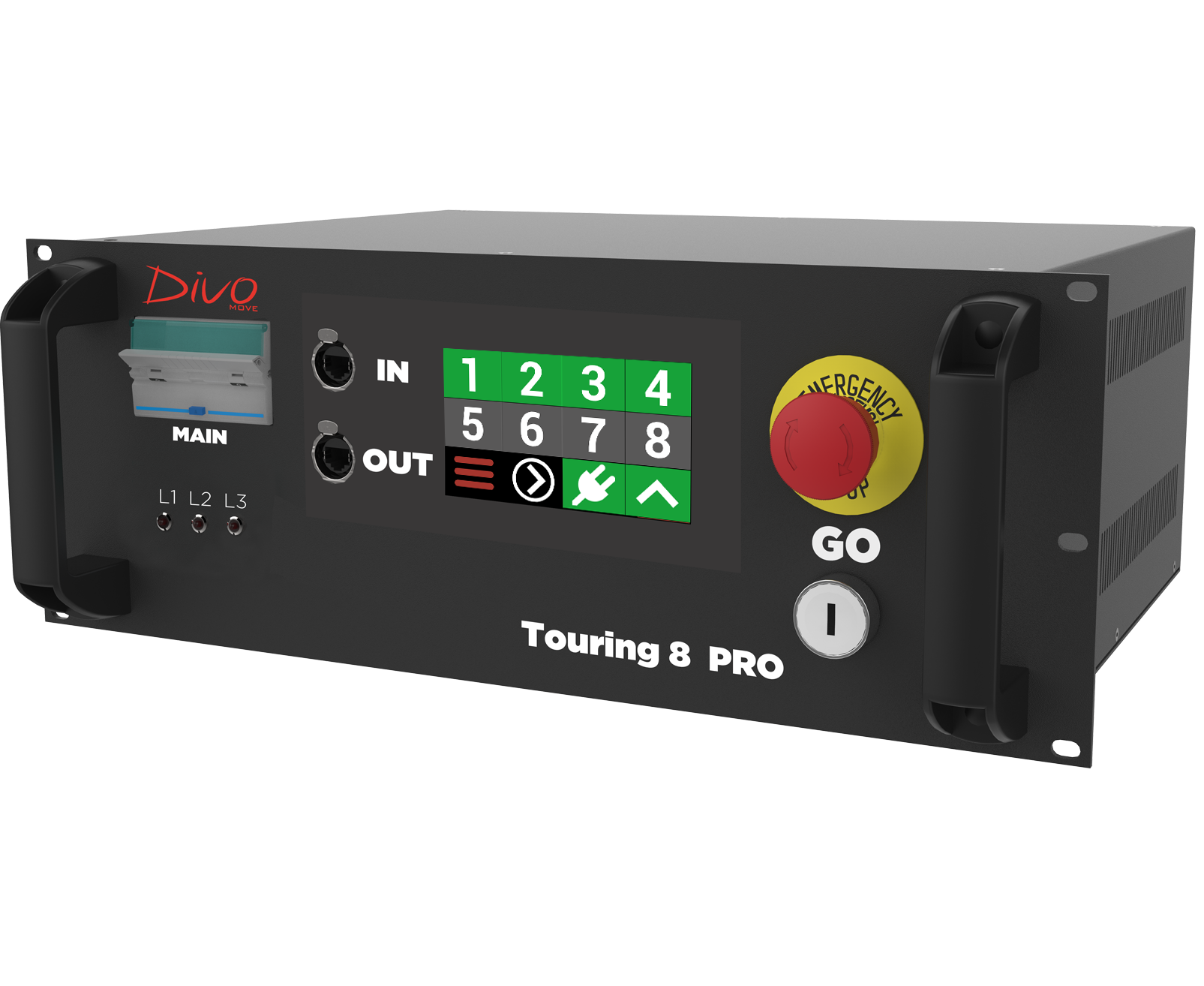

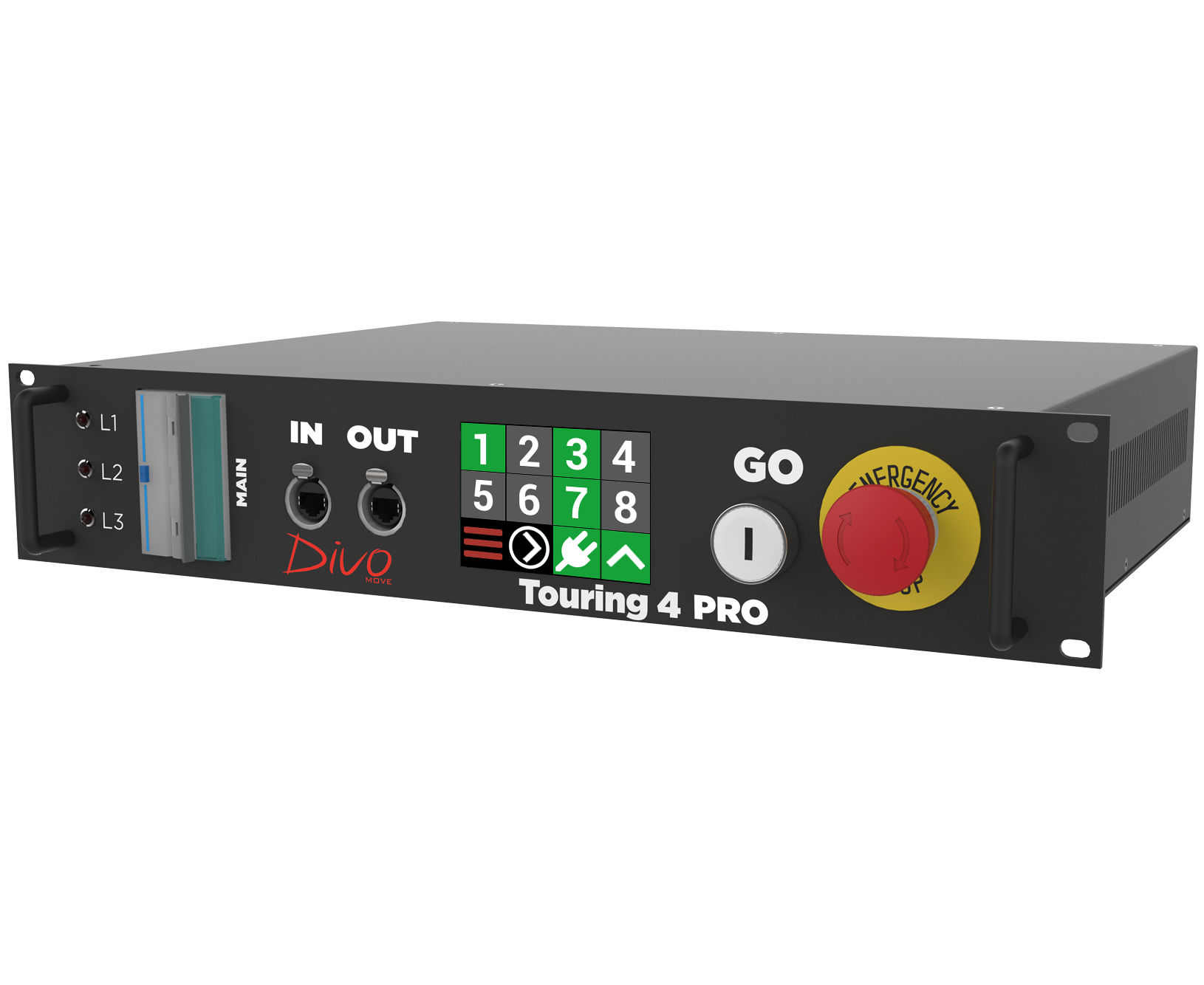

Touring PRO (4Ch / 8Ch / 16Ch)
