Clay Paky Tambora Batten
Tambora Batten
A high-power LED batten fixture, with advanced pixel mapping capabilities and unique "three layers" selection, which you can arrange seamlessly in line or in a matrix for amazing lighting effects.
The need for a high-power, feature-rich batten is now fulfilled with the Claypaky Tambora Batten. Powered by sixteen Osram 40W RGBW LEDs – the same LEDs found in the HY B-EYE and MINI-B fixtures – this fixture allows dynamic control of each LED for pixel mapping effects. Users can control each LED’s colour, dimming, and strobe rates individually or in unison. Several bars may be arranged seamlessly in a line or in a matrix maintaining the distance between the LEDs between different fixtures for uniform appearance to the sides and top/bottom.
The Tambora Batten offers zoom control from 4° to 50° and the unit’s cells tilt has a range of over 220° making it very versatile. It also features white CT emulation 2500-8000K, beam edge softening control in wash mode and a unique "three layers" selection in advanced mode.
Available in Round or Square sized lens configuration, the Tambora Batten is an adaptable lighting instrument that addresses many needs for inline or matrix lighting
• Light source: 16 x 40W RGBW Osram LEDs
• Highly efficient light output (8,500 lm)
• 4° to 50° zoom range
• Adjustable tilt over 220°
• Individual LED control for each parameter
• White CT emulation 2500-8000K
• Beam edge softening control (in wash mode)
• Unique "three layers" selection in advanced mode
• Exclusive parallel beam consisting of an array of individually controllable micro-beams
• Enhanced electronic engine for dynamic beam pattern design, with digital accuracy and repeatability
• Control signal: USITT DMX 512. Protocols: RDM, WebServer and Art-Net
• Arkaos Kling-Net protocol already included in the firmware
• DMX channels: 13/17/27/29/35
• Pixel engine: 48 and 64 channels
• Input Power: 660 VA@230Vac 50Hz
• Weight: 15.5 kg (34.2 lbs)
• Dimensions: 105 x 1000 x 288 mm (4.13 x 39.4 x 11.3 in)

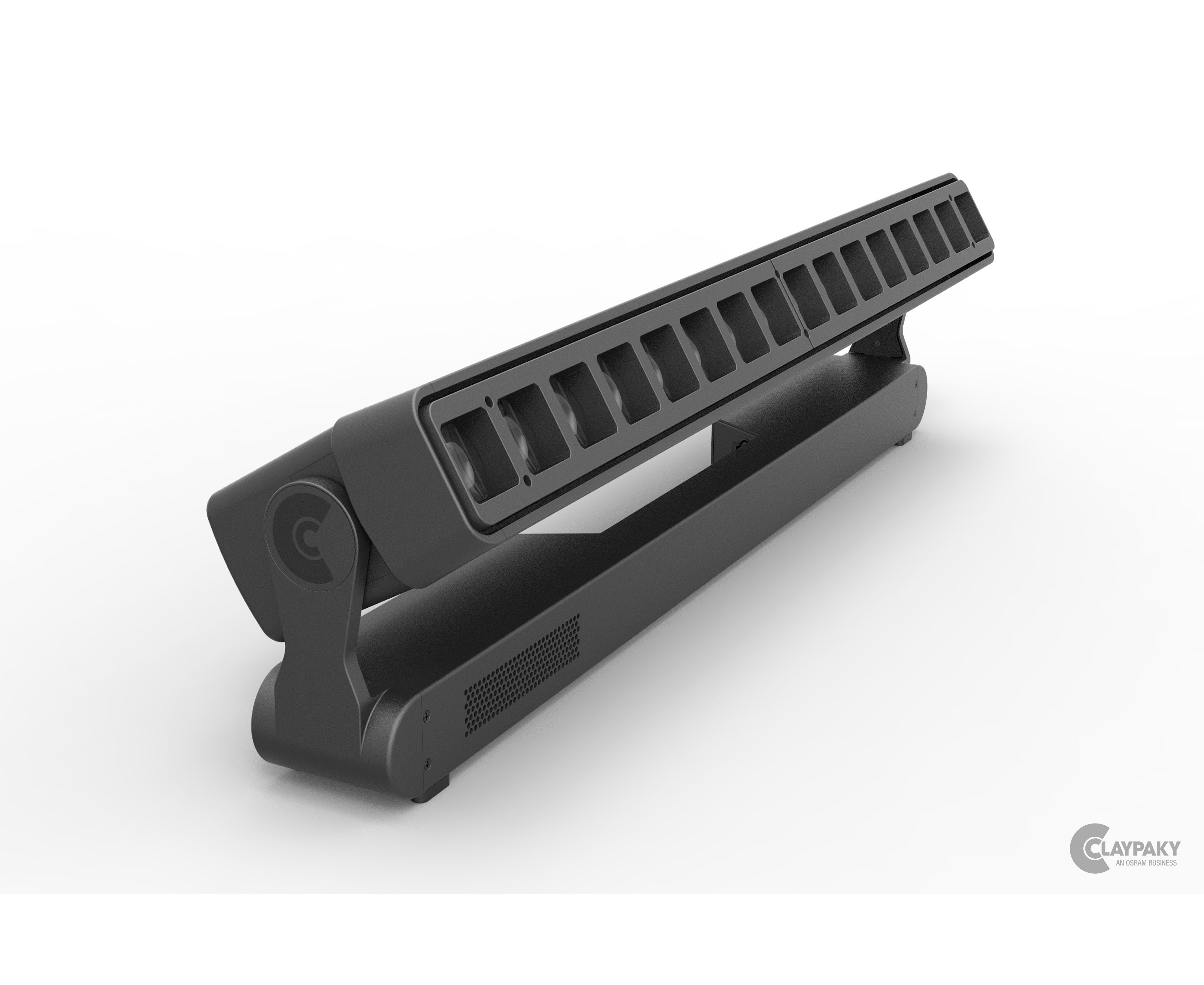

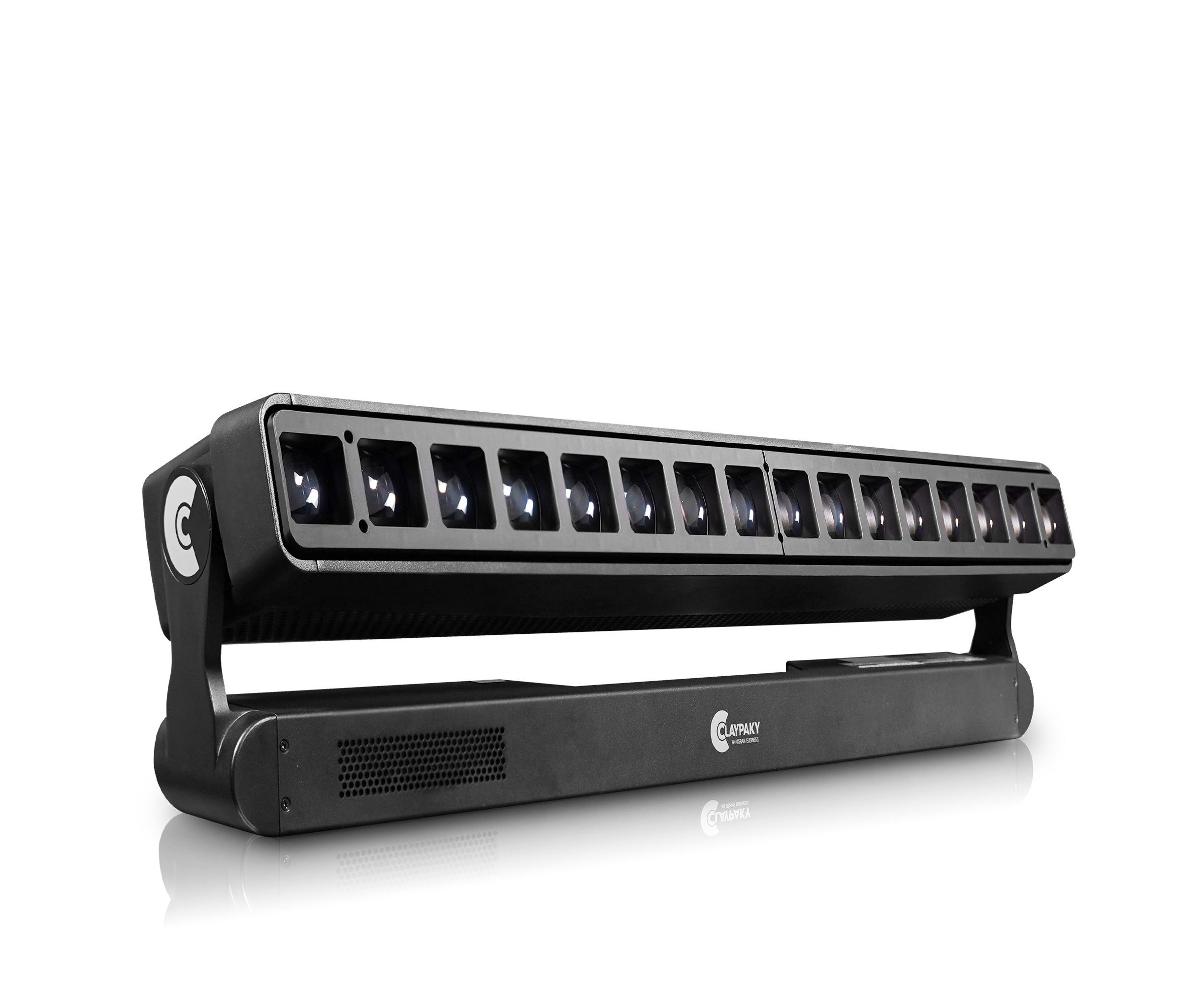

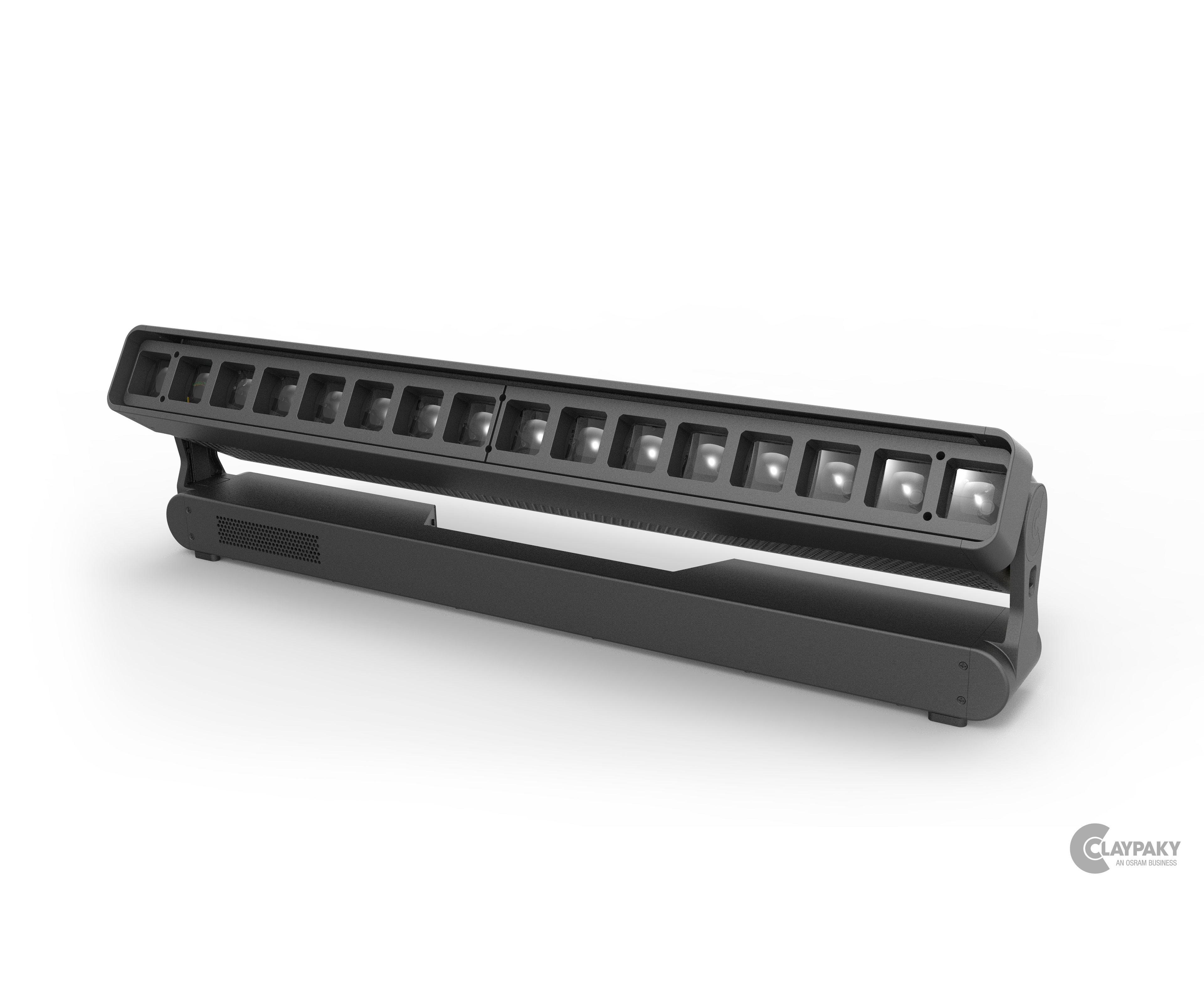

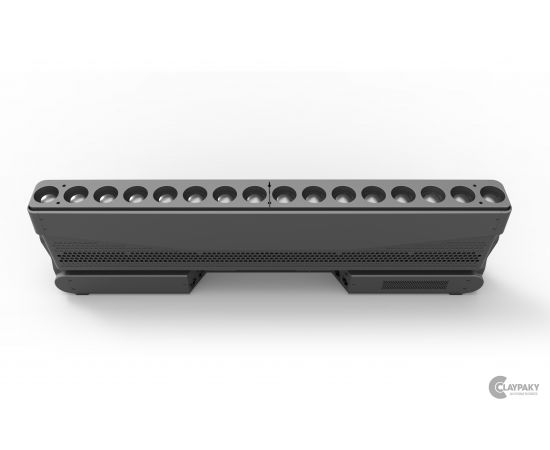

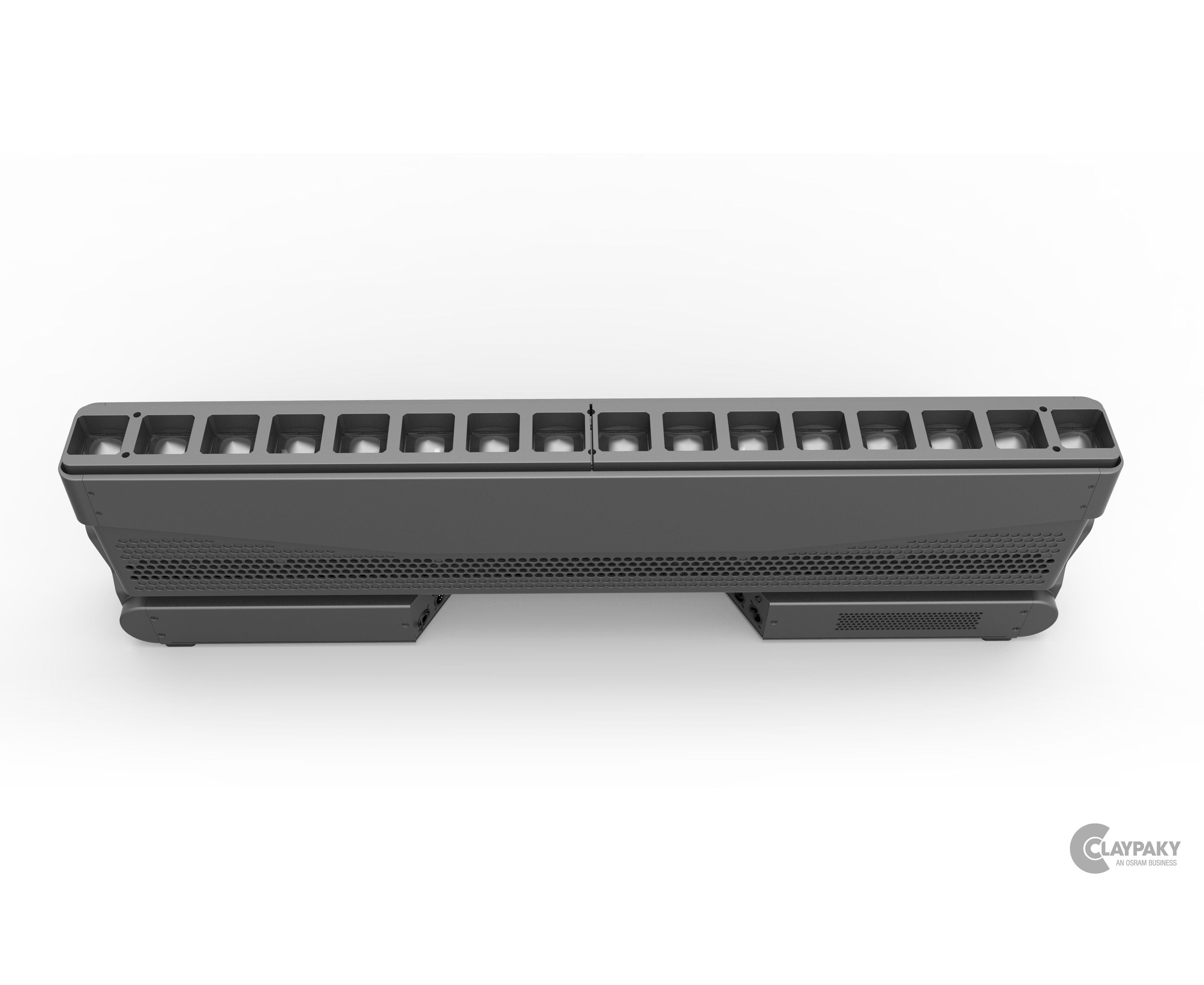

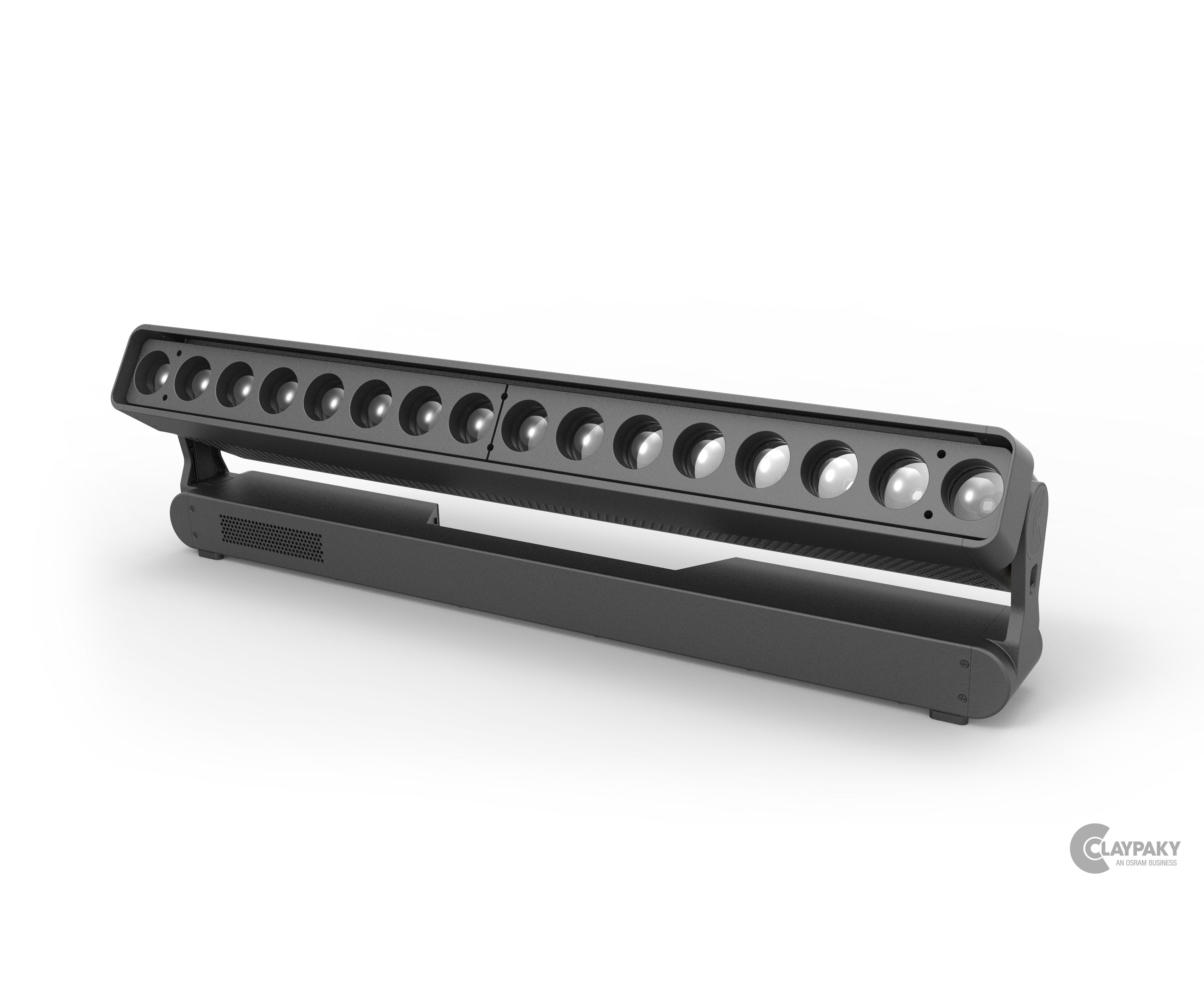

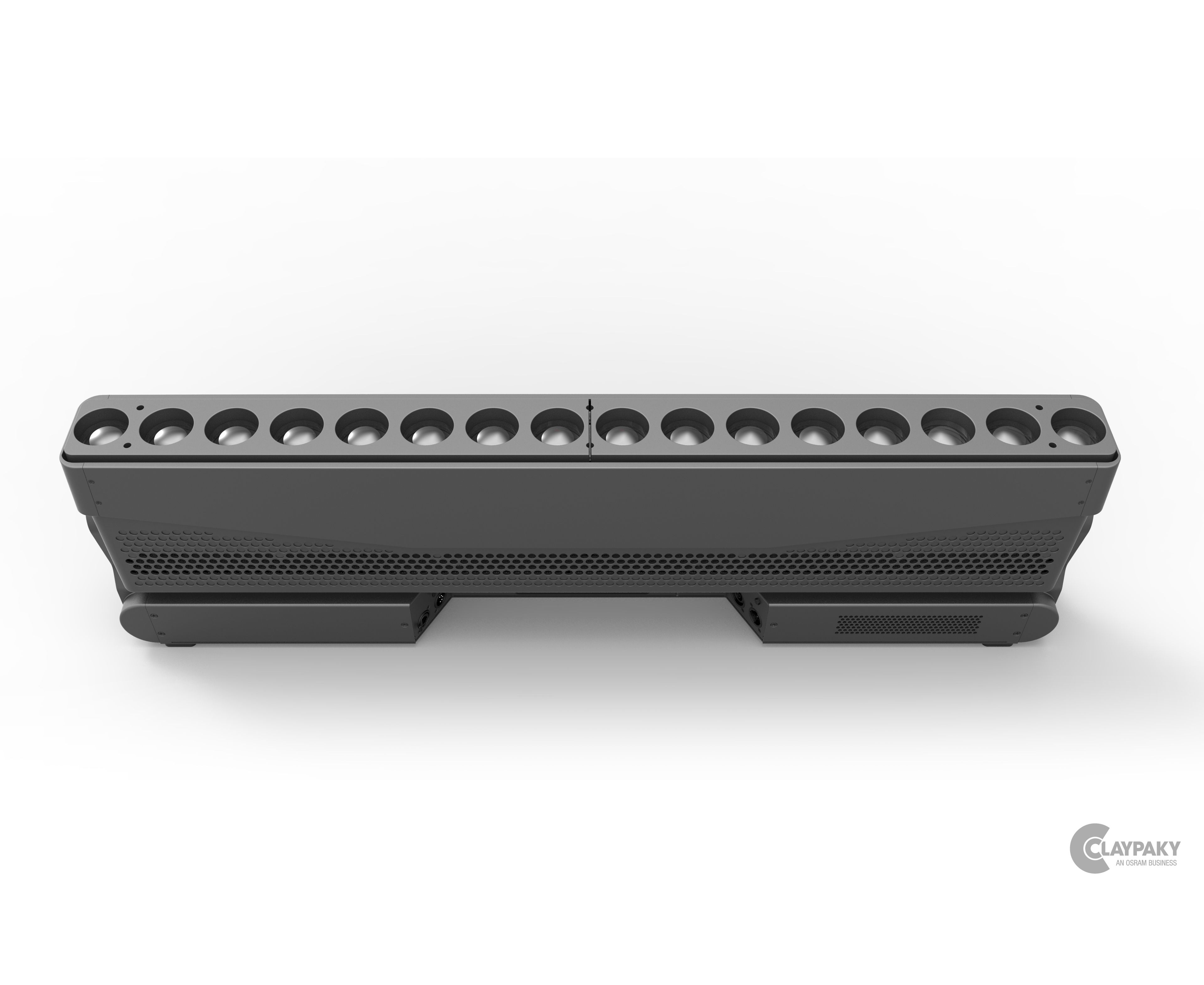

• Two versions are available: with round-sized lenses (Tambora Batten Round) or with square-sized lenses (Tambora Batten Square)
POWER SUPPLIES
Operating Voltage: 100-240V, 50/60 Hz - In/Out Max 4(2) fixtures @ 200-240Vac (@ 100-120Vac)).
- Power Supply: Electronic auto range with active PFC
- Max Power consumption: 660VA
INPUT POWER
660 VA @230Vac - 50Hz.
LIGHT SOURCE
16x 40W RGBW Osram LEDs.
Colour Temperature: 8,000K to 2,500K
LED life expectancy: 50,000Hrs L70*
OPTICS
Zoom range: 4°- 50°
8,500 Lumen Output
16x Front lenses diameter: 52mm
High efficiency optical system
EFFECTS SECTION
Individual LED control for each parameter.
White CT emulation 2500-8000K.
Beam edge softening control (in wash mode).
Exclusive parallel beam consisting of an array of individually controllable micro-beams.
RGBW color mixing system.
Shape effects.
16bit resolution with 5 different dimmer curves.
Electronic strobe/stop from 1 to 25 f/sec.
Pixel mapping control.
Unique “three layers” selection (in Advanced mode).
CONTROL AND PROGRAMMING
Personalities: 5 modes with 13/17/27/29/35 control channels – Pixel Engine: 48 and 64 channels.
Control Protocol: DMX, Art-Net, RDM.
DMX and RDM connectors: Locking 5 pin XLR IN/OUT.
Ethernet port: RJ45 IN.
Power connector: PowerCon True1 IN/OUT.
Built In Web Server.
BODY
Aluminum and steel structure with plastic covers.
IP20 Protection rate
MOVING BODY
Tilt: 220° @ 16bit
Fast/Normal speed selectable by Function channel
Mechanical Tilt lock for safe transportation and maintenance
Noise Level:
40.5 dBA – Auto mode
43.5 dBA – Constant mode
36.7 dBA – SLN mode
36.2 dBA – Theatre mode
ELECTRONICS
Long life self-charging battery.
Firmware upload from another fixture.
Firmware Upgrade via Web Server
Diagnostic.
DMX monitoring.
Remote access through RDM
Display Graphic LCD backlit b/w Display.
SAFETY DEVICES
Minimum distance of illuminated objects 0.5 meters (20”).
Minimum distance from flammable materials 0.2 meters (8”).
Max ambient temperature 45°C (113°F).
Min ambient temperature -10°C (14°F).
Max temperature of the external surface 90°C (194°F).
Total heat dissipation: 2220 BTU/hr ±10% / 2340 kJ/hr ±10%
10AT Fuse, 250Vac
Thermally protected power supply (overheating and cooling failure)..
Forced ventilation with axial fans.
WORKING POSITION
Working in any position.
Hanging system: with fast-lock omega clamps (1/4 turn) on the base.
Optional safety chain.
CE MARKING
In conformity with the European Directives:
2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD).
2014/30/EU - Electromagnetic Compatibility (EMC).
2011/65/EU - Restriction of the use of certain hazardous substances (RoHS).
2009/125/EC - EcoDesign requirements for Energy-related Products (ErP).
ETL
This product is available, on demand, with cETLus Listed Mark.
WEIGHT
Weight: 15.5Kg (34.2 lbs)
Dimensions: 105 x 1000 x 288 mm with vertical head (4.13 x 39.4 x 11.3 in)
