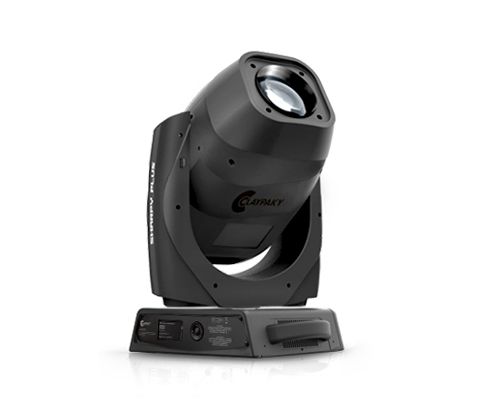

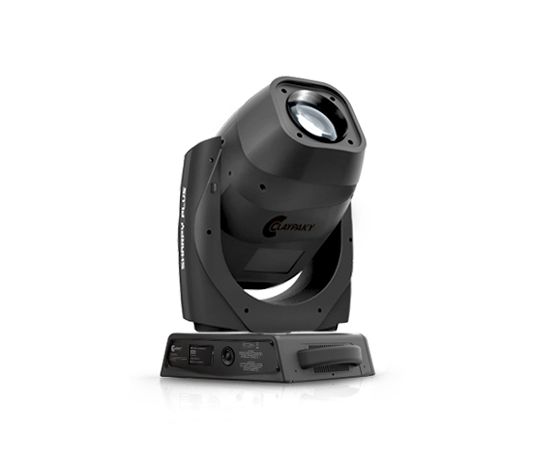

Clay Paky Sharpy Plus

Sharpy Plus

SHARPY PLUS is the first true 100% HYBRID unit, able to be a perfect beam light and a perfect spotlight.  It is suitable for every occasion, with an extraordinary luminous efficiency which ensures substantial savings through lower power consumption.

The SHARPY PLUS fits a totally new, top-ranking-performance Osram Sirius HRI 330W X8 lamp and weighs only 23 kg (50.7 lbs). All its functions are extremely quick. Its body is slightly larger than the Sharpy's, to house a high quality optical unit with a zoom that ranges from 3° to 36°. Its minimum beam angle of 3° makes it possible to generate the narrow parallel light beams essential for beam light mode. Its wide zoom range also allows large beam angles, which makes the SHARPY PLUS a perfect spotlight for all purposes.

The SHARPY PLUS has two independent operating modes. In BEAM mode, the aerial effects are enhanced by the way the Sirius lamp is made. It is capable of extraordinary power output (over 300,000 lux at 10mt distance), which the optical unit enhances through a marked hot spot. In SPOT mode, the light is diffused in a more even way which means visual effects can be projected with excellent uniformity.

Its 3° to 36° (1:9) zoom covers the entire range linearly, both in spot mode and in beam mode. This feature makes the SHARPY PLUS unique on the market.

The SHARPY PLUS has no match. With its wide range of effects and high light output, it beats all the lights in the same category and comes very close to those of higher wattages, but with a much more appealing price tag.

Room for pictures and videos: https://sharpyplus.claypaky.com

• Source: 330W X8 HRI Sirius Osram arc lamp
• 100% Hybrid projector
• Two modes: BEAM and SPOT
• 3°- 36° linear zoom
• 3° narrow beam angle
• Six beam reducers (down to 0.5°)
• 300,000 Lux at 10 m (much more than Sharpy)
• CMY colour mixing
• 15 colours on 3 wheels
• 2 CTO filters
• Rotating Gobo Wheel: 8 interchangeable glass gobos
• Static Gobo Wheel: 18 static gobos
• Rotating 4-facet prism on dedicated channel
• Rotating 8-facet prism on dedicated channel
• Dynamic Animation Wheel
• Linear soft edge frost filter
• Dimmer and stop/strobe
• Dense, Sharp, Parallel Light Beams
• Extremely quick movements
• Excellent visual effect projections
• Wide and sharp aerial effects

ELECTRONICS

Long life self-charging buffer battery
Function reset from the lighting desk
“AUTOTEST” function from menu
Electronic monitoring with status error
Cooling system monitoring
DMX level monitoring on all channels
Internal data transmission diagnostics
Firmware Upgrade via Web Server
Firmware upload from another fixture
Protocols/Functions: RDM, Web Server

SAFETY DEVICES

Minimum distance of illuminated objects 8 meters
Minimum distance from flammable materials 0.2 meters
Max ambient temperature 40°C (104°F)
Max temperature of the external surface 90°C (194°F)
Automatic break in power supply in case of overheating
Forced ventilation with axial fans

WORKING POSITION

Working in any position
Hanging system: with fast-lock omega clamps (1/4 turn) on the base

CE MARKING

In conformity with the European Directives:
• 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
• 2014/30/EU - Electromagnetic Compatibility (EMC)
• 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)
• 2009/125/EC - EcoDesign requirements for Energy-related Products (ErP)

WEIGHT

23 Kg (50.7 lbs)
