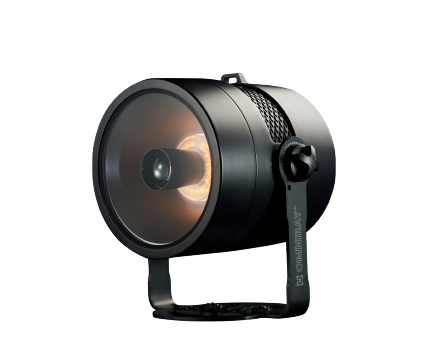

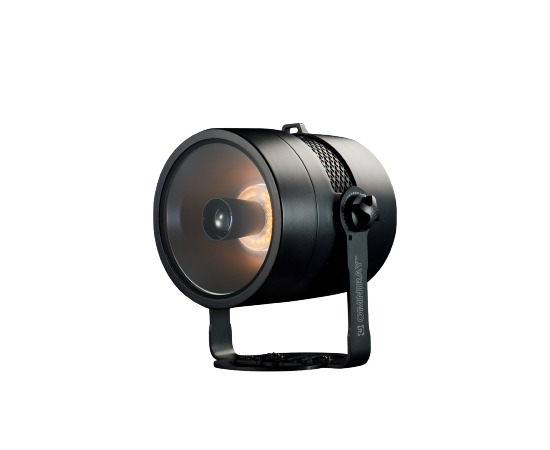

Portman OMNIRAY™
Specification
OMNIRAY™
Weight (fixture only)
14 kg
30.87 lbs
protection rating
IP65
INPUT VOLTAGE
100-240 V 50/60 Hz
Max power consumption
500 W
Power connectors
AC power in/thru: powerCON TRUE1
Light sources
main source
narrow source
power
440 W RGBWLA
40 W RGBW
beam angle
85°
3.8°
colour temperature
2000 – 6500 K
6000 K
CRI
> 95 (calibrated mode)
Control Connectors
DMX/RDM data in/thru: 5-pin XLR
Firmware from flash drive: USB A
Control features
8 DMX modes (8-28 channels)
RDM
macros
CRMX (optional module)
user interface
OLED touch display
Highlighted buttons
Colour Feedback System™ – fixture’s auto information status
CERTIFICATES
CE
ROHS
ETL
UL
UKCA
INTELECTUAL PROTECTION
design patent
utility patent (pending)
trademark
WARRANTY
24 m
What’s in the box
Fixture
AC power cord (PowerCon TRUE 1/no AC plug)
User manual
OMNICLE™ – decorative magnetic cover
Additional accessories
Rigging:
omega bracket with 1/4 fast locks
Optics – magnetic:
diffuser (avg)
diffuser (strong)
elliptical diffuser (10×40)
elliptical diffuser (10×60)
Fresnel lens
Control features:
CRMX
Packing:
flight case
OMNIRAY™ - The world’s first Hybrid Utility Fixture
