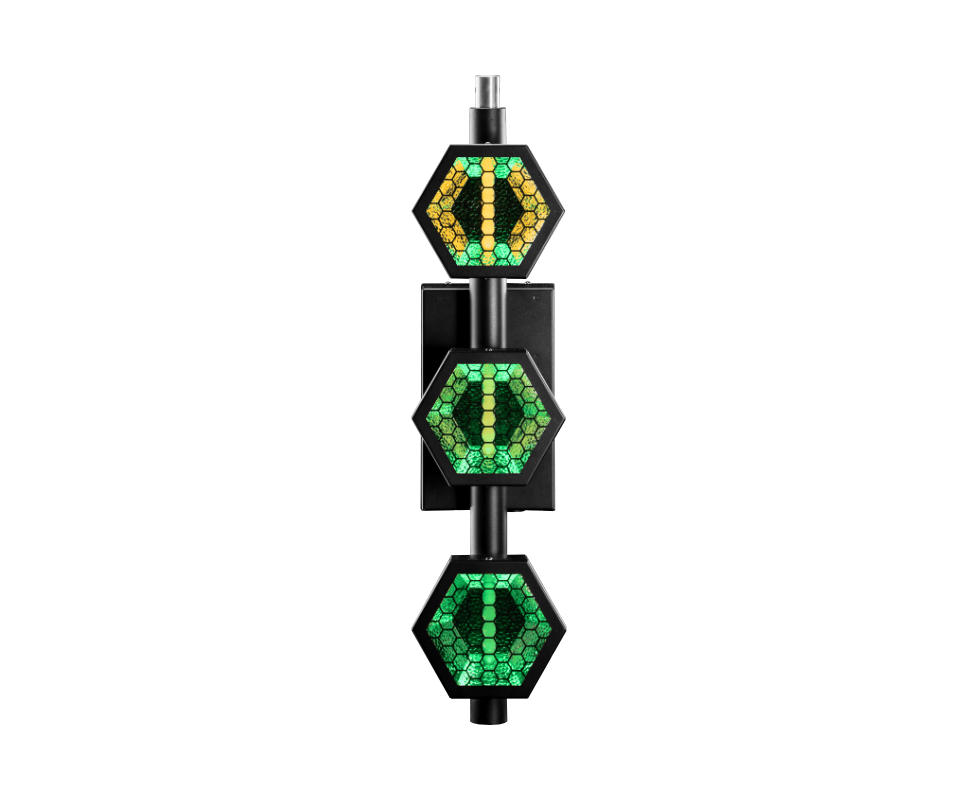

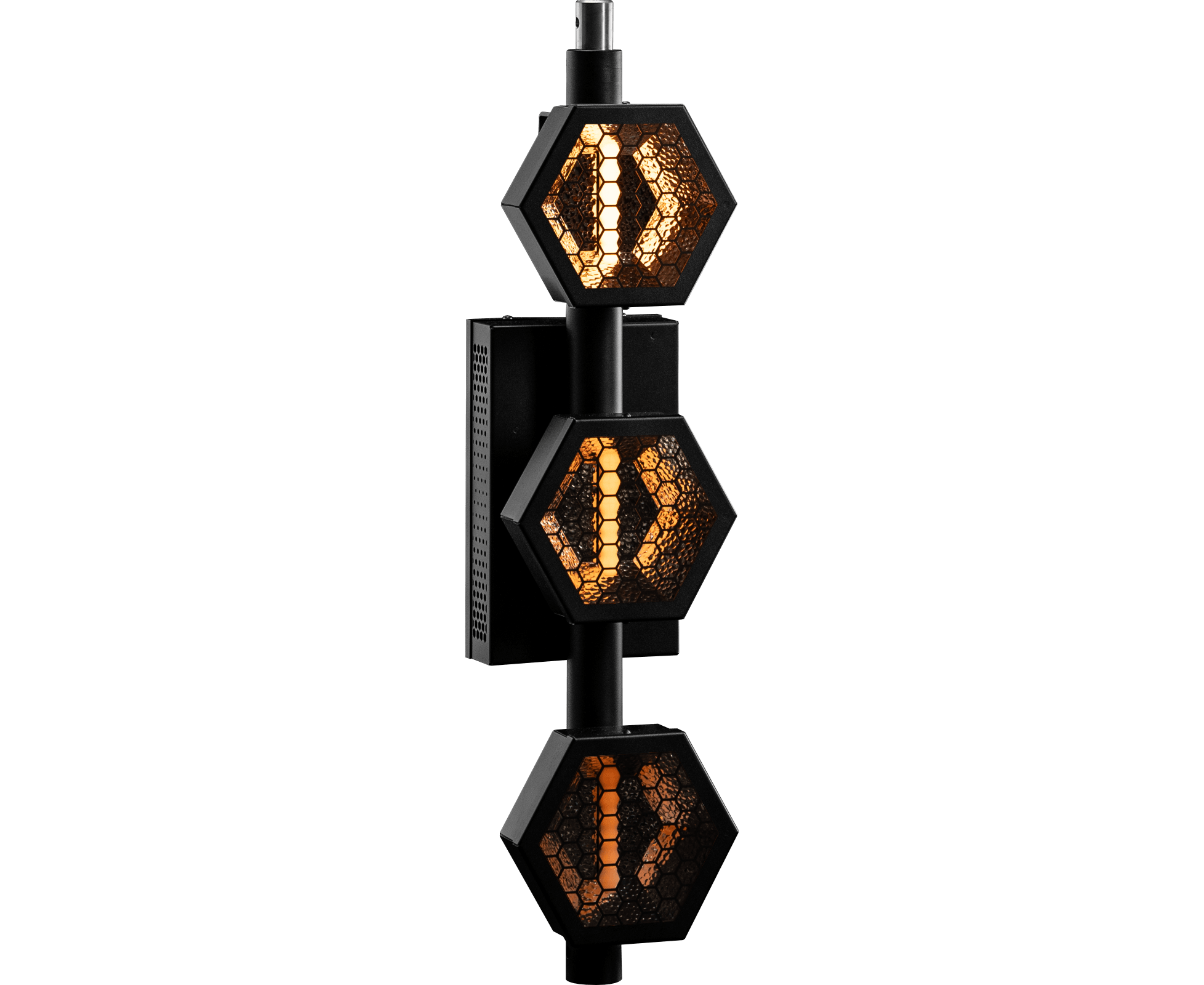

Portman EVO ELEMENT™
3 x portman haloLED™
• 3x 60W
• true tungsten emulation
• smooth dimming
• warm on lower values
• bright and blinding on higher values
3 x RGBW glow
• 3x 12W
• saturated colours
• smooth dimming and colour mixing
• separate control
Hi-class electronics
• 6 DMX modes
• Colour Feedback System™
• RDM
• W-DMX option
• macros
• power through
E-CONN™ connector (optional)
• 4-way connector
• adjustable arms
• solid connection
• perfect shapes
| Dimensions | 866 x 205 x 189mm (34.09 x 8.07 x 7.44in) |
|---|---|
| Weight | 5,2kg (11,46lbs) |
| Rigging | - 2 x 12 mm (1/2 in) holes for clamp on back - base (not included) - hanging adaptor (included) with 12 mm (1/2 in) hole for clamp |
| Mounting position | Any |
| Input voltage | 100-240V 50Hz/60Hz |
| Power consumption | max 240W |
| Power connector | PowerCon TRUE1 power through |
| Control connector | - 5 PIN XLR (both: in & out) |
| Light sources | - 3 x haloLED™ (3x60W) - 3 x RGBW glow (3x12W) |
| Color temperature | - 1600-3200K - RGBW |
| CRI | >90 |
| Optics | - High reflective hammered reflector - Opal diffuser |
| Control features | - 6 DMX modes (9-39 DMX channels) - RDM - macros - W-DMX (optional module) |
| User interface | - High-contrast LCD display - Highlighted buttons |
| Warranty | 24 months |
| IP rating | IP20 |
| What's in the box | - Fixture - 2m power cord (PowerCon TRUE 1<-> no plug) - hanging adapter (also for tripod) - User manual |
| P2 EVO™ compatibility | - Height: 2x EVO ELEMENT™ = 1x P2 EVO™ - the same pixels' sizes - the same light sources - the same accessories |
| Additional accessories | - E-CONN™ (4-way connector. Each 30° adjustable arms) - P2 EVO base - P2 EVO height adapter - WDMX module - male-male connector - flight case |
Portman® EVO ELEMENT™
