ChamSys MagicQ MQ500 Stadium Wing

ChamSys MagicQ MQ500 Stadium Wing

The MagicQ Stadium Wing features 30 Playbacks and 4 Execute Encoders. The 30 Playbacks are pageable separately as 15 Fader Playbacks and 15 Execute Playbacks. All Playbacks feature full electronic legending on screen.

The 4 Execute Encoders are multi purpose and can be assigned functions from the Execute and other MagicQ Windows to enhance playback performance.

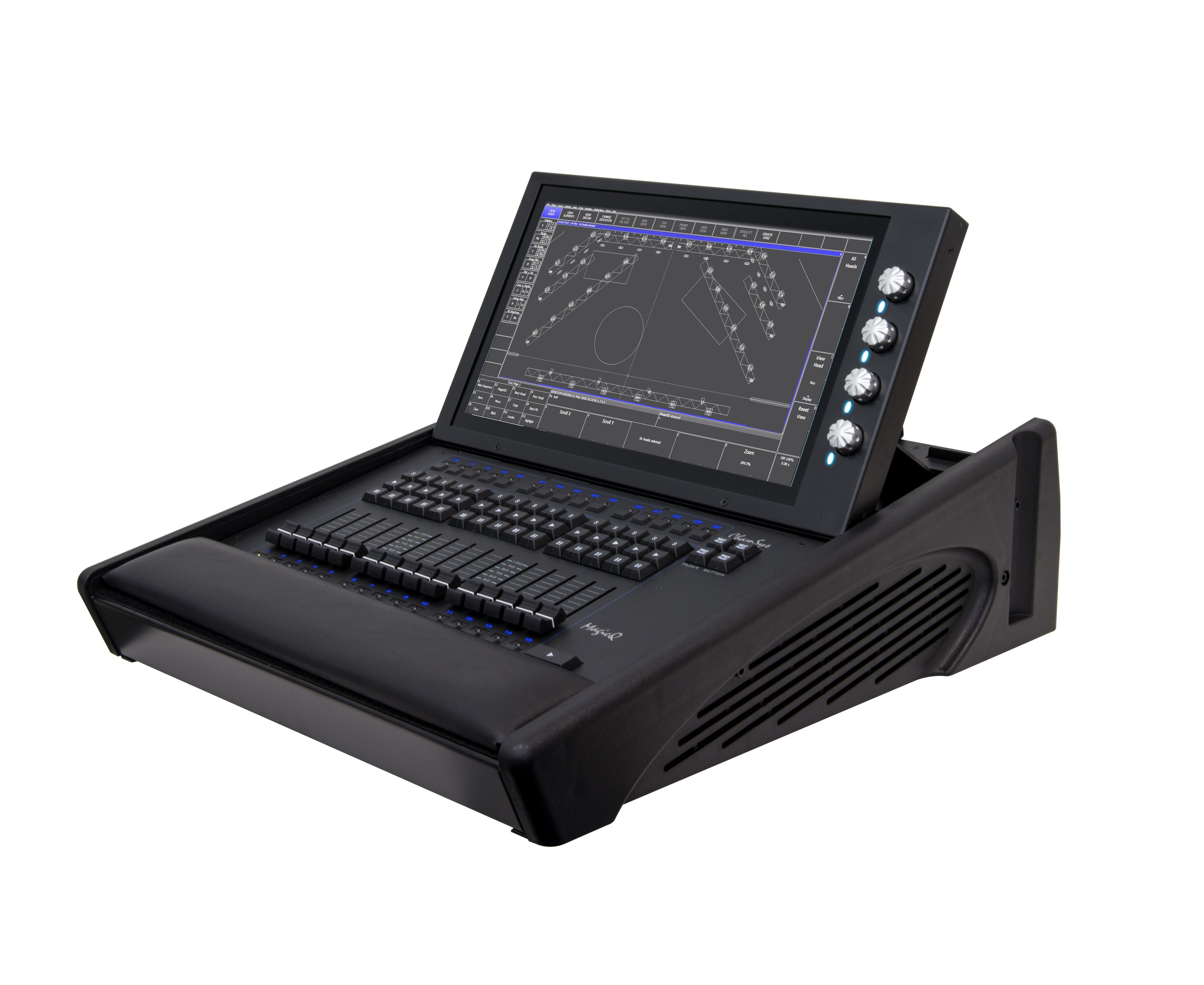

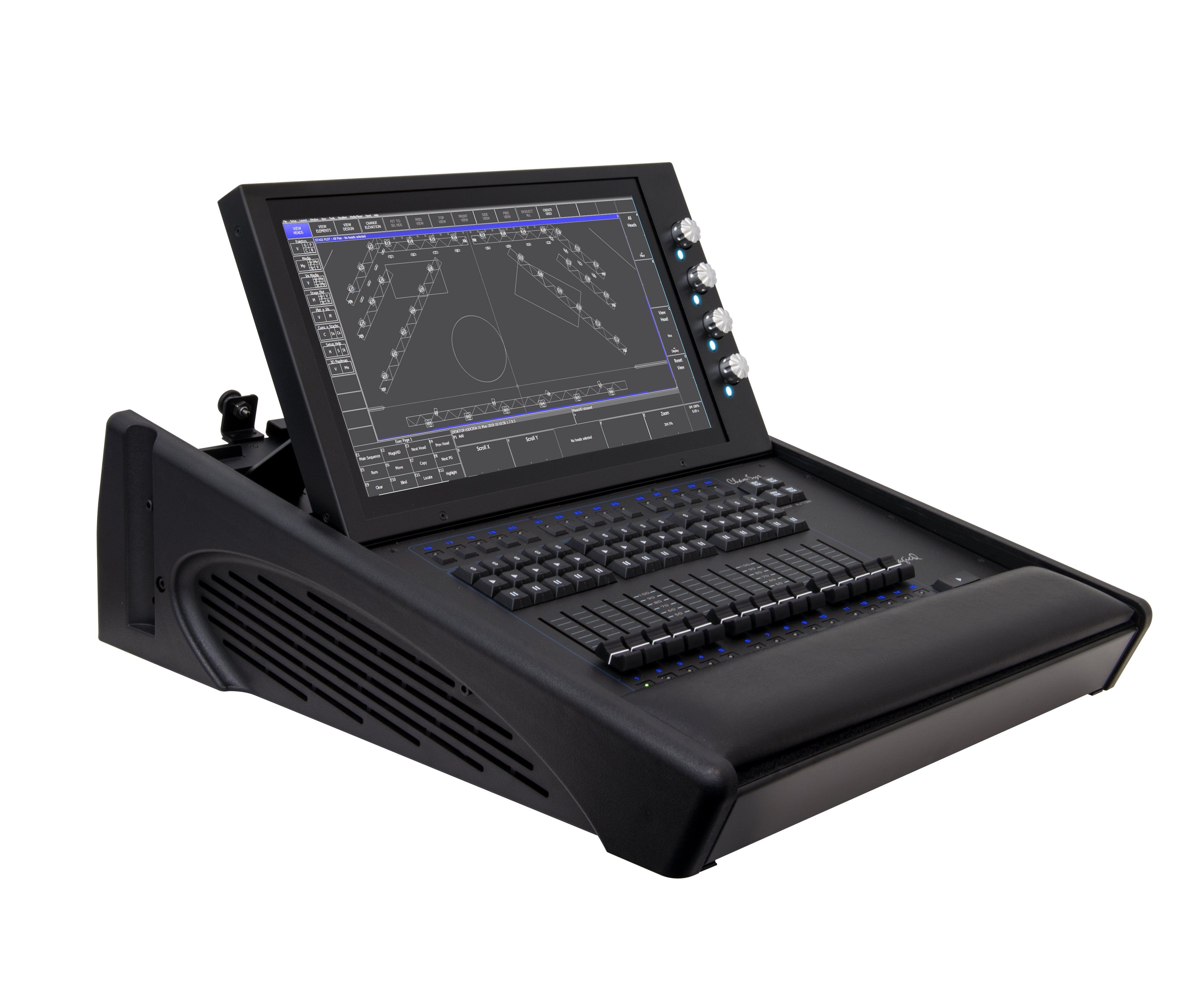

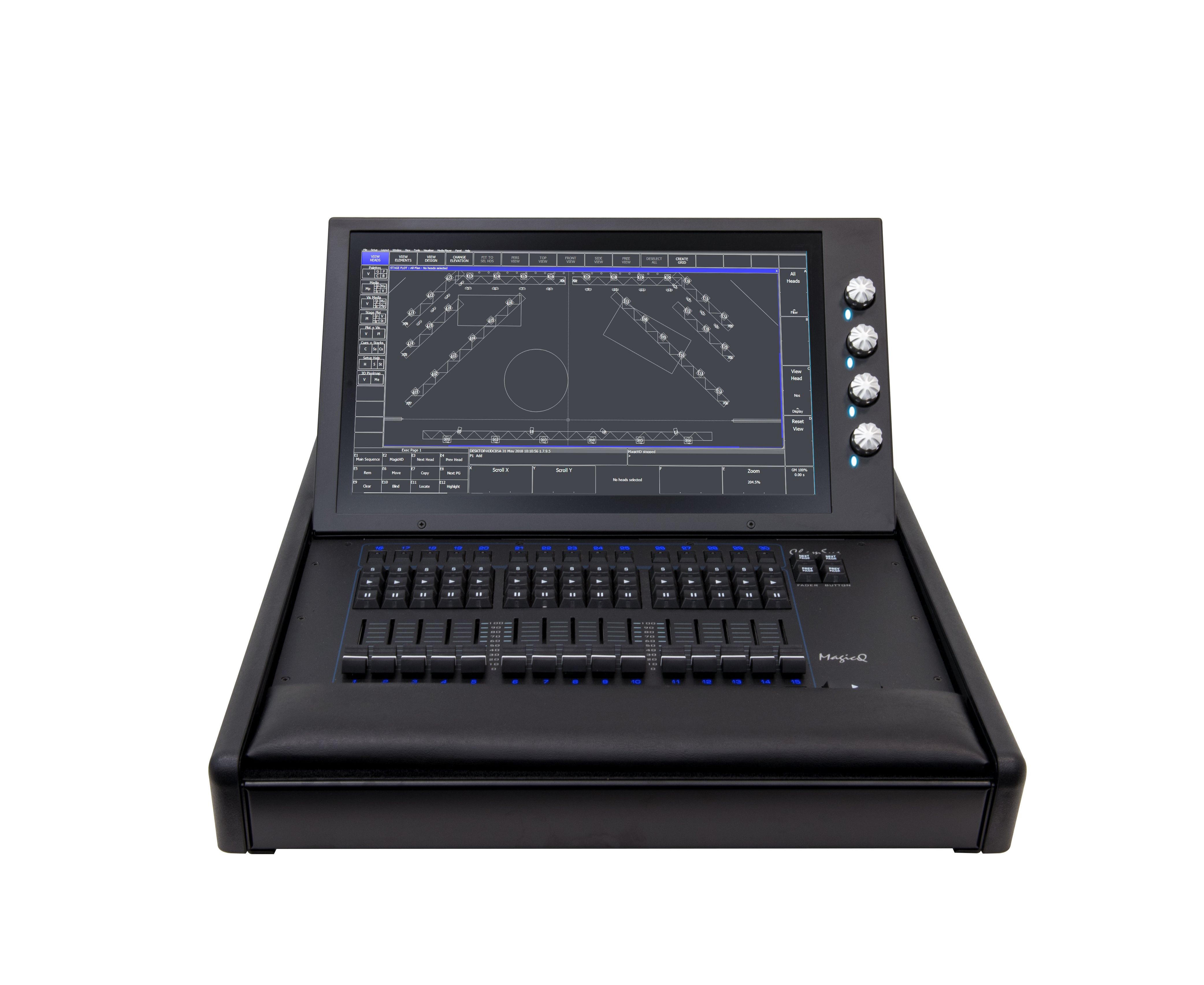

The MagicQ Stadium Wing incorporates a full HD multi touch display with adjustable viewing angle and gesture support.  The display connects directly to DVI video output from a MagicQ MQ500 or from a MagicQ MQ80 console using the DVI cable provided.  Any MagicQ Window can be transferred to the display on the Stadium Wing.

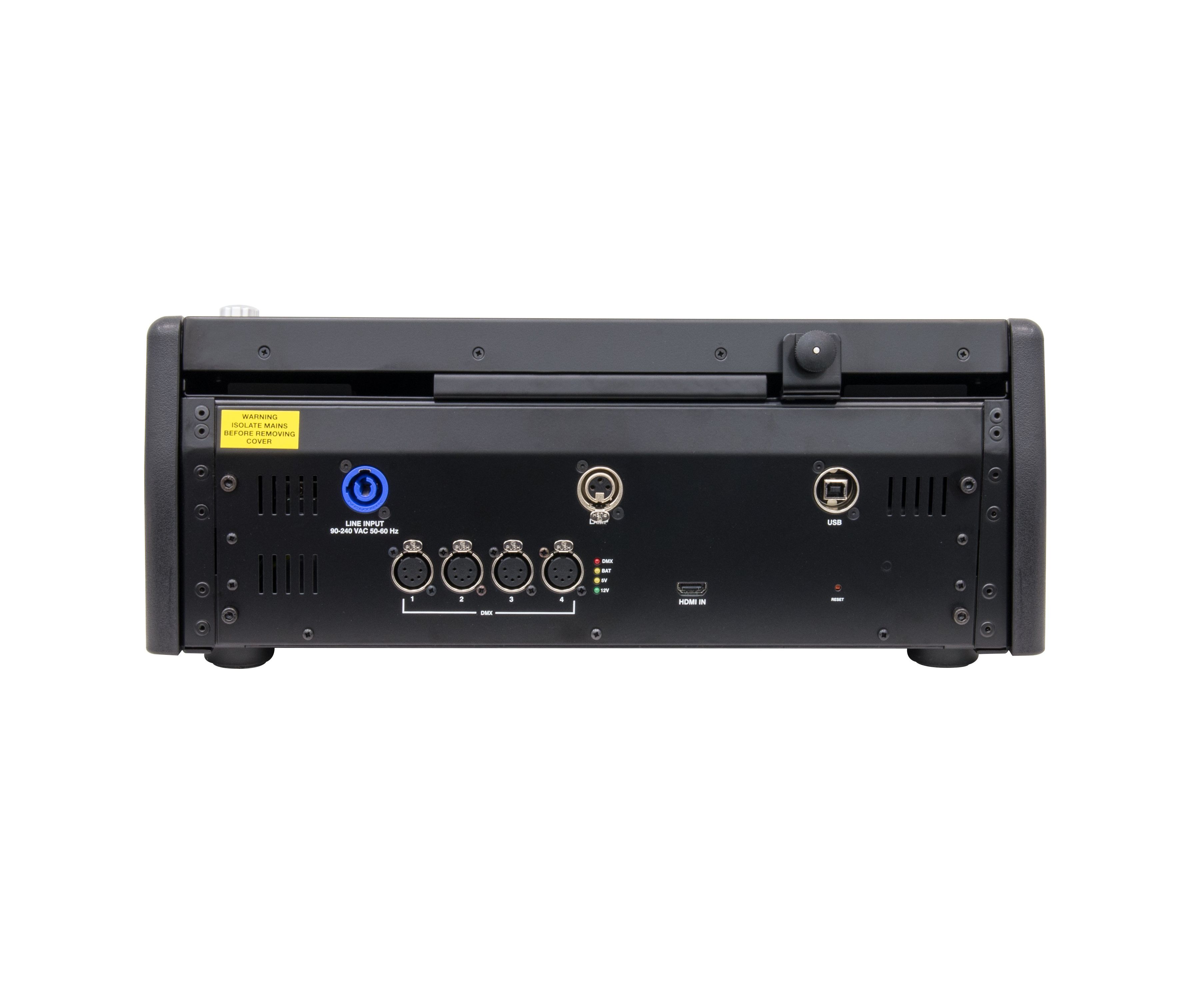

The MagicQ Stadium Wing also includes 4 DMX outputs to expand the DMX capabilities of the system and an inbuilt UPS for added security.
The MagicQ Stadium Wing conects to the MagicQ console via a locking Neutrik USB cable.

Designed and manufactured in the UK

Including:
Dual Colour Desk lamp
Illuminated soft buttons
Dust cover

Dimensions:
Width: 471mm
Depth: 587mm
Height: 85mm
