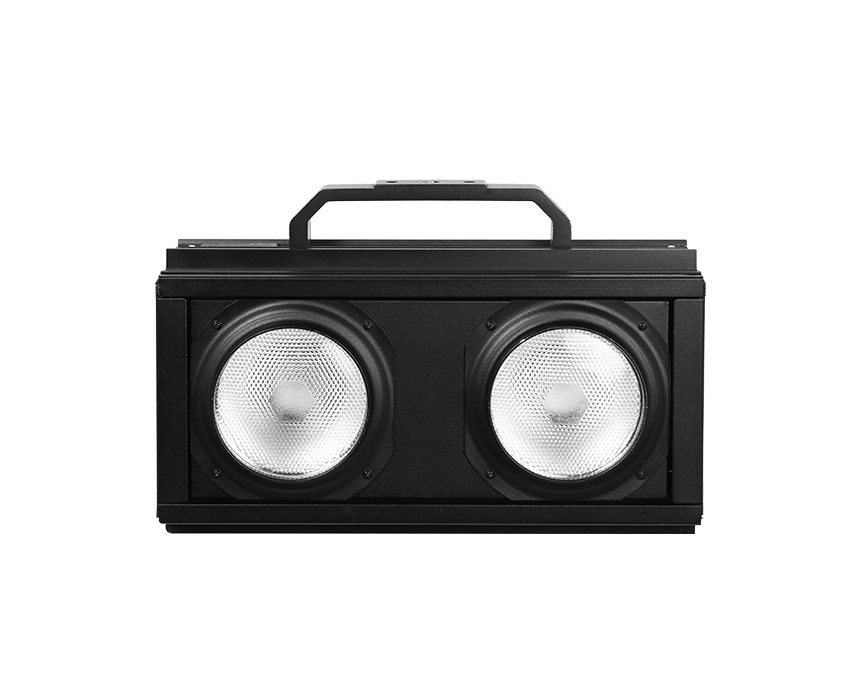

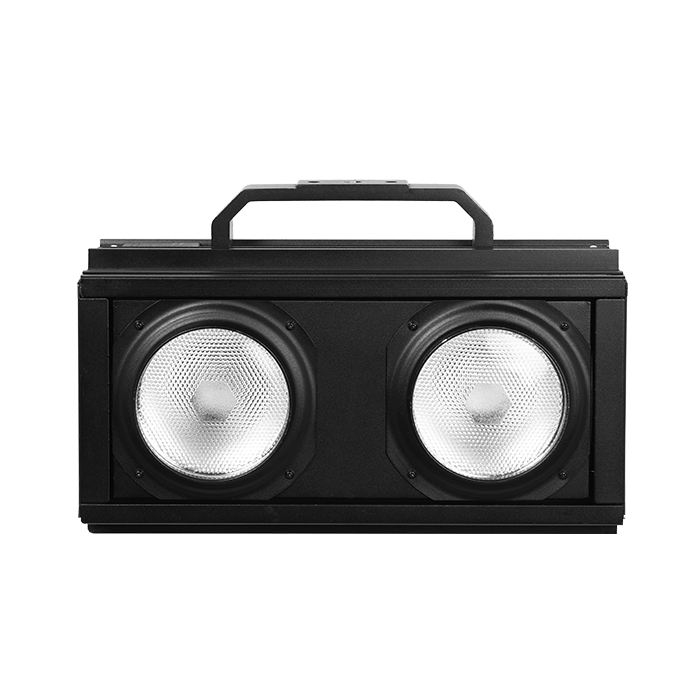

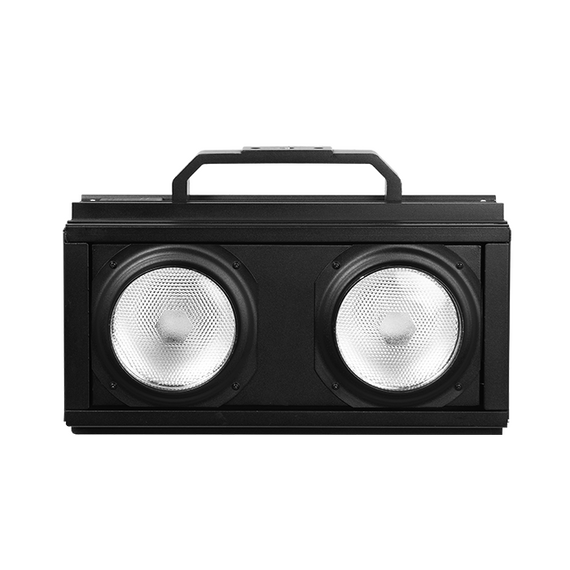

Luxibel B Blinded
B BLINDED
2x 110W LED Stage Blinder - Warm White with Amber Drift
The B BLINDED is the future of all blinders. A powerful blinder with a 2x 110W warm white LED engine, including tungsten emulation feature. The output can be compared to DWE 2x 650W but with many extra functionalities. No more dimmers, fewer cables, but more functions with faster installation and more creativity.
Furthermore, this versatile fixture is arrayable to make a 4, 6 or 8-lite blinder unit up to a 20-lite! Vertical or horizontal, it is up to your design!
- All weather use
- Extremely bright
- Strobe functions
- Refresh rate: 1.200 Hz
- DWE hot glow dimming below 10%
- Can be used for permanent lighting
- Arrayble portrait/landscape up to 10 units
- CE certified
PHYSICAL
- Dimensions (WxHxD) 400 x 220 x 205 mm
- Packaging dimensions (WxHxD) 510 x 320 x 300 mm
- Nett weight 6,2 kg
- Gross weight 7,2 kg
MOUNTING OPTIONS
- Hanging Dedicated hanging bracket with M12 holes | Different jointing options depending on the matrix build up
- Max. load per bracket 10 units
- Standing On chassis
- 2nd suspension / safety wire
- Different possibilities (depending on the mounting options) | Eye bolt for carabiner
CONTROL
- Menu control
- Via LED display with 4 buttons
- Control
- DMX512, manual
- Dimmer mode
- 0~100% - 8 or 16 bit mode
- In/Link
- XLR 5 pin
- DMX mode
- 1/2/4/6/8 channels
- Strobe
- Adjustable speed + random
OPTICAL
- LED Sources
- CREE LED
- Beam angle 50° (fixed)
- Light output 3465 lux @ 2m | 915 lux @ 4m | 457 lux @ 6m
- CRI 82
- Colour temperature 1.200K-2.700K in Tungsten mode
- Tungsten mode
- Amber is mixed at low light levels
- Colours
- Warm white + Amber
- Dim speed
- Fast, smooth or und
ELECTRICAL
- Fixture rated power 235W
- Input power AC 100V-240V ~ 50/60 Hz - Auto switching power supply
- LED engine 2 x 110W LED
- In/Link PowerCON TRUE1 - max link current 10A
- Refresh rate 1.200 Hz
ENVIRONMENTAL
- IP Rating IP4X
- Cooling Very low noise level | Temperature controlled fan
ACCESSORIES
- Power cable with bare ends Included
- Hanging bracket Included
- 4x Mounting pins on wire Included
- Big hanging bracket Optional
