Luminex GigaCore 16tf

The GigaCore 16tf is an up to 10 Gigabit Ethernet switch for professional touring applications in lighting, audio and videoand provides ruggedised connectivity at the front as well as at the rear of the rack to accomodate multiple edge devices in a flexible way with several fiber and copper connector options from factory.

Key Features

• Most suitable applications: Touring applications
• PoE: PoE++ Optional
• RLinkX (Link redundancy): Yes
• Groups (VLAN segmentation): Yes
• MultiLinkX (Link aggregation): Yes
• Profile manager: Yes
• Memory: Flash 1Gb RAM – 8Mb NOR flash 4Gb EMMC storage
• MAC address table: 16384 entries
• Address learning / Aging: Self learning, Auto aging
• Switching throughput 64 Byte: 77381Mpps
• Switching capacity: 104Gbps
• Jumbo frames: MTU up to 12000
• IGMP support: Yes (V1/V2/V3)
• IGMP snooping: Yes, enabled by default
• Port sensing: Auto negotiation
• Auto crossover: MDI / MDIX
• Auto sensing: Full or Half Duplex (Gigabit is Full Duplex)

Connectivity

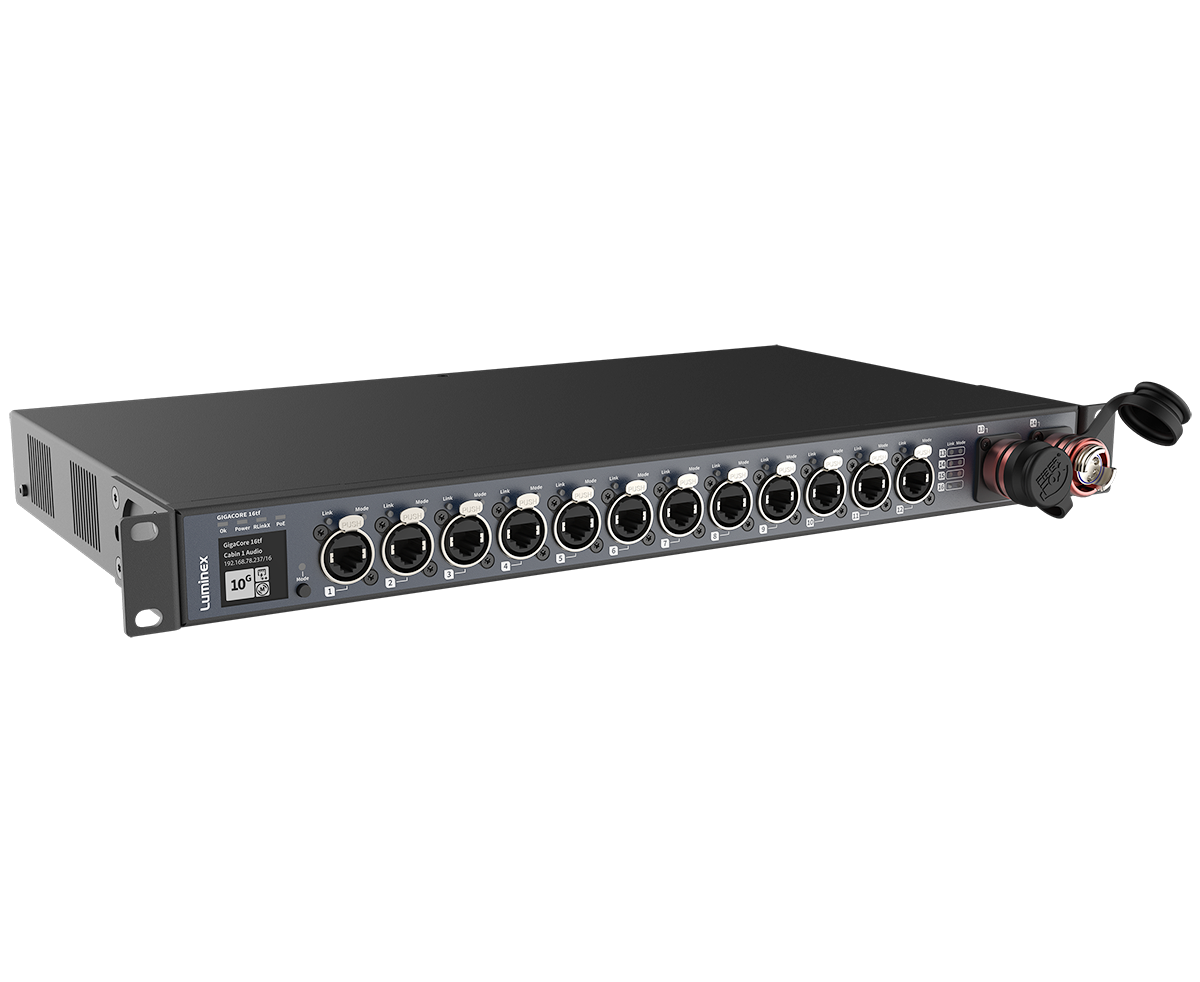

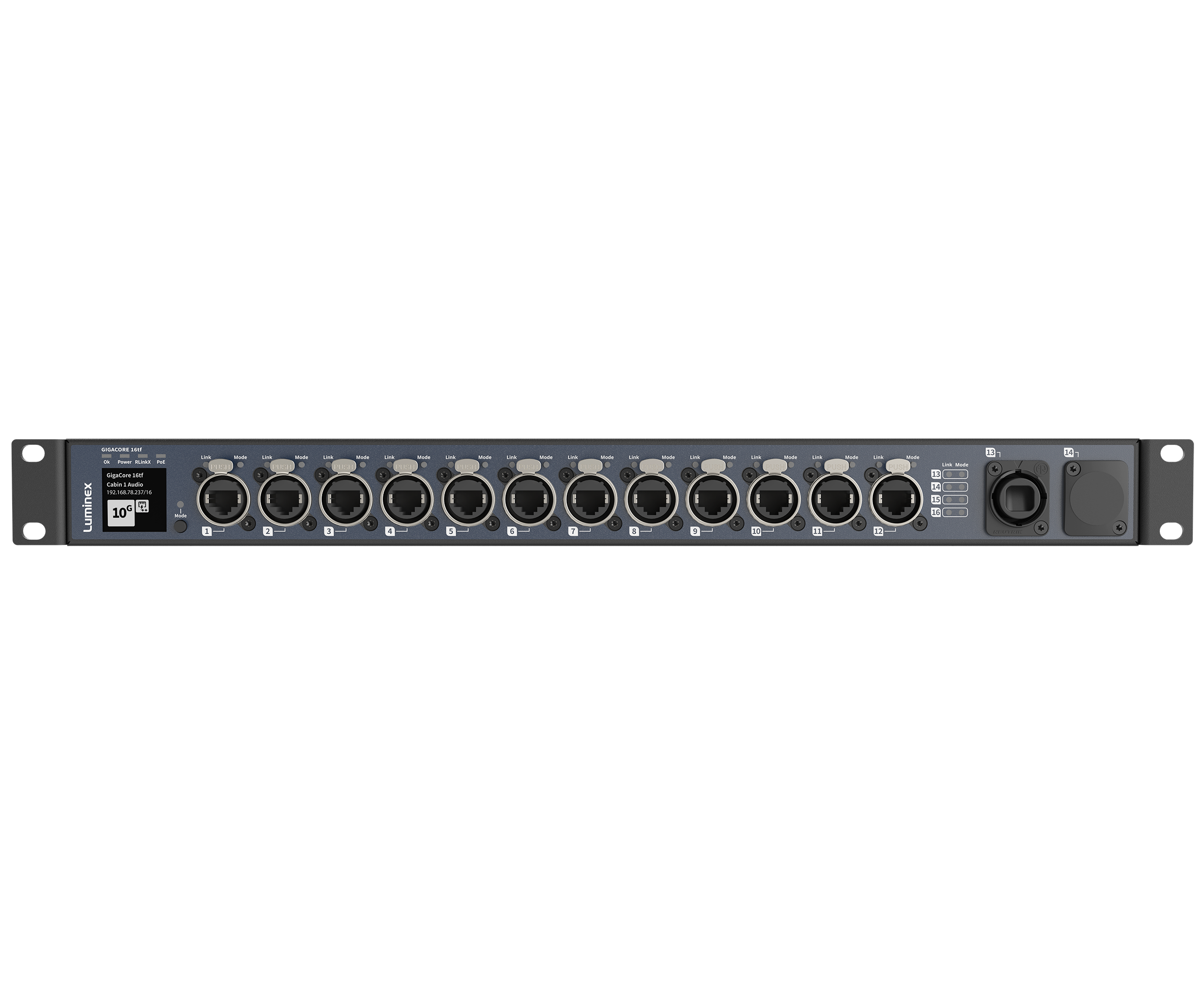

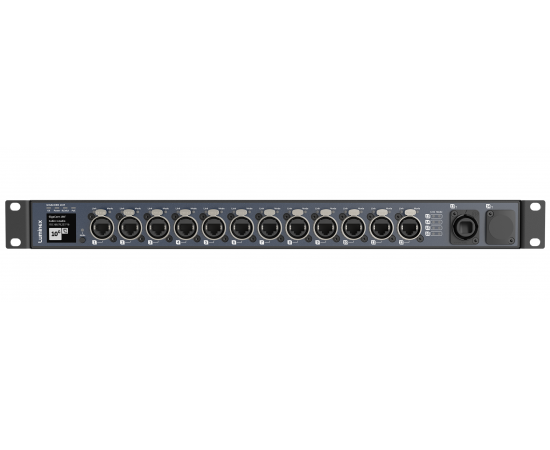

• Ethernet connectivity: 12x Gigabit (10/100/1000 BASE-T) EtherCon connectors on front panel

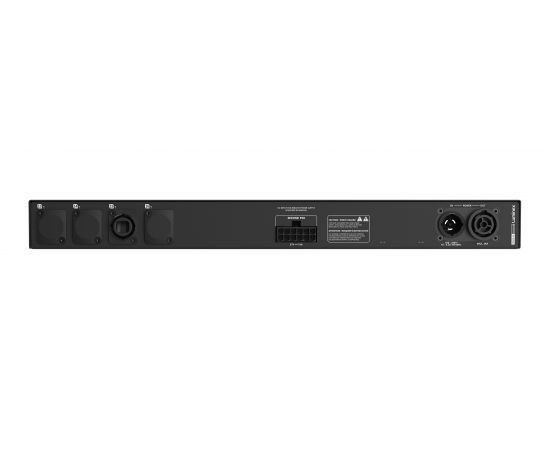

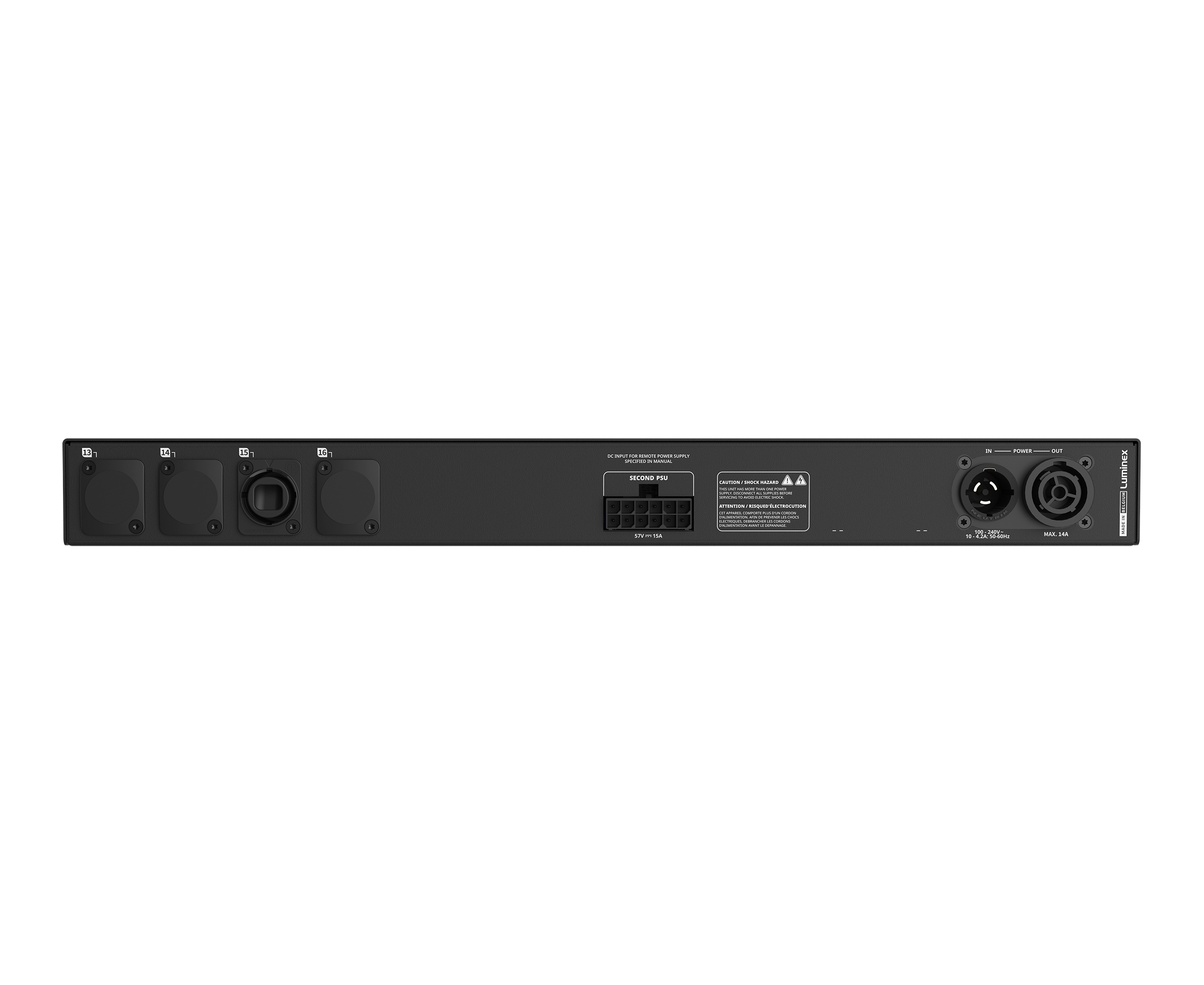

• Fiber connectivity: (2x 10 Gbps / 1 Gbps rugged fiber connectors on front panel, independent from other ports AND 2x 10 Gbps / 1 Gbps rugged fiber connectors on rear panel, independent from other ports) OR 4x 10 Gbps / 1 Gbps rugged fiber connectors on rear panel, independent from other ports *Option to install copper modules and connectors instead of fiber
• Ethernet port speed: 1Gbps
• Serial: No

Power

• Power connectivity: 1 x PowerCON True 1 in/out
• Power input: 100-240VAC, 50-60Hz
• Power consumption: Maximum 50W - Maximum 1050W (Depending on PoE and PSU configuration)
• Fuse: NA
• Backup power input: Yes (PoE models only)
• Backup PoE power input: Yes
• PoE: PoE++ Optional

Protocols

• Supported protocols: Dante©, RAVENNA/AES67©, Ethersound©, Q-SYS/Q-LAN, sACN, ArtNet, MANet, HogNet, RTTrPL (BlackTraX), IPMX, NDI, IEEE 802.1p CoS (Class of Service), DiffServ (DSCP), PoE (802.3af) (optional), PoE+ (optional), PoE++ (802.3bt) (optional), IEEE 1588 PTP V2, AVB/MILAN, IEEE 802.1as (gPTP) and more...
• Sound protocol compliance: Yes (low jitter)
• Ethernet compliance: IEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.3x Flow Control, IEEE 802.3ab Gigabit Ethernet, IEEE 802.3af PoE(optional), IEEE 802.3at PoE+(optional), IEEE 802.3bt PoE++ 90W(optional), IEEE 802.1p CoS, IEEE 802.1d Spanning Tree, IEEE 802.1w Rapid Spanning Tree, EEE 802.1s Multiple Spanning Tree, IEEE 802.1Q VLAN, IEEE 802.1ab LLDP, IEEE 1588-2008 PtPv2, IEEE 802.1 BA-2011 AVB, IETF RFC2710, IETF RFC3810

Configuration

• Display and jog: No
• NFC:
• Configuration: Through the built-in web server, through front panel LCD & Jog, Network wide configuration through Araneo software
• Status LEDs:
  • Global status LEDs: Device, power, PoE power and mode
  • Port status LEDs: PoE, groups, link/activity and port speed
  • Dark mode available
• Colored RGB LEDs: Yes

Physical

• Mounting: Rack
• Enclosure: Robust metal housing
• Dimensions (W x D x H): 482 x 204,1 x 44 mm (19" x 8.03" x 1,73")
• Weight: 4kg (device only) 4.6kg (packaged)
• Packaging: 550 mm x 335mm x 68 mm
• Environment:
  • Operating temperature: 0 to +50°C (0 to +40°C - with RPSU connected)
  • Storage temperature: -40 to +70 °C
  • Humidity (non condensing): 5 to 95% RH
• Ingress Protection:
• Noise level @1m: TBC
• BTU: TBC
• Certificates/Approvals: cSGSus Mark (UL), CE Mark, UKCA Mark, CB certificate, RoHS, AVB/MILAN
• Standards: IEC 62368-1, UL 62368-1, CAN/CSA C22.2 No. 62368-1, EN 62368-1, FCC Part 15 CFR 47, CAN/ICES-003, EN 55032, EN 55024

Product codes

• Product codes:
  • 10Gb models:
  • LU 01 00100-10G-ETC/ETC/0/0/ETC/ETC / GigaCore 16tf 10G ETC/ETC/0/0/ETC/ETC
  • LU 01 00100-10G-POE-ETC/ETC/0/0/ETC/ETC / GigaCore 16tf 10G POE ETC/ETC/0/0/ETC/ETC
  • LU 01 00100-10G-NDM/NDM/0/0/NDM/NDM / GigaCore 16tf 10G NDM/NDM/0/0/NDM/NDM
  • LU 01 00100-10G-POE-NDM/NDM/0/0/NDM/NDM / GigaCore 16tf 10G POE NDM/NDM/0/0/NDM/NDM
  • LU 01 00100-10G-NDS/NDS/0/0/NDS/NDS / GigaCore 16tf 10G NDS/NDS/0/0/NDS/NDS
  • LU 01 00100-10G-POE-NDS/NDS/0/0/NDS/NDS / GigaCore 16tf 10G POE NDS/NDS/0/0/NDS/NDS
  • LU 01 00100-10G-NQM/NQM/0/0/NQM/NQM / GigaCore 16tf 10G NQM/NQM/0/0/NQM/NQM
  • LU 01 00100-10G-POE-NQM/NQM/0/0/NQM/NQM / GigaCore 16tf 10G POE NQM/NQM/0/0/NQM/NQM
  • LU 01 00100-10G-NQS/NQS/0/0/NQS/NQS / GigaCore 16tf 10G NQS/NQS/0/0/NQS/NQS
  • LU 01 00100-10G-POE-NQS/NQS/0/0/NQS/NQS / GigaCore 16tf 10G POE NQS/NQS/0/0/NQS/NQS
  • LU 01 00100-10G-F2M/F2M/0/0/F2M/F2M / GigaCore 16tf 10G F2M/F2M/0/0/F2M/F2M
  • LU 01 00100-10G-POE-F2M/F2M/0/0/F2M/F2M / GigaCore 16tf 10G POE F2M/F2M/0/0/F2M/F2M
  • LU 01 00100-10G-F4M/F4M/0/0/F4M/F4M / GigaCore 16tf 10G F4M/F4M/0/0/F4M/F4M
  • LU 01 00100-10G-POE-F4M/F4M/0/0/F4M/F4M / GigaCore 16tf 10G POE F4M/F4M/0/0/F4M/F4M
  • LU 01 00100-10G-POE-ETC/ETC/0/0/NQM/NQM / GigaCore 16tf 10G POE ETC/ETC/0/0/NQM/NQM
  • 1Gb models:
  • LU 01 00100-1G-ETC/ETC/0/0/ETC/ETC / GigaCore 16tf 1G ETC/ETC/0/0/ETC/ETC
  • LU 01 00100-1G-POE-ETC/ETC/0/0/ETC/ETC / GigaCore 16tf 1G POE ETC/ETC/0/0/ETC/ETC
  • LU 01 00100-1G-NDM/NDM/0/0/NDM/NDM / GigaCore 16tf 1G NDM/NDM/0/0/NDM/NDM
  • LU 01 00100-1G-POE-NDM/NDM/0/0/NDM/NDM / GigaCore 16tf 1G POE NDM/NDM/0/0/NDM/NDM
  • LU 01 00100-1G-NDS/NDS/0/0/NDS/NDS / GigaCore 16tf 1G NDS/NDS/0/0/NDS/NDS
  • LU 01 00100-1G-POE-NDS/NDS/0/0/NDS/NDS / GigaCore 16tf 1G POE NDS/NDS/0/0/NDS/NDS
  • LU 01 00100-1G-NQM/NQM/0/0/NQM/NQM / GigaCore 16tf 1G NQM/NQM/0/0/NQM/NQM
  • LU 01 00100-1G-POE-NQM/NQM/0/0/NQM/NQM / GigaCore 16tf 1G POE NQM/NQM/0/0/NQM/NQM
  • LU 01 00100-1G-NQS/NQS/0/0/NQS/NQS / GigaCore 16tf 1G NQS/NQS/0/0/NQS/NQS
  • LU 01 00100-1G-POE-NQS/NQS/0/0/NQS/NQS / GigaCore 16tf 1G POE NQS/NQS/0/0/NQS/NQS
  • LU 01 00100-1G-F2M/F2M/0/0/F2M/F2M / GigaCore 16tf 1G F2M/F2M/0/0/F2M/F2M
  • LU 01 00100-1G-POE-F2M/F2M/0/0/F2M/F2M / GigaCore 16tf 1G POE F2M/F2M/0/0/F2M/F2M
  • LU 01 00100-1G-F4M/F4M/0/0/F4M/F4M / GigaCore 16tf 1G F4M/F4M/0/0/F4M/F4M
  • LU 01 00100-1G-POE-F4M/F4M/0/0/F4M/F4M / GigaCore 16tf 1G POE F4M/F4M/0/0/F4M/F4M
  • LU 01 00100-1G-POE-ETC/ETC/0/0/NQM/NQM / GigaCore 16tf 1G POE ETC/ETC/0/0/NQM/NQM
