Luminex GigaCore 16t

Luminex GigaCore 16t

1Gb Network switch for converged AV networks

The GigaCore 16t is a 1 Gigabit Ethernet switch for professional touring applications in lighting, audio and video with a frequent tear-down & built-up requirement or for any other application where ruggedized connectivity is necessary.

It is designed to support the most advanced AV protocols out of the box and is the backbone for a converged network, allowing multiple applications to co-exist on the same network.

Specifications

• Most suitable applications: Touring applications
• PoE: PoE ++ Optional
• RLinkX (Link redundancy): Yes
• Groups (VLAN segmentation): Yes
• MultiLinkX (Link aggregation): Yes (With future FW upgrade)
• Profile manager: Yes
• Memory: Flash 1Gb RAM – 8Mb NOR flash 4Gb EMMC storage
• MAC address table: 16384 entries
• Address learning / Aging: Self learning, Auto aging
• Switching throughput: 32Gbps
• Jumbo frames: MTU up to 12000
• IGMP support: Yes (V1/V2/V3)
• IGMP snooping: Yes, enabled by default
• Port sensing: Auto negotiation
• Auto crossover: MDI / MDIX
• Auto sensing: Full or Half Duplex (Gigabit is Full Duplex)

Conectivity

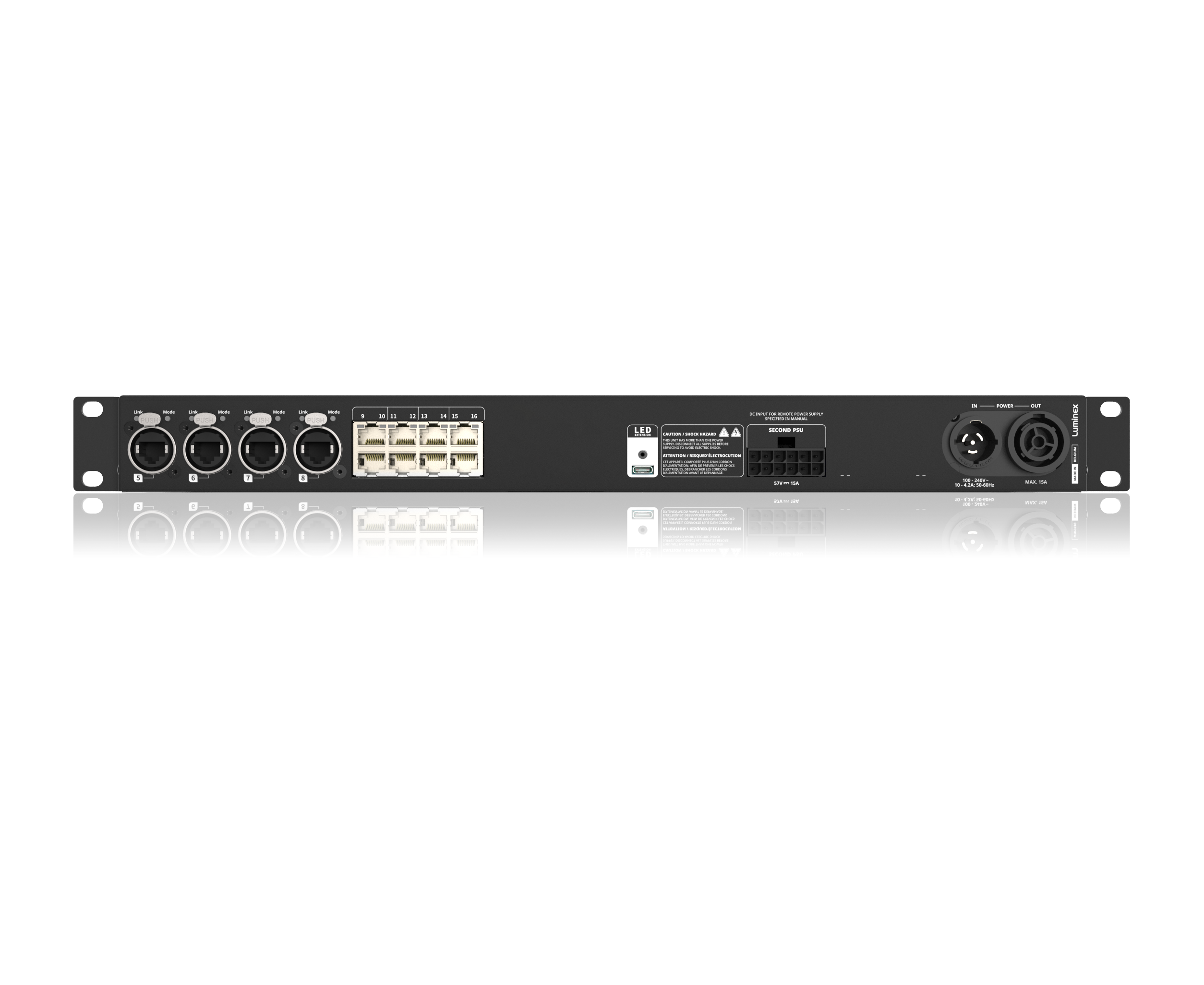

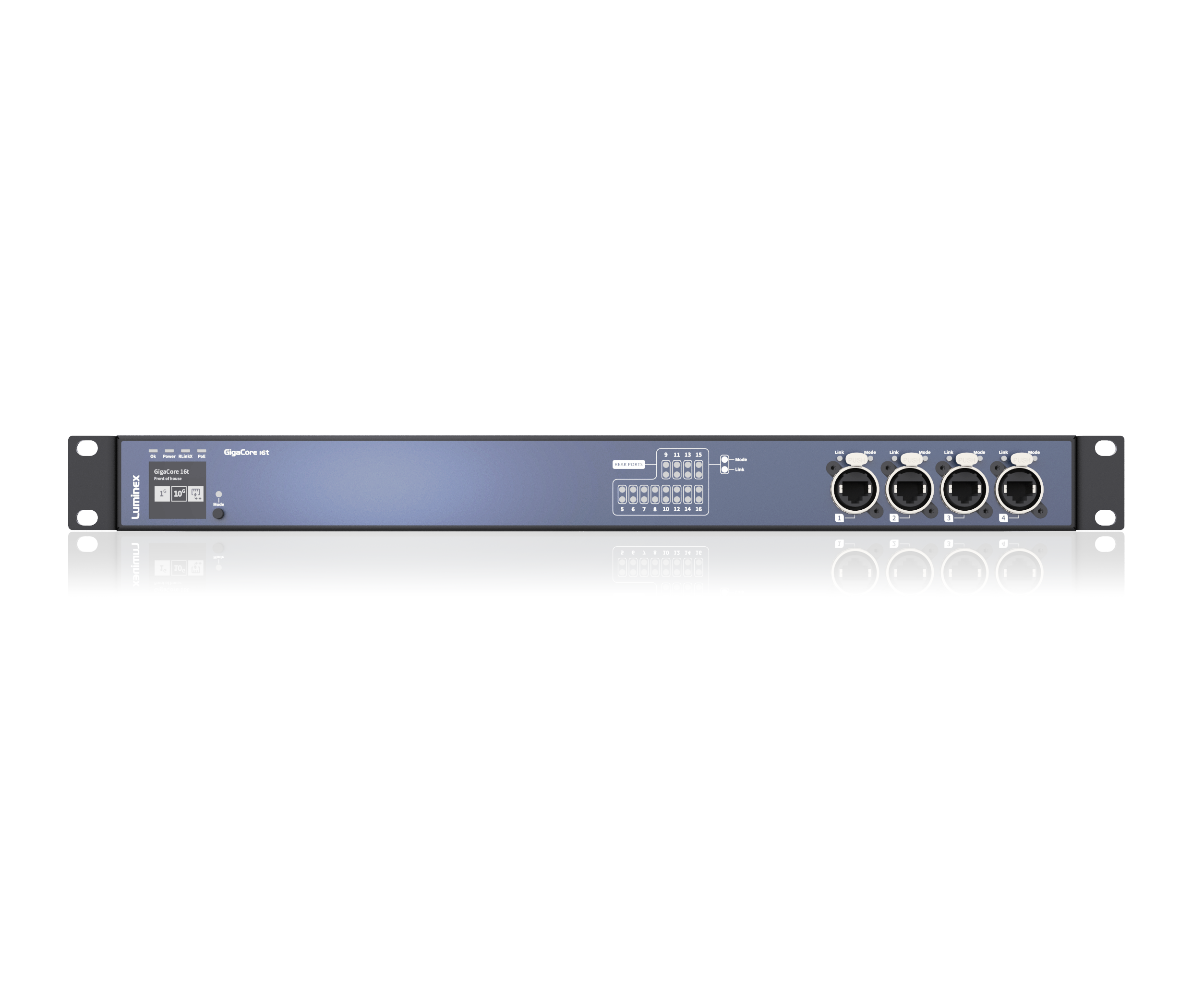

• Ethernet connectivity: 8 x EtherCon conectors ) (4x front, 4x rear) (1Gbps) 8 x RJ 45 connectors (rear) (1Gbps)
• Fiber connectivity: No
• Ethernet port speed: 1Gbps
• Serial: No.

Power:

• Power connectivity: 1 x PowerCON True 1 in/out
• Power input: 100-240VAC, 50-60Hz
• Power consumption: Maximum 50W - Maximum 1050W (Depending on PoE and PSU configuration)
• Fuse: NA
• Backup power input: Yes (PoE models only)
• Backup PoE power input: Yes
• PoE: PoE ++ Optional

Protocol

• Supported protocols: Dante©, RAVENNA/AES67©, Ethersound©, Q-SYS/Q-LAN, sACN, ArtNet, MANet2, HogNet, RTTrPL (BlackTraX), IEEE 802.1p CoS (Class of Service), DiffServ (DSCP), PoE (802.3af) (optional), PoE+ (optional), PoE++ (802.3bt) (optional), IEEE 1588 PTP V2, AVB/MILAN
• Sound protocol compliance: Yes (low jitter)
• Ethernet compliance: IEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.3x Flow Control, IEEE 802.3ab Gigabit Ethernet, IEEE 802.3af PoE(optional), IEEE 802.3at PoE+(optional), IEEE 802.3bt PoE++ 90W(optional), IEEE 802.1p CoS, IEEE 802.1d Spanning Tree, IEEE 802.1w Rapid Spanning Tree, EEE 802.1s Multiple Spanning Tree, IEEE 802.1Q VLAN, IEEE 802.1ab LLDP, IEEE 1588-2008 PtPv2, IEEE 802.1 BA-2011 AVB

Configuration

• Display and jog: No
• Configuration: Through the built-in web server, Network wide configuration through Araneo software
• Status LEDs:
  • Global status LEDs: Device, power, PoE power and mode
  • Port status LEDs: PoE, groups, link/activity and port speed
  • Dark mode available
• Colored RGB LEDs: Yes

Physical

• Mounting: Rack
• Enclosure: Robust metal housing
• Dimensions (W x D x H): 482 x 216,95 x 44 mm (19" x 8.54" x 1,73")
• Weight: TBC
• Packaging: TBC
• Environment:
  • Operating temperature: 0 to +50 °C
  • Storage temperature: -10 to +70 °C
  • Humidity (non condensing): 5 to 95% RH
• Noise level @1m: TBC
• BTU: TBD
• Certificates/Approvals: Pending: cSGSus Mark (UL), CE Mark, UKCA Mark, CB certificate, RoHS
• Standards: Pending: IEC 62368-1, UL 62368-1, CAN/CSA C22.2 No. 62368-1, EN 62368-1, FCC Part 15 CFR 47, CAN/ICES-003, EN 55032, EN 55024

Product codes

• Product codes:
  • GigaCore 16t – 1G / LU 01 00097-1G
  • GigaCore 16t – 1G-PoE++ / LU 01 00097-1G-P500
