Luminex GigaCore 10i

Luminex GigaCore 10i

10Gb Network switch for converged AV networks

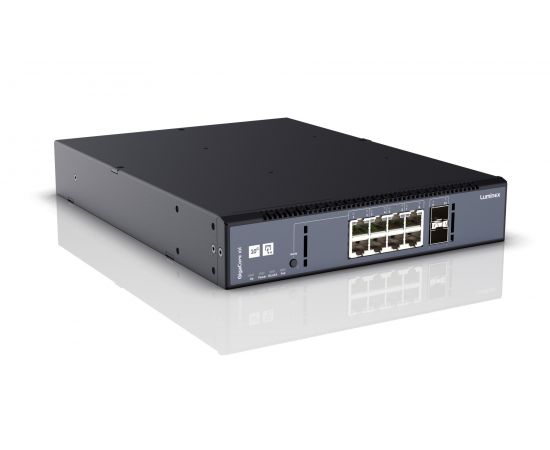

GigaCore 10i is a 10 Gigabit Ethernet switch in a ½ 19” package, dedicated to AV integration and installations where there are specific requirements to available space and mounting

It is designed to support the most advanced AV protocols out of the box and is the backbone for a converged network, allowing multiple applications to co-exist on the same network.

Specifications

• Most suitable applications: Installations
• PoE: PoE ++ Optional (up to 150W)
• RLinkX (Link redundancy): Yes
• Groups (VLAN segmentation): Yes
• MultiLinkX (Link aggregation): Yes (With future FW upgrade)
• Profile manager: Yes
• Memory: Flash 1Gb RAM – 8Mb NOR flash 4Gb EMMC storage
• MAC address table: 16384 entries
• Address learning / Aging: Self learning, Auto aging
• Switching throughput: 56Gbps
• Jumbo frames: MTU up to 12000
• IGMP support: Yes (V1/V2/V3)
• IGMP snooping: Yes, enabled by default
• Port sensing: Auto negotiation
• Auto crossover: MDI / MDIX
• Auto sensing: Full or Half Duplex (Gigabit is Full Duplex)

Connectivity

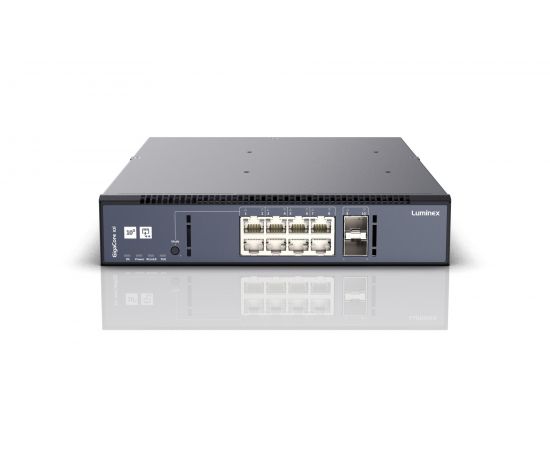

• Ethernet connectivity: 8 x RJ45 connectors (1Gbps))
• Fiber connectivity: 2 x SFP+ cages (10Gbps/1Gbps) (independent from other ports)
• Ethernet port speed: 1Gbps
• Serial: NA

Power

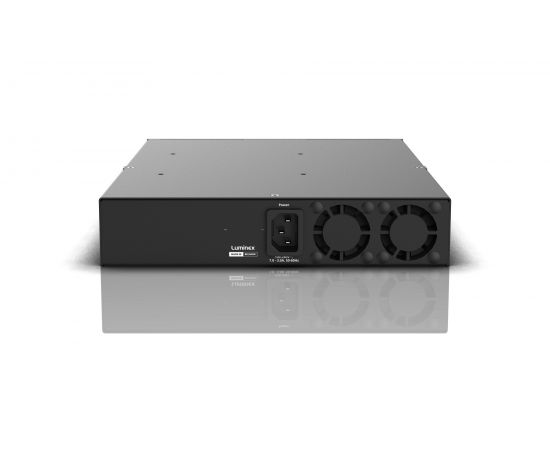

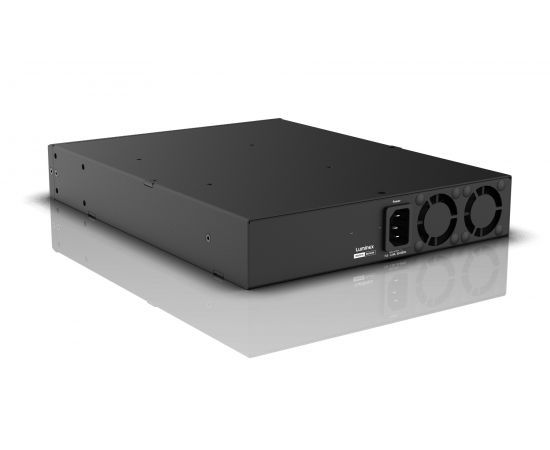

• Power connectivity: 1 x IEC (C14)
• Power input: 100-240VAC, 50-60Hz
• Power consumption: Maximum 40W - Maximum 350W (Depending on configuration)
• Fuse: NA
• Backup power input: NA
• Backup PoE power input: NA
• PoE: PoE ++ Optional (up to 150W)

Protocols

• Supported protocols: Dante©, RAVENNA/AES67©, Ethersound©, Q-SYS/Q-LAN, sACN, ArtNet, MANet2, HogNet, RTTrPL (BlackTraX), IEEE 802.1p CoS (Class of Service), DiffServ (DSCP), PoE (802.3af) (optional), PoE+ (optional), PoE++ (802.3bt) (optional), IEEE 1588 PTP V2, AVB/MILAN, IEEE 802.1as (gPTP)
• Sound protocol compliance: Yes (low jitter)
• Ethernet compliance: IEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.3x Flow Control, IEEE 802.3ab Gigabit Ethernet, IEEE 802.3af PoE(optional), IEEE 802.3at PoE+(optional), IEEE 802.3bt PoE++ 90W(optional), IEEE 802.1p CoS, IEEE 802.1d Spanning Tree, IEEE 802.1w Rapid Spanning Tree, EEE 802.1s Multiple Spanning Tree, IEEE 802.1Q VLAN, IEEE 802.1ab LLDP, IEEE 1588-2008 PtPv2,IEEE 802.1 BA-2011 AVB, IEEE 802.1as (gPTP)

Configuration

• Display and jog: NA
• Configuration: Network wide configuration through Araneo software, through the built-in web server,
• Status LEDs:
  • Global status LEDs: Device, power, PoE power and mode
  • Port status LEDs: PoE, groups, link/activity and port speed
  • Dark mode available
• Colored RGB LEDs: Yes

Physical

• Mounting: Rack, 100mm x 100mm Vesa spaced mount
• Enclosure: Robust metal housing
• Dimensions (W x D x H):
  • 220x296,4x43,2 mm
  • 8,66x11,67x1,7 inch
• Weight: TBD
• Packaging: tbd
• Environment:
  • Operating temperature: 0 to +50 °C
  • Storage temperature: -10 to +70 °C
  • Humidity (non condensing): 5 to 95% RH
• Noise level @1m: TBD
• BTU:
• Certificates/Approvals: cSGSus Mark (UL), CE Mark, UKCA Mark, CB certificate, RoHS
• Standards: IEC 62368-1, UL 62368-1, CAN/CSA C22.2 No. 62368-1, EN 62368-1, FCC Part 15 CFR 47, CAN/ICES-003, EN 55032, EN 55024

Product codes

• LU 01 00089-10G / GigaCore 10i-8x1G-2x10G(SFP+)
• LU 01 00089-10G-POE / GigaCore 10i-8x1G-2x10G(SFP+)-PoE++
