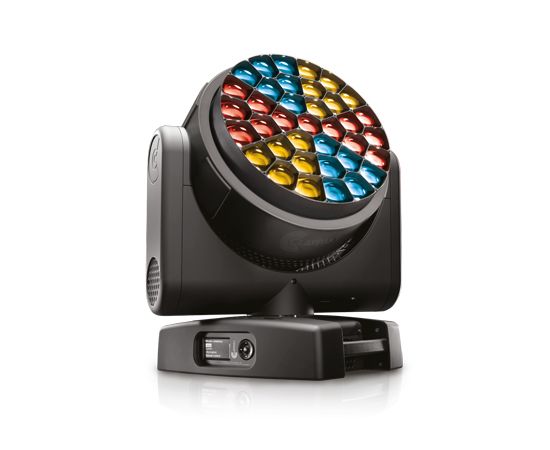

HY B-EYE K25
C61470 HY B-EYE K25
CL3015 HY B-EYE K25 TEATRO
The B-EYE has revolutionized the way we think of LED show lighting. Its innovative optical unit enhances the uniformity and efficiency of the light output. The rotating front lens and the possibility to control each single LED individually have made spectacular kaleidoscopic projections and charming eye candy effects possible. A sophisticated effect engine has made it easier to routinely use macro effects, which would otherwise be difficult to program. These technological innovations make the B-EYE a versatile product: it is a high-performance LED wash light, a perfect beam light, and a spectacular visual effect projector all in one. It has won several awards and been copied by countless manufacturers over the years.
Today Claypaky offers HY B-EYE, that is TWICE MORE POWERFUL and bright than B-EYE. It even offers more VERSATILITY and more INTERACTIVITY with the media servers (Kling-Net protocol included), it is very SILENT while featuring the same size and same control mode as the B-EYE.
The HY B-EYE K25 TEATRO is a special version of the HY B-EYE K25, that is designed for venues that need silent operation without sacrificing bright colours.
- Source Type: 37 x RGBW LED Osram OSTAR - Stage II LE RTDUW S2WN (6000 K)
- LED Nominal Wattage: 40W
- Versatile, three operating modes: wash, beam, FX effect
- 4°-60° Zoom range and even light spread
- Individual LED control for each parameter
- Invisible front grid
- Beam edge softening control (in wash mode)
- Exclusive parallel beam consisting of an array of individually controllable micro-beams
- Enhanced electronic engine for dynamic beam pattern design, with digital accuracy and repeatability
- Art-Net / RDM
- Arkaos Kling-Net protocol already included in the firmware
- Rotating front lens for countless vortex effects, for aerial or "kaleidoscopic" projection use
- White CT Emulation 2500-8000K
- RGB auto-tuning to lamp CT Emulation
- Tungsten Lamp Emulation
- Weight: about 27.5 Kg (60.6 lbs)
POWER SUPPLIES
100-240V 50/60Hz
INPUT POWER
1250 VA at 230Vac 50Hz
LIGHT SOURCE
37 RGBW LEDs driven at 40 Watt
- Type: OSRAM OSTAR - Stage II LE RTDUW S2WN
- Color Temperature: 6,000 K
- Life: 50,000 hrs
OPTICS
4°-60° Electronic Zoom Range
EFFECTS SECTION
Three operating modes: wash, beam, FX (Kaleido effects)
Bi-directional Rotating Front Lens
Digital Wash-Beam Framing effect
Beam edge softening control (in Wash mode)
Pixel Patterning Macros with enhanced control
0-100% linear electronic dimmer
Adjustable speed stop/strobe effect, with instantaneous blackout
Dedicated channel for color temperature setting
White CT Emulation 2500-8000K
RGBW auto-tuning to lamp CT Emulation
Tungsten Lamp Emulation
Slow Strobe: 1 flash/sec; Fast Strobe: 25 flash/sec
CONTROL AND PROGRAMMING
22/36/111/148 DMX channels
Basic Engine (Standard and Shape Mode)
Pixel Engine (RGB and RGBW Mode)
DMX protocol signal: USITT DMX 512
Art-Net / RDM
Arkaos Kling-Net protocol already included in the firmware
Display: Graphic LCD backlit b/w Display
Pan/Tilt Resolution: 16 bit
Dimmer Resolution: 16 bit
Movement control: vectorial
DMX signal connection: 3 and 5 pole XLR input and output
Software upload through DMX input
BODY
Aluminium structure with die-cast plastic cover
Two side handles for transportation
PAN and TILT lock for transport and maintenance
MOVING BODY
Movement by means of two stepper motors, controlled by microprocessor
Automatic repositioning of PAN and TILT after accidental movement not controlled by control unit
Travel:
- PAN = 540°
- TILT = 210°
ELECTRONICS
Long-life auto-charging buffer battery
Preset color and graphic effect macros
Function reset controllable from a central control unit
Menu-driven internal self-test function
Ethernet ready with RJ45 socket
Display: backlit black-and-white graphic LCD display
Electronic check-up of every single parameter with error alarm
DMX level monitoring on each channel
Automatic internal data transmission error diagnostics
Firmware upgrade even when the unit is not connected to the power supply
Firmware transfer from one light to another
SAFETY DEVICES
Automatic power safety derating in case of overheat of the LED board
Forced ventilation
WORKING POSITION
Working in any position
Hanging system: with fast-lock omega clamps (1/4 turn) on the base
CE MARKING
In conformity with the European Directives:
• 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
• 2014/30/EU - Electromagnetic Compatibility (EMC)
• 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)
• 2009/125/EC - EcoDesign requirements for Energy-related Products (ErP)
ETL
This product is available, on demand, with cETLus Listed Mark, that complies with the UL 1573, UL 8750 and CSA C22.2 No. 166 standards.
WEIGHT
27,5 Kg (60.6 lbs)

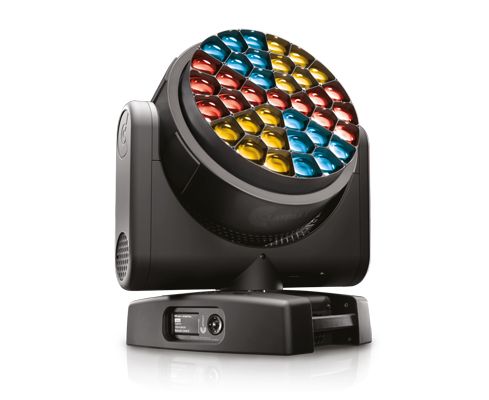

Hy B-Eye K25
HY B-EYE K25 TEATRO
