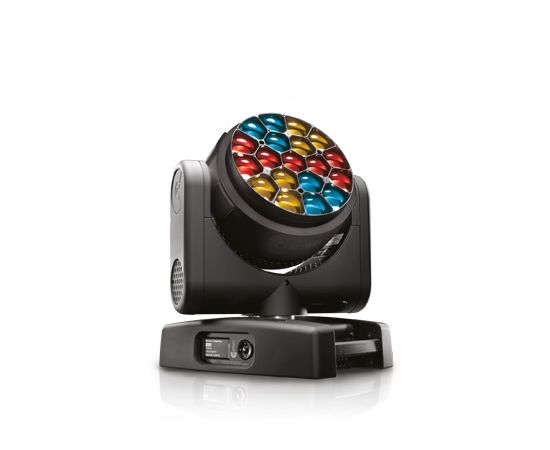

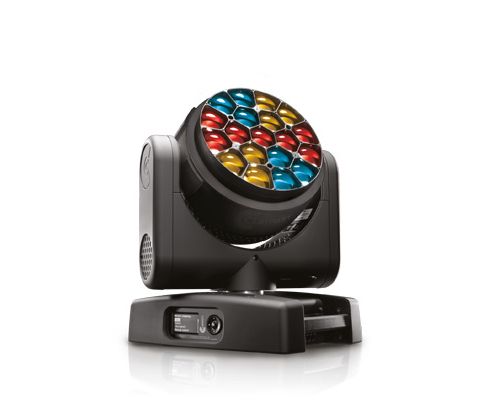

Clay Paky Hy B-Eye K15

Termen de livrare:
  • Recenzii
  • Pune o întrebare

HY B-EYE K15

HYper Power of Evolution: The new LEDwash benchmark

The B-EYE has revolutionized the way we think of LED show lighting. Its innovative optical unit enhances the uniformity and efficiency of the light output. The rotating front lens and the possibility to control each single LED individually have made spectacular kaleidoscopic projections and charming eye candy effectspossible. A sophisticated effect engine has made it easier to routinely use macro effects, which would otherwise be difficult to program. These technological innovations make the B-EYE a versatile product: it is a high-performance LED wash light, a perfect beam light, and a spectacular visual effect projector all in one. It has won several awards and been copied by countless manufacturers over the years.

Today Claypaky offers HY B-EYE, that is TWICE MORE POWERFUL and bright than B-EYE. It even offers more VERSATILITY and more INTERACTIVITY with the media servers (Kling-Net protocol included), it is very SILENT while featuring the same size and same control mode as the B-EYE.


  • Source Type: 19 x RGBW LED Osram OSTAR - Stage II LE RTDUW S2WN (6000 K)
  • LED Nominal Wattage: 40W
  • Versatile, three operating modes: wash, beam, FX effect
  • 4°-60° Zoom range and even light spread
  • Individual LED control for each parameter
  • Invisible front grid
  • Beam edge softening control (in wash mode)
  • Exclusive parallel beam consisting of an array of individually controllable micro-beams
  • Enhanced electronic engine for dynamic beam pattern design, with digital accuracy and repeatability
  • Art-Net / RDM
  • Arkaos Kling-Net protocol already included in the firmware
  • Rotating front lens for countless vortex effects, for aerial or "kaleidoscopic" projection use
  • White CT Emulation 2500-8000K
  • RGB auto-tuning to lamp CT Emulation
  • Tungsten Lamp Emulation
  • Weight: about 21 Kg (46.3 lbs)
POWER SUPPLIES

100-240V 50/60Hz

INPUT POWER

700 VA at 230V 50Hz

LIGHT SOURCE

19 RGBW LEDs driven at 40 Watt
- Type: OSRAM OSTAR - Stage II LE RTDUW S2WN
- Color Temperature: 6,000 K
- Life: 50,000 hrs

OPTICS

4°-60° Electronic Zoom Range

EFFECTS SECTION

Three operating modes: wash, beam, FX (Kaleido effects)
Bi-directional Rotating Front Lens
Digital Wash-Beam Framing effect
Beam edge softening control (in Wash mode)
Pixel Patterning Macros with enhanced control
0-100% linear electronic dimmer
Adjustable speed stop/strobe effect, with instantaneous blackout
Dedicated channel for color temperature setting
White CT Emulation 2500-8000K
RGBW auto-tuning to lamp CT Emulation
Tungsten Lamp Emulation
Slow Strobe: 1 flash/sec; Fast Strobe: 25 flash/sec

CONTROL AND PROGRAMMING

DMX protocol signal: USITT DMX 512
Art-Net / RDM
Arkaos Kling-Net protocol already included in the firmware
Display: Graphic LCD backlit b/w Display
Pan/Tilt Resolution: 16 bit
Dimmer Resolution: 16 bit
Movement control: vectorial
DMX signal connection: 3 and 5 pole XLR input and output
Software upload through DMX input

BODY

Aluminium structure with die-cast plastic cover
Two side handles for transportation
PAN and TILT lock for transport and maintenance

MOVING BODY

Movement by means of two stepper motors, controlled by microprocessor
Automatic repositioning of PAN and TILT after accidental movement not controlled by control unit
Travel:
- PAN = 540°
- TILT = 200°

ELECTRONICS

Long-life auto-charging buffer battery
Preset color and graphic effect macros
Function reset controllable from a central control unit
Menu-driven internal self-test function
Ethernet ready with RJ45 socket
Display: backlit black-and-white graphic LCD display
Electronic check-up of every single parameter with error alarm
DMX level monitoring on each channel
Automatic internal data transmission error diagnostics
Firmware upgrade even when the unit is not connected to the power supply
Firmware transfer from one light to another

SAFETY DEVICES

Automatic power safety derating in case of overheat of the LED board
Forced ventilation

WORKING POSITION

Working in any position
Hanging system: with fast-lock omega clamps (1/4 turn) on the base

CE MARKING

In conformity with the European Directives:
• 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
• 2014/30/EU - Electromagnetic Compatibility (EMC)
• 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)
• 2009/125/EC - EcoDesign requirements for Energy-related Products (ErP)

ETL

This product is available, on demand, with cETLus Listed Mark, that complies with the UL 1573, UL 8750 and CSA C22.2 No. 166 standards.

WEIGHT

20.7 Kg (45.6 lbs)

HY B-EYE K15



Data sheet - Descarcare
