10Gb Network switch for converged AV networks
The GigaCore 10t is a 10 Gigabit Ethernet switch for professional touring applications in lighting, audio and video with a frequent tear-down & built-up requirement or for any other application where ruggedized connectivity is necessary.
It is designed to support the most advanced AV protocols out of the box and is the backbone for a converged network, allowing multiple applications to co-exist on the same network.
AV validated for real applications
GigaCore switches are fully validated in real-world applications with major brands in the AV industry for different protocols, including NDI™, Dante™, AVB/MILAN, AES67, ST-2110, IPMX, MA-Net, and many more.
We don’t just approve against a protocol but actually test it. Because of real world application validation and interoperability testing, we understand the applications and make sure you can deploy our product with confidence.
Luminex support team really speaks your language and has a vast amount of AV knowledge built up, not just from talking protocols but mainly from working with you and living through your real application network challenges.
- Most suitable applications: Touring applications, Rack mount and Truss mount (through 2x M10) applications
- PoE: PoE ++ Optional (up to 450W)
- RLinkX (Link redundancy): Yes
- Groups (VLAN segmentation): Yes
- MultiLinkX (Link aggregation): Yes (With future FW upgrade)
- Profile manager: Yes
- Memory: Flash 1Gb RAM – 8Mb NOR flash 4Gb EMMC storage
- MAC address table: 16384 entries
- Address learning / Aging: Self learning, Auto aging
- Switching throughput 64 Byte:
- 1G Models: 14881Mpps
- 10G Models: 41667Mpps
- Switching capacity:
- 1G Models: 20Gbps
- 10G Models: 56Gbps
- Jumbo frames: MTU up to 12000
- IGMP support: Yes (V1/V2/V3)
- IGMP snooping: Yes, enabled by default
- Port sensing: Auto negotiation (Copper ports)
- Auto crossover: MDI / MDIX
- Auto sensing: Full or Half Duplex (Gigabit is Full Duplex)

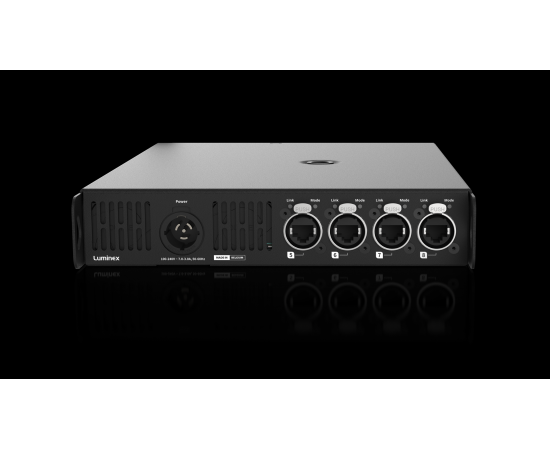

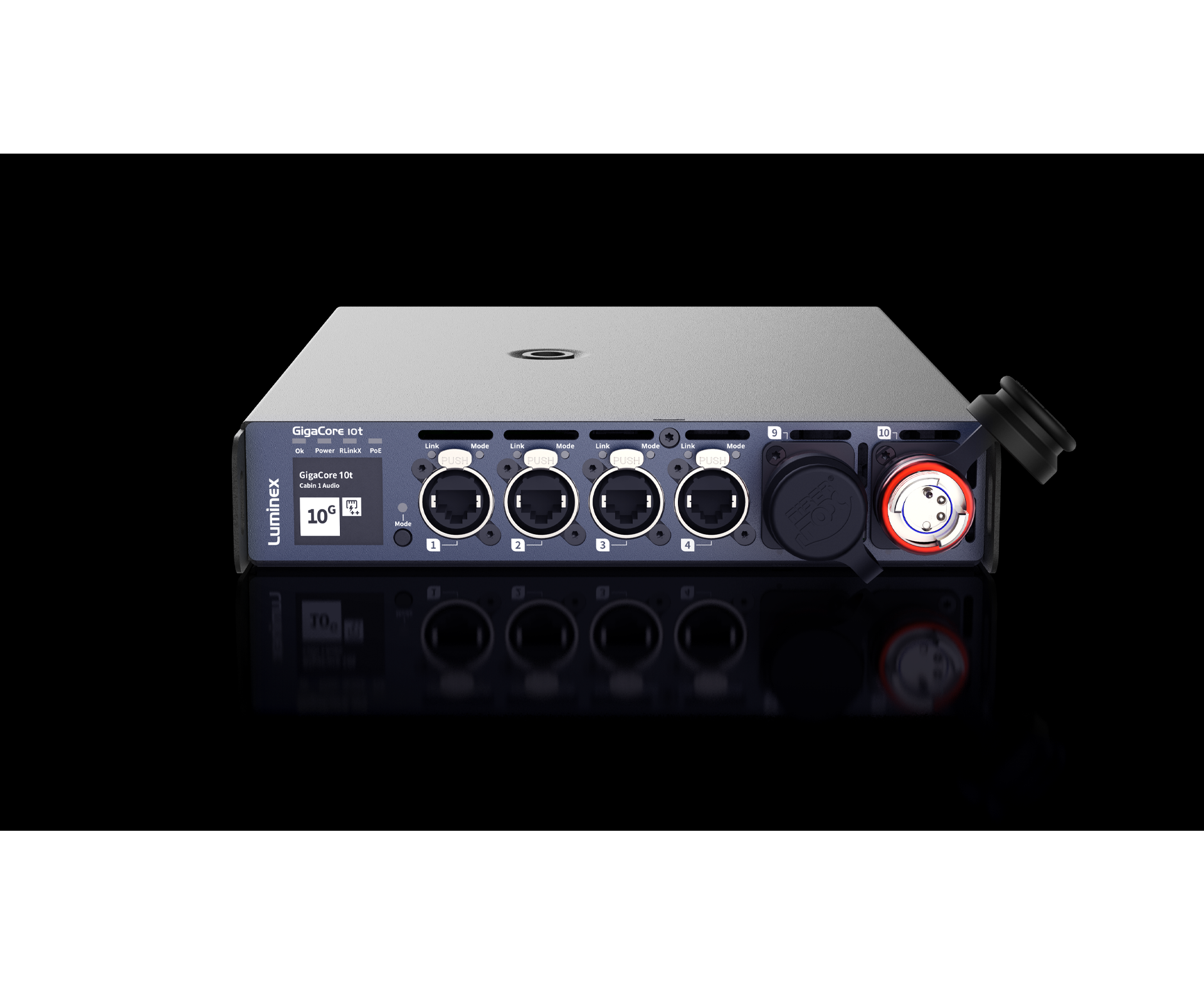

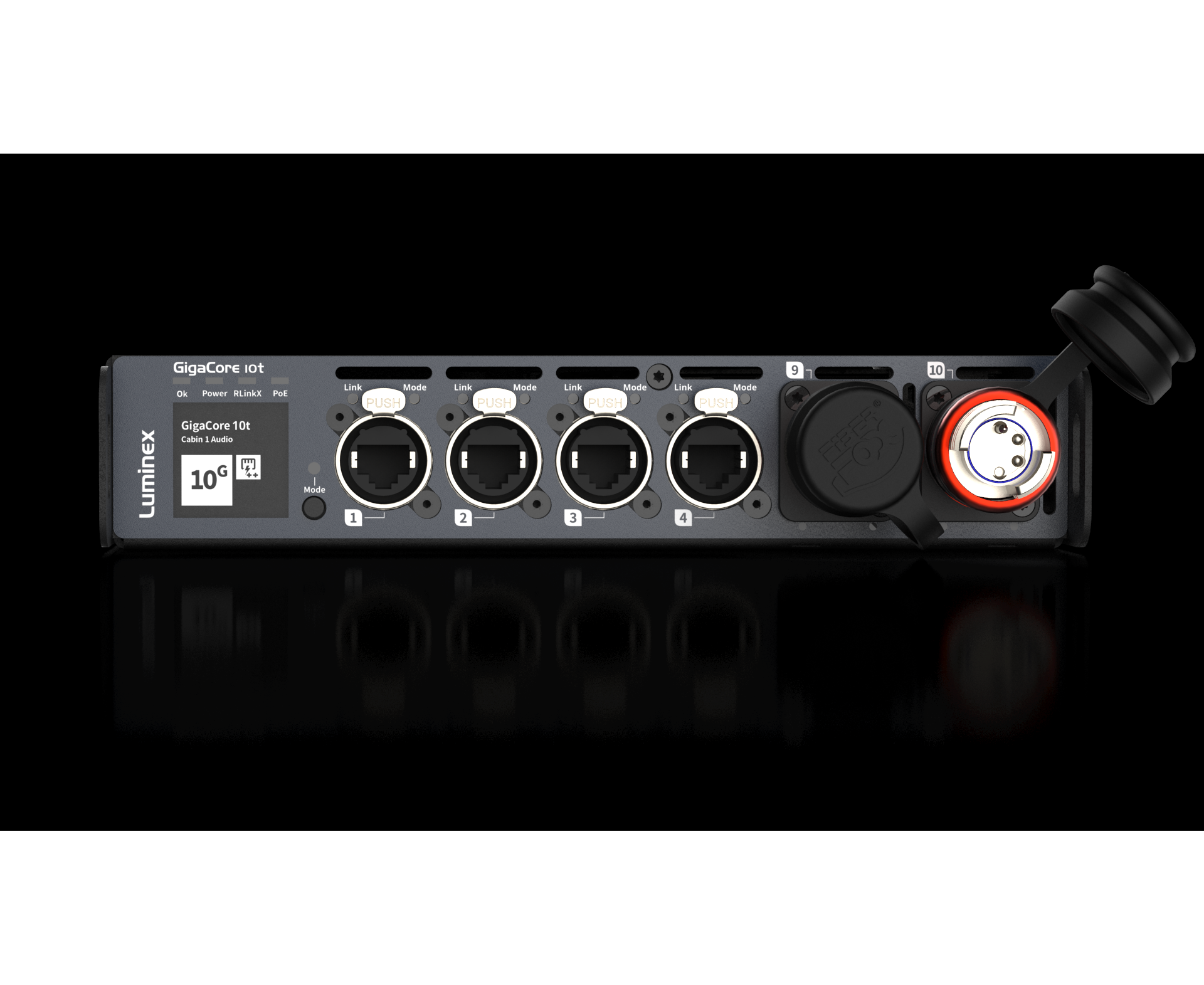

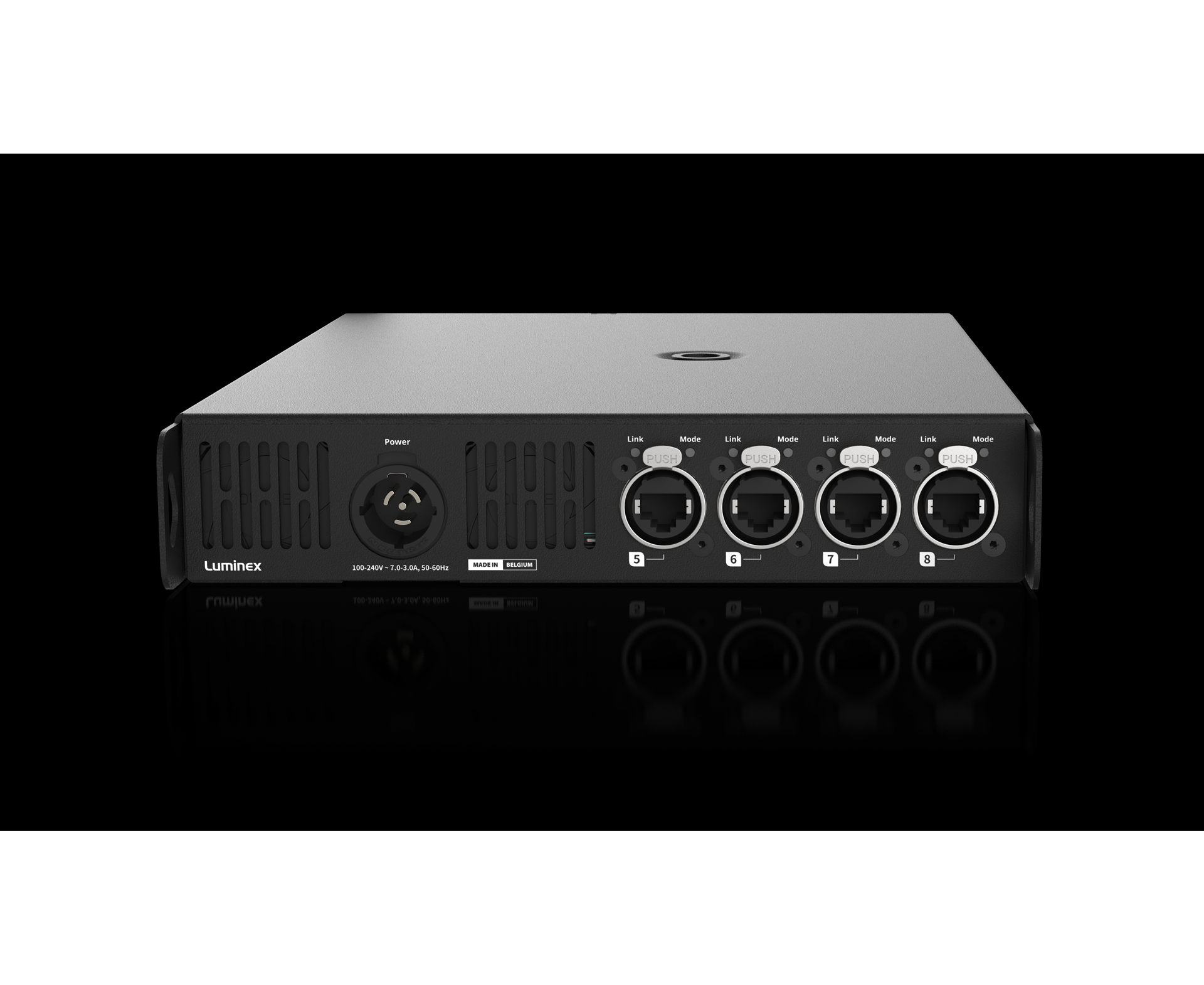

- Ethernet connectivity: 8 x EtherCon connectors ) (4x front, 4x rear) (1Gbps)
- Fiber connectivity: 2 x rugged fiber connectors (optional) (10Gbps/1Gbps) (independent from other ports) (front panel)
- Ethernet port speed: 1Gbps
- Serial: No
- Power connectivity: 1 x PowerCON True 1 in
- Power input: 100-240VAC, 50-60Hz
- Power consumption: Maximum 40W - Maximum 550W (Depending on configuration)
- Fuse: NA
- Backup power input: No
- Backup PoE power input: No
- PoE: PoE ++ Optional (up to 450W)
- Supported protocols: Dante©, RAVENNA/AES67©, Ethersound©, Q-SYS/Q-LAN, sACN, ArtNet, MANet2, HogNet, RTTrPL (BlackTraX), IEEE 802.1p CoS (Class of Service), DiffServ (DSCP), PoE (802.3af) (optional), PoE+ (optional), PoE++ (802.3bt) (optional), IEEE 1588 PTP V2, AVB/MILAN
- Sound protocol compliance: Yes (low jitter)
- Ethernet compliance: IEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.3x Flow Control, IEEE 802.3ab Gigabit Ethernet, IEEE 802.3af PoE(optional), IEEE 802.3at PoE+(optional), IEEE 802.3bt PoE++ 90W(optional), IEEE 802.1p CoS, IEEE 802.1d Spanning Tree, IEEE 802.1w Rapid Spanning Tree, EEE 802.1s Multiple Spanning Tree, IEEE 802.1Q VLAN, IEEE 802.1ab LLDP, IEEE 1588-2008 PtPv2, IEEE 802.1 BA-2011 AVB
- Display and jog: No
- Configuration: Through the built-in web server, Network wide configuration through Araneo software
- Status LEDs:
- Global status LEDs: Device, power, PoE power and mode
- Port status LEDs: PoE, groups, link/activity and port speed
- Dark mode available
- Colored RGB LEDs: Yes
- Mounting: Rack, Truss (2x M10)
- Enclosure: Robust metal housing
- Dimensions (W x D x H): 220 x 330 x 44 mm (8,66" x 13" x 1,73")
- Weight: 3,4kg
- Packaging: TBC
- Environment:
- Operating temperature: 0 to +50 °C
- Storage temperature: -10 to +70 °C
- Humidity (non condensing): 5 to 95% RH
- Noise level @1m: TBC
- BTU:
- Certificates/Approvals: Pending: cSGSus Mark (UL), CE Mark, UKCA Mark, CB certificate, RoHS
- Standards: Pending: IEC 62368-1, UL 62368-1, CAN/CSA C22.2 No. 62368-1, EN 62368-1, FCC Part 15 CFR 47, CAN/ICES-003, EN 55032, EN 55024
- Product codes:
- LU 01 00079-NDM-10G / GigaCore 10t -10G-(Neutrik DUOMMF)
- LU 01 00079-POE-NDM-10G / GigaCore 10t -10G-(Neutrik DUOMMF + PoE++)
- LU 01 00079-NQM-10G / GigaCore 10t -10G-(NeutrikQUAD MMF)
- LU 01 00079-POE-NQM-10G / GigaCore 10t -10G-(NeutrikQUAD MMF + PoE++)
- LU 01 00079-NDS-10G / GigaCore 10t -10G-(NeutrikDUO SMF)
- LU 01 00079-POE-NDS-10G / GigaCore 10t-10G- (NeutrikDUO SMF + PoE++)
- LU 01 00079-NQS-10G / GigaCore 10t -10G-(NeutrikQUAD SMF)
- LU 01 00079-POE-NQS-10G / GigaCore 10t-10G- (NeutrikQUAD SMF + PoE++)
- LU 01 00079-F2M-10G / GigaCore 10t-10G- (Fiberfox 2ch MMF)
- LU 01 00079-POE-F2M-10G / GigaCore 10t-10G- (Fiberfox 2ch MMF)
- LU 01 00079-F4M-10G / GigaCore 10t-10G-(Fiberfox 4ch MMF)
- LU 01 00079-POE-F4M-10G / GigaCore 10t-10G-(Fiberfox 4ch MMF + PoE++)
- LU 01 00079-1G / GigaCore 10t -1G-(8 etherCON)
- LU 01 00079-POE-1G / GigaCore 10t -1G-(8 etherCON + PoE++)
- LU 01 00079-NDM-1G / GigaCore 10t -1G-(Neutrik DUOMMF)
- LU 01 00079-POE-NDM-1G / GigaCore 10t -1G-(Neutrik DUOMMF + PoE++)
- LU 01 00079-NQM-1G / GigaCore 10t -1G-(NeutrikQUAD MMF)
- LU 01 00079-POE-NQM-1G / GigaCore 10t -1G-(NeutrikQUAD MMF + PoE++)
- LU 01 00079-NDS-1G / GigaCore 10t -1G-(NeutrikDUO SMF)
- LU 01 00079-POE-NDS-1G / GigaCore 10t-1G- (NeutrikDUO SMF + PoE++)
- LU 01 00079-NQS-1G / GigaCore 10t -1G-(NeutrikQUAD SMF)
- LU 01 00079-POE-NQS-1G / GigaCore 10t-1G- (NeutrikQUAD SMF + PoE++)
- LU 01 00079-F2M-1G / GigaCore 10t-1G- (Fiberfox 2ch MMF)
- LU 01 00079-POE-F2M-1G / GigaCore 10t -1G-(Fiberfox 2ch MMF + PoE++)
- LU 01 00079-F4M-1G / GigaCore 10t-1G-(Fiberfox 4ch MMF)
- LU 01 00079-POE-F4M-1G / GigaCore 10t-1G-(Fiberfox 4ch MMF + PoE++)
