D8 Divo Four 2000Kg - 4m / min
- Recenzii
- Pune o întrebare
Nici o postare găsită
Conectează-te ca să te putem notifica când primești un răspuns
2000 D8 - 4m / min
Code: DXC2000

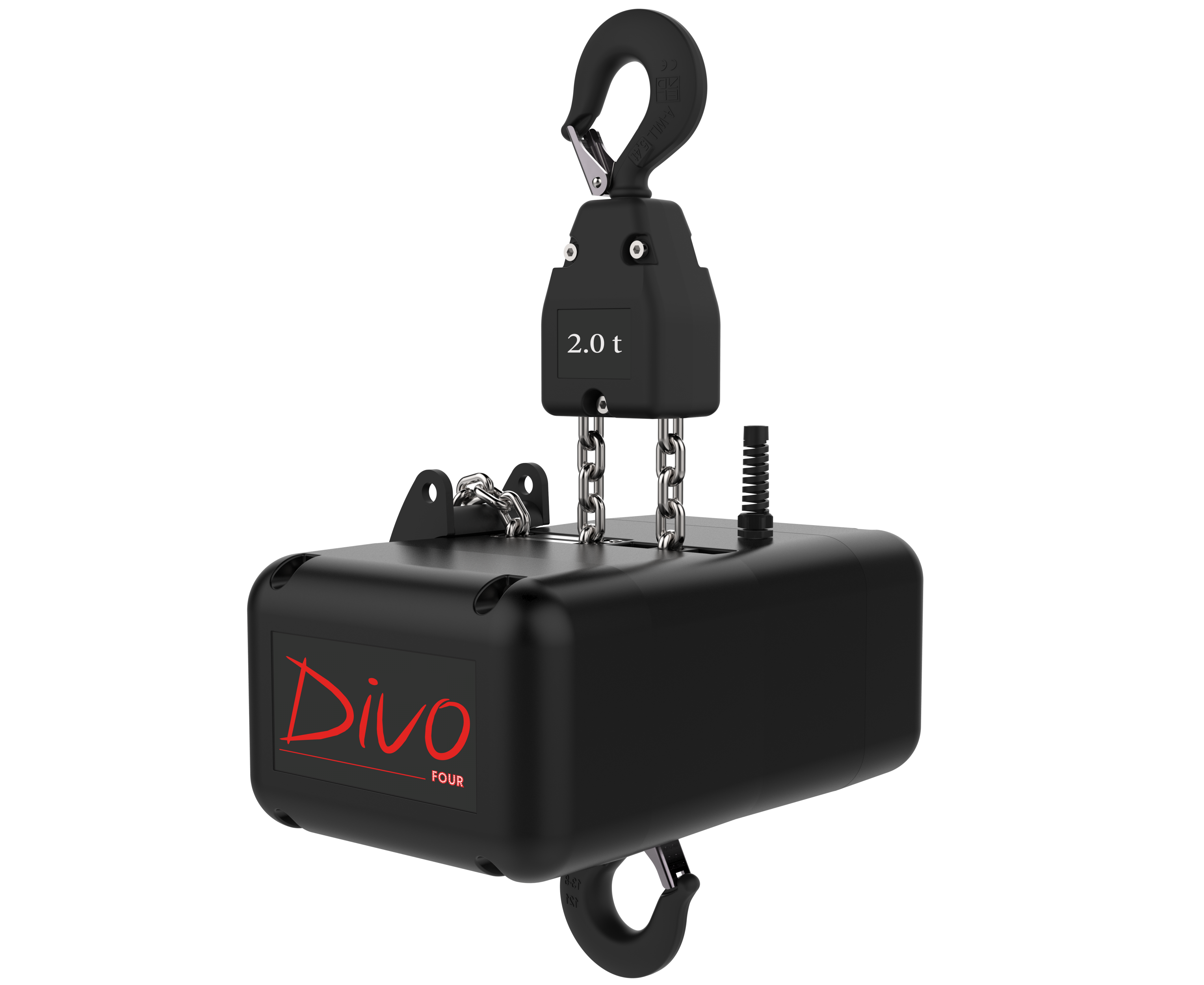

Electric chain hoist, direct tension, aluminum body, chain guide system designed to reduce jamming risk, double swivel hook.
Complies with the IGVW SQP2 guideline
| Load capacity | 2000 kg |
| Lifting speed at 50 Hz | 4m / min |
| Operating voltage | 400V 50 Hz |
| Protection Class | IP 55 DIN 40050 |
| Motor power at 50 Hz | 1.5 kW |
| FEM Class | 2m |
| DC braking system | 1 brake |
| Noise level | <67.5 dB (full load) |
| Loading wheel | 5 pockets |
| RUD® Load chain | 8x24 mm |
| Number of chains | 2 |
| Chain weight | 1.4 kg / m |
| Weight of the body | 53 kg |
| Type of control | Direct Control |
| Type of connector | Red Plug | 400V EEC 16A - 3P + T |
| Climbing use | permitted |
| Security factor | 8: 1 |
| Stromag® Limit Switch with 4 switches | Optional |
| Code | Description |
| DXC2000-05 | Divo FOUR 2000 D8 - 4m / min, 5m of galvanized chain and chain bag |
| DXC2000-10 | Divo FOUR 2000 D8 - 4m / min, 10m of galvanized chain and chain bag |
| DXC2000-15 | Divo FOUR 2000 D8 - 4m / min, 15m of galvanized chain and chain bag |
| DXC2000-18 | Divo FOUR 2000 D8 - 4m / min, 18m of galvanized chain and chain bag |
| DXC2000-20 | Divo FOUR 2000 D8 - 4m / min, 20m of galvanized chain and chain bag |
| DXC2000-24 | Divo FOUR 2000 D8 - 4m / min, 24m of galvanized chain and chain bag |
| DXC2000-05B | Divo FOUR 2000 D8 - 4m / min, 5m of black chain and chain bag |
| DXC2000-10B | Divo FOUR 2000 D8 - 4m / min, 10m of black chain and chain bag |
| DXC2000-15B | Divo FOUR 2000 D8 - 4m / min, 15m of black chain and chain bag |
| DXC2000-18B | Divo FOUR 2000 D8 - 4m / min, 18 m of black chain and chain bag |
| DXC2000-20B | Divo FOUR 2000 D8 - 4m / min, 20m of black chain and chain bag |
| DXC2000-24B | Divo FOUR 2000 D8 - 4m / min, 24m of black chain and chain bag |
