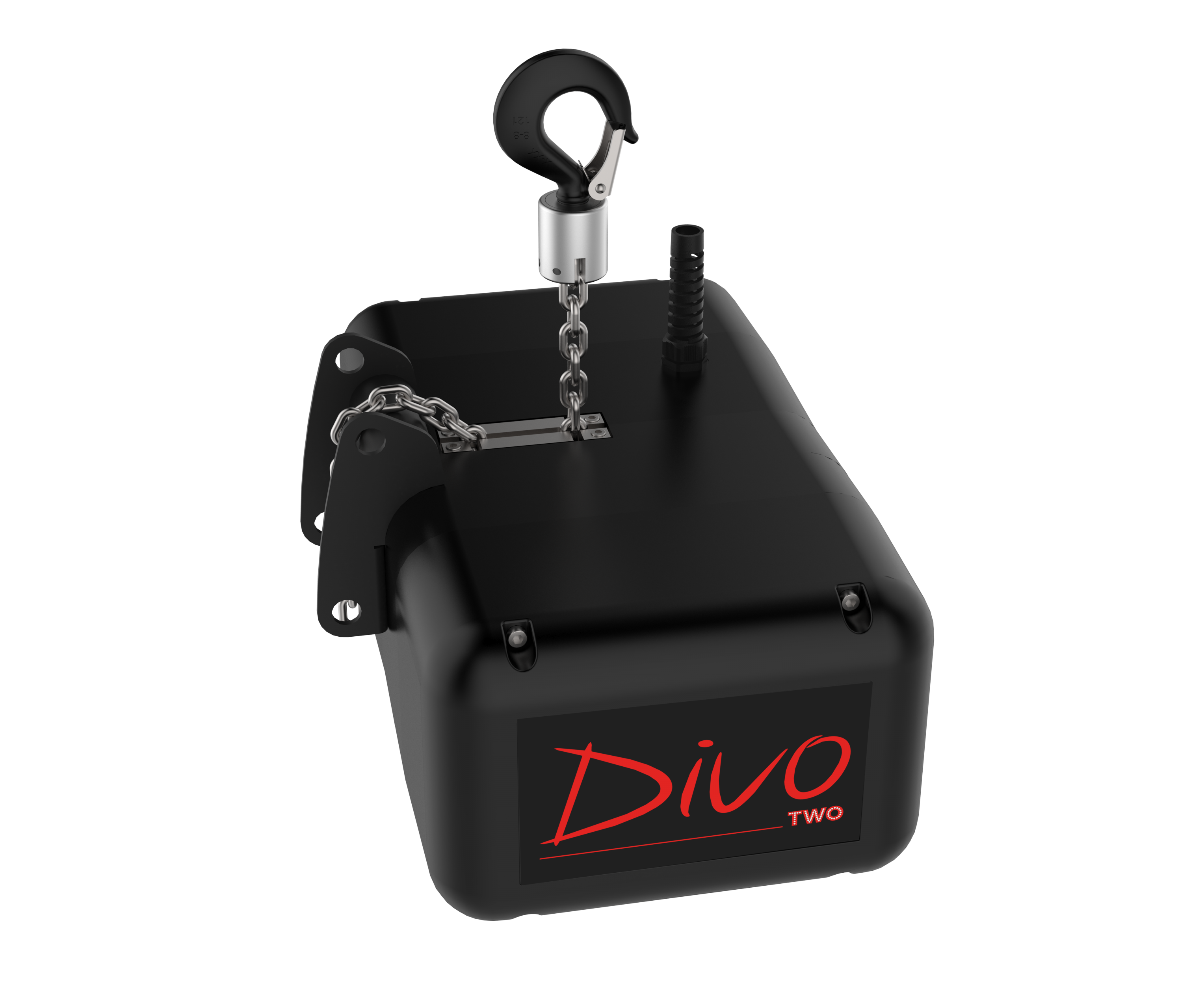

D8 Plus Divo Two 320 Kg - 4m / min

Electric chain hoist, direct tension, aluminum body, chain guide system designed to reduce jamming risk, double swivel hook.
Complies with the IGVW SQP2 guideline
Low Voltage available.
TECHNICAL SPECIFICATIONS
Load capacity 320 kg
Lifting speed at 50 Hz 4m / min
Operating voltage 400V 50 Hz
Protection Class IP 55 DIN 40050
Motor power at 50 Hz 0.37 kW
FEM Class 2m
DC braking system 2 brakes
Noise level <67.5 dB (full load)
Loading wheel 6 pockets
RUD®  Load chain 5x15 mm
Number of chains 1
Chain weight 0.54 kg / m
Weight of the body -
Type of control Direct Control
Type of connector | Red Plug 400V EEC 16A - 3P + T
Climbing use permitted
Safety factor 10: 1
Load cell Optional
Stromag® Limit Switch with 4 switches Optional
Code Description

DMD320-05 Divo TWO 320 D8 Plus - 4m / min, 5m of galvanized chain and chain bag
DMD320-10 Divo TWO 320 D8 Plus - 4m / min, 10m of galvanized chain and chain bag
DMD320-15 Divo TWO 320 D8 Plus - 4m / min, 15m of galvanized chain and chain bag
DMD320-18 Divo TWO 320 D8 Plus - 4m / min, 18m of galvanized chain and chain bag
DMD320-20 Divo TWO 320 D8 Plus - 4m / min, 20m of galvanized chain and chain bag
DMD320-24 Divo TWO 320 D8 Plus - 4m / min, 24m galvanized chain and chain bag


DMD320-05B Divo TWO 320 D8 Plus - 4m / min, 5m of black chain and chain bag
DMD320-10B Divo TWO 320 D8 Plus - 4m / min, 10m of black chain and chain bag
DMD320-15B Divo TWO 320 D8 Plus - 4m / min, 15m black chain and chain bag
DMD320-18B Divo TWO 320 D8 Plus - 4m / min, 18m black chain and chain bag
DMD320-20B Divo TWO 320 D8 Plus - 4m / min, 20m black chain and chain bag
DMD320-24B Divo TWO 320 D8 Plus - 4m / min, 24m black chain and chain bag
