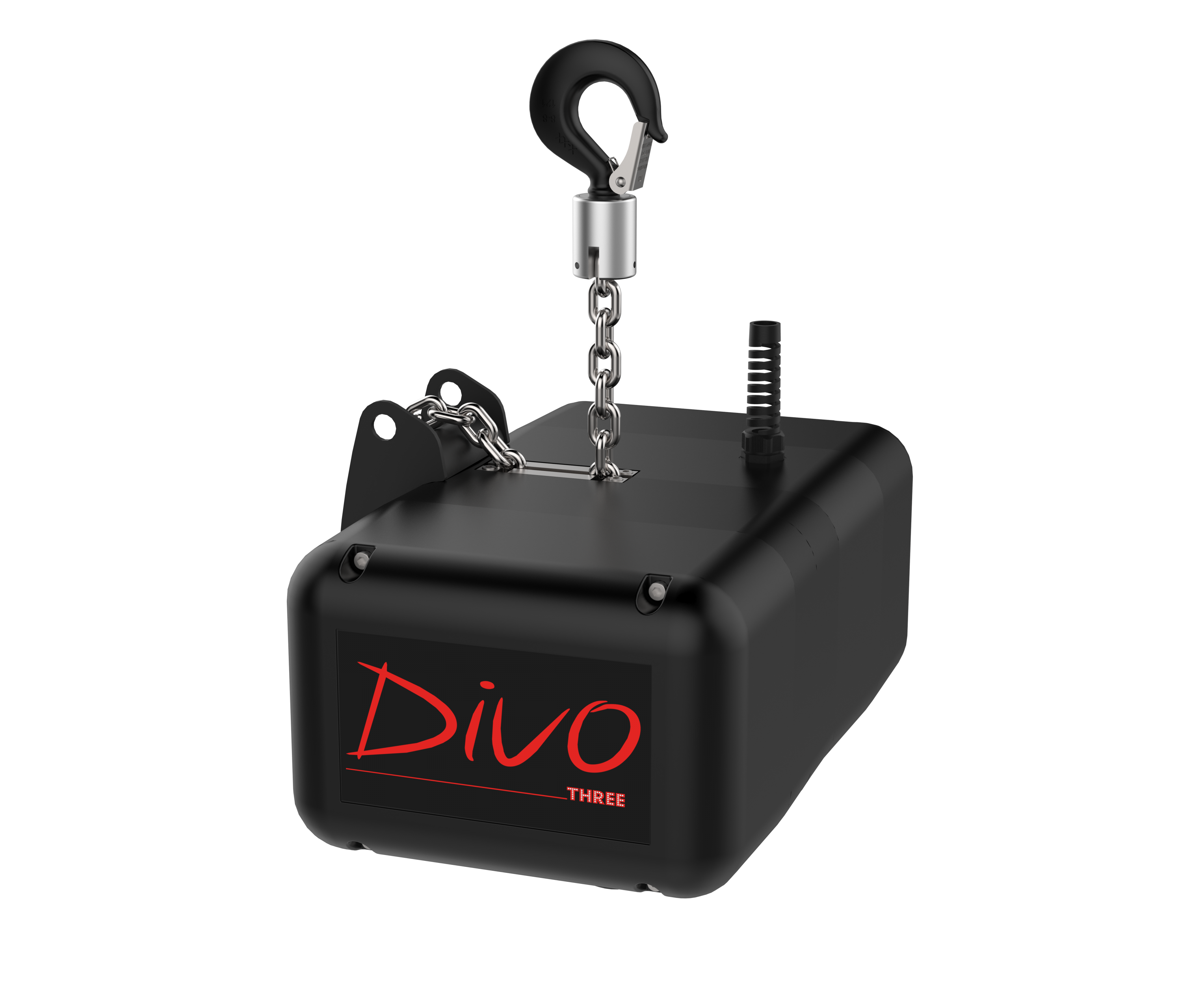

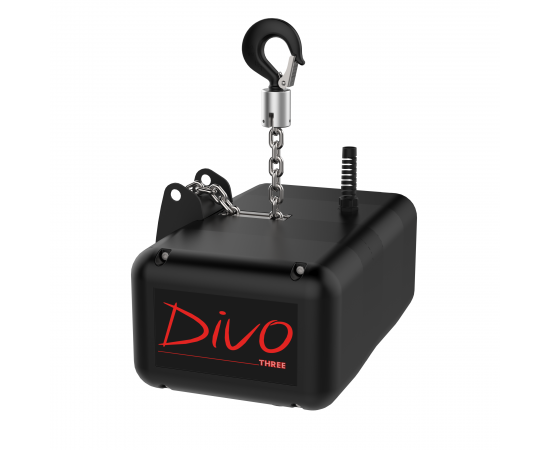

D8 Plus Divo Three 500Kg - 8m / min
Palan electric cu lant, tensiune directa, corp din aluminiu, sistem de ghidare a lantului conceput pentru a reduce riscul de blocare, carlig dublu pivotant.
Respecta ghidul IGVW SQP2
| Capacitate de incarcare | 500 kg |
| Viteza de ridicare la 50 Hz | 8m / min |
| Tensiunea de functionare | 400V 50 Hz |
| Grad de protectie | IP 55 DIN 40050 |
| Puterea motorului la 50 Hz | 0,72 kW |
| CLASA FEM | 2m |
| Sistem de franare DC | 2 frane |
| Nivel de zgomot | <67,5 dB (Incarcare completa) |
| Piulita de Incarcare | 5 alveole |
| Lant de Incarcare RUD® | 6,3x19 mm |
| Numar de lanturi | 1 |
| Greutatea lantului | 0,86 kg / m |
| Greutate corporala | 34 kg |
| Tipul de control | Control direct |
| Tip conector | Spin Roșu | 400V CEE 16A - 3P + T. |
| Utilizare inversa | Permis |
| Factorul de securitate | 10:1 |
Variante:
| Code | Description |
| DLC500-05 | Divo THREE500 D8 Plus - 8m / min, 5m of galvanized chain and chain bag |
| DLC500-10 | Divo THREE500 D8 Plus - 8m / min, 10m of galvanized chain and chain bag |
| DLC500-15 | Divo THREE500 D8 Plus - 8m / min, 15m of galvanized chain and chain bag |
| DLC500-18 | Divo THREE500 D8 Plus - 8m / min, 18m of galvanized chain and chain bag |
| DLC500-20 | Divo THREE500 D8 Plus - 8m / min, 20m of galvanized chain and chain bag |
| DLC500-24 | Divo THREE500 D8 Plus - 8m / min, 24m galvanized chain and chain bag |
| DLC500-05B | Divo THREE500 D8 Plus - 8m / min, 5m of black chain and chain bag |
| DLC500-10B | Divo THREE500 D8 Plus - 8m / min, 10m of black chain and chain bag |
| DLC500-15B | Divo THREE500 D8 Plus - 8m / min, 15m black chain and chain bag |
| DLC500-18B | Divo THREE500 D8 Plus - 8m / min, 18m black chain and chain bag |
| DLC500-20B | Divo THREE500 D8 Plus - 8m / min, 20m black chain and chain bag |
| DLC500-24B | Divo THREE500 D8 Plus - 8m / min, 24m black chain and chain bag |
