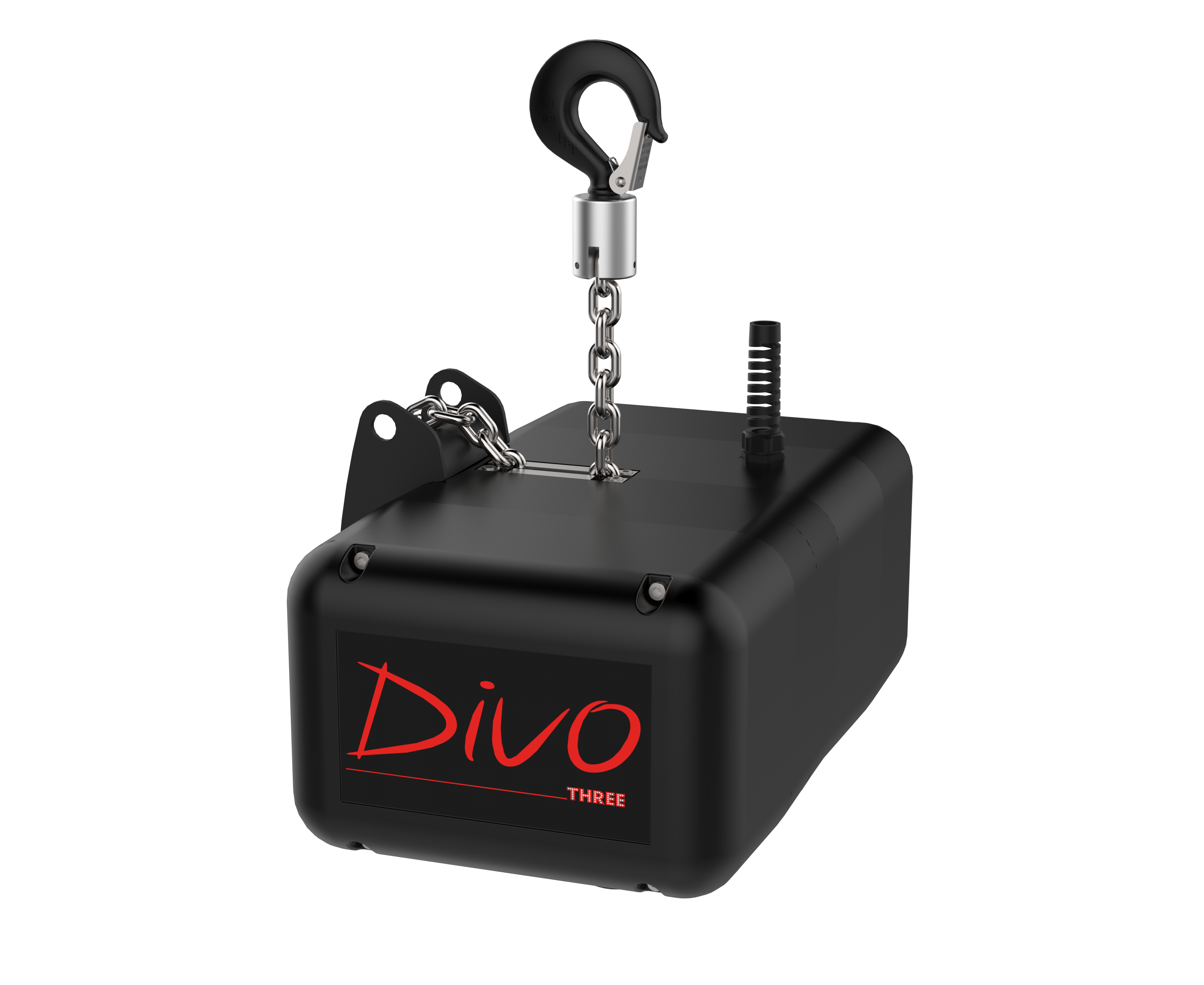

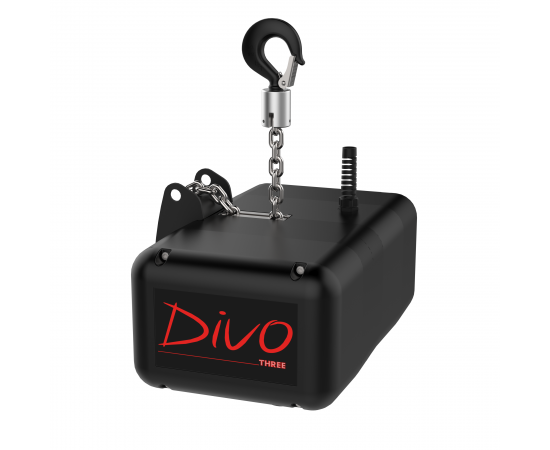

D8 Plus Divo Three 250Kg - 16m / min
Electric chain hoist, direct tension, aluminum body, chain guide system designed to reduce jamming risk, double swivel hook.
Complies with the IGVW SQP2 guideline
Low Voltage available.
| Load capacity | 250 kg |
| Lifting speed at 50 Hz | 16m / min |
| Operating voltage | 400V 50 Hz |
| Protection Class | IP 55 DIN 40050 |
| Motor power at 50 Hz | 0.72 kW |
| FEM Class | 2m |
| DC braking system | 2 brakes |
| Noise level | <67.5 dB (full load) |
| Loading wheel | 5 pockets |
| RUD® Load chain | 6,3x19 mm |
| Number of chains | 1 |
| Chain weight | 0.86 kg / m |
| Weight of the body | - |
| Type of control | Direct Control |
| Type of connector | Red Plug | 400V EEC 16A - 3P + T |
| Climbing use | permitted |
| Safety factor | 10: 1 |
| Load cell | Optional |
| Stromag® Limit Switch with 4 switches | Optional |
| Code | Description |
| DLB250-05 | Divo THREE 250 D8 Plus - 16m / min, 5m of galvanized chain and chain bag |
| DLB250-10 | Divo THREE 250 D8 Plus - 16m / min, 10m of galvanized chain and chain bag |
| DLB250-15 | Divo THREE 250 D8 Plus - 16m / min, 15m of galvanized chain and chain bag |
| DLB250-18 | Divo THREE 250 D8 Plus - 16m / min, 18m of galvanized chain and chain bag |
| DLB250-20 | Divo THREE 250 D8 Plus - 16m / min, 20m of galvanized chain and chain bag |
| DLB250-24 | Divo THREE 250 D8 Plus - 16m / min, 24m galvanized chain and chain bag |
| DLB250-05B | Divo THREE 250 D8 Plus - 16m / min, 5m of black chain and chain bag |
| DLB250-10B | Divo THREE 250 D8 Plus - 16m / min, 10m of black chain and chain bag |
| DLB250-15B | Divo THREE 250 D8 Plus - 16m / min, 15m black chain and chain bag |
| DLB250-18B | Divo THREE 250 D8 Plus - 16m / min, 18m black chain and chain bag |
| DLB250-20B | Divo THREE 250 D8 Plus - 16m / min, 20m of black chain and chain bag |
| DLB250-24B | Divo THREE 250 D8 Plus - 16m / min, 24m black chain and chain bag |
