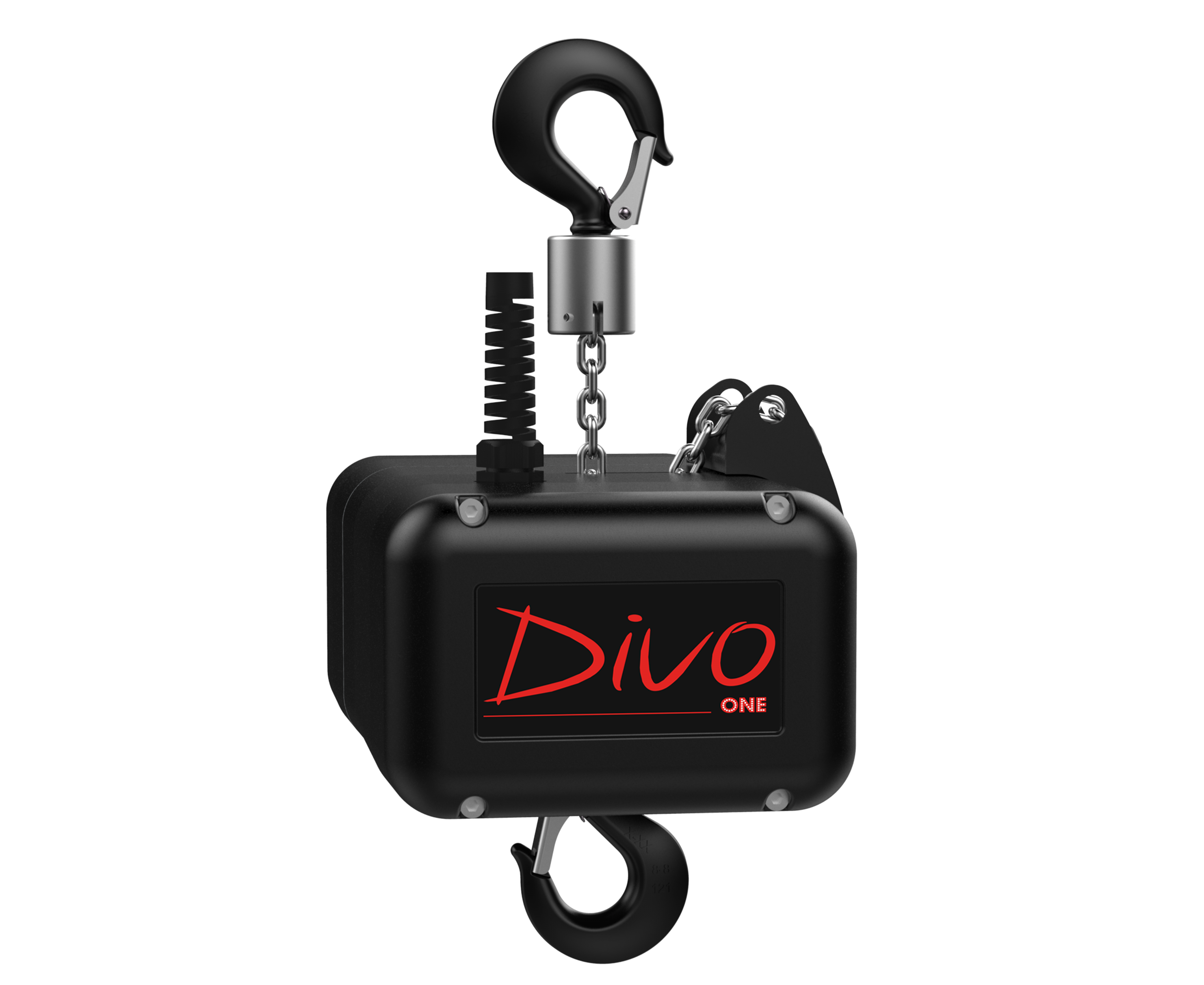

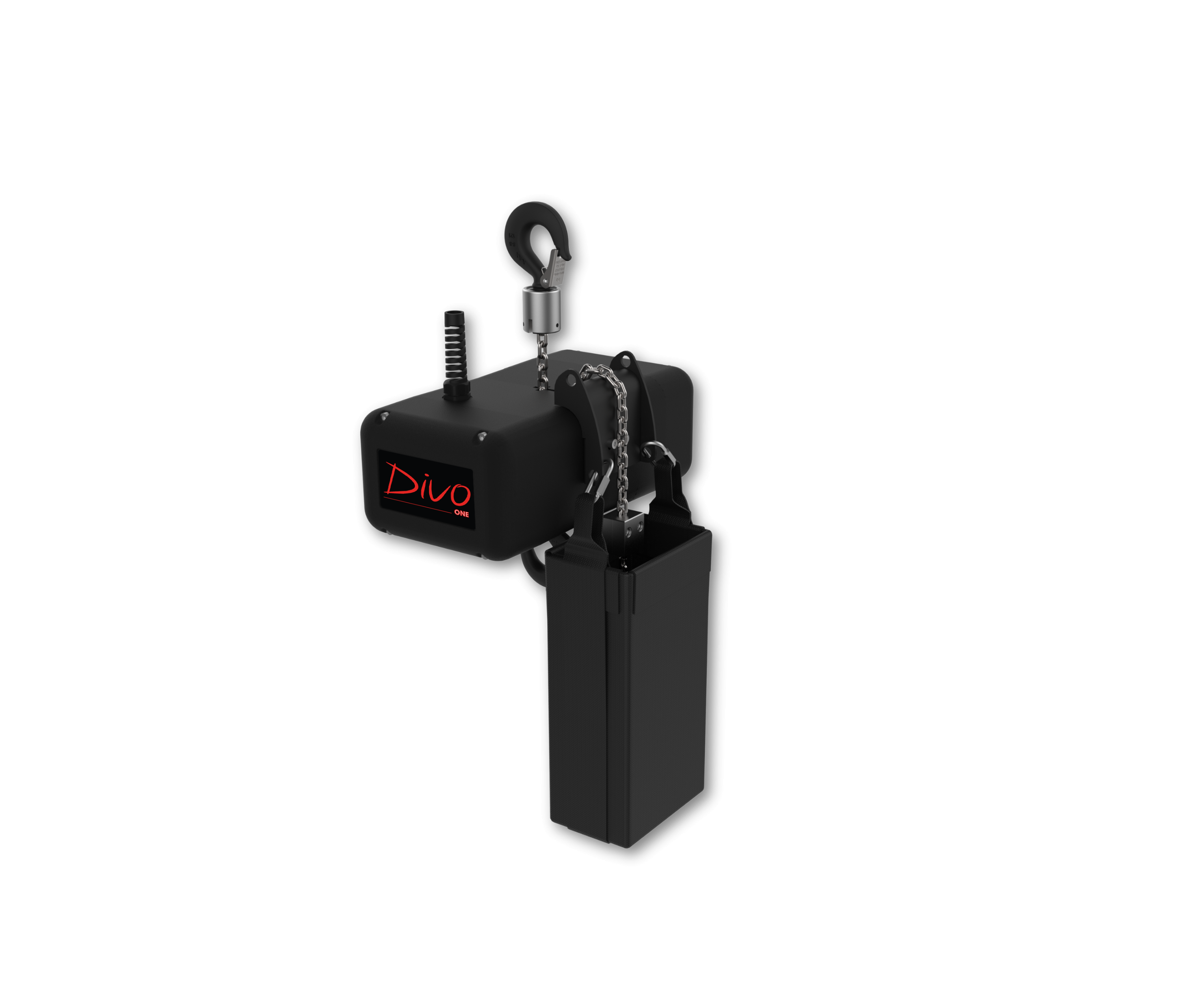

D8 Divo One 200KG 4m/min
Divo One 200kg D8 4m/min
- Code: DSA200
- Category : D8
Code: DSA200
Electric chain hoist, direct tension, aluminum body, chain guide system designed to reduce jamming risk, double swivel hook.
Complies with the IGVW SQP2 guideline
Electric chain hoist, direct tension, aluminum body, chain guide system designed to reduce jamming risk, double swivel hook.
Complies with the IGVW SQP2 guideline
| Load capacity | 200 kg |
| Lifting speed at 50 Hz | 4m / min |
| Operating voltage | 400 V - 50 Hz |
| Protection Class | IP 55 DIN 40050 |
| Motor power at 50 Hz | 0.18 kW |
| FEM Class | 1Bm |
| AC braking system | 1 brake |
| Noise level | <67.5 dB (full load) |
| Load wheel | 5 pockets |
| RUD® Load chain | 4x12 mm |
| Number of chains | 1 |
| Chain weight | 0.36 kg / m |
| Weight of the body | 11 kg |
| Type of control | Direct Control |
| Type of connector | Red Plug | 400V EEC 16A - 3P + T |
| Climbing use | permitted |
| Safety factor | 5: 1 |
| Handles | optional |
