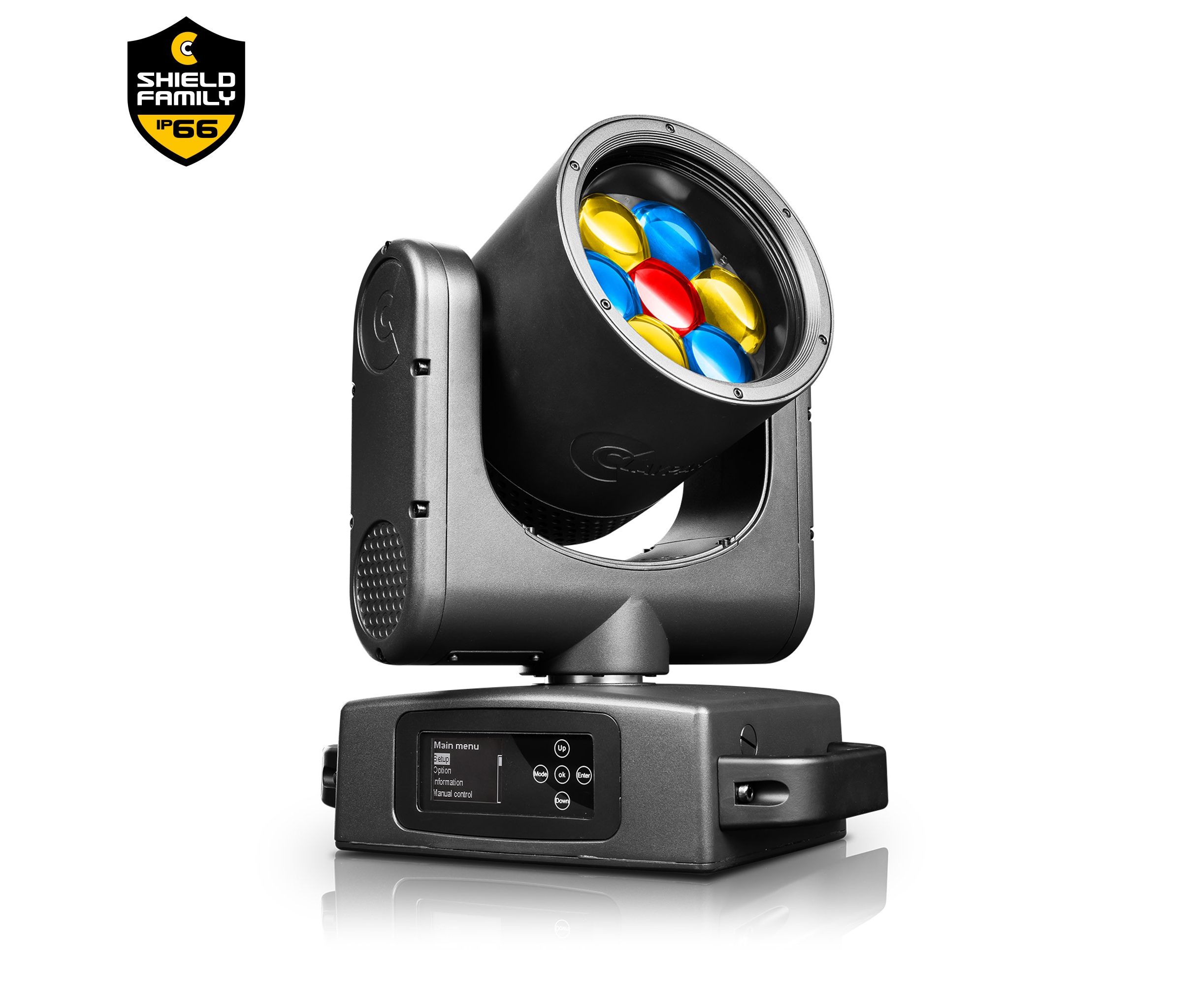

Clay Paky Mini-B Aqua PX

Main features at a glance:

• Compactness: Mini-B Aqua PX’s small footprint and light weight allow for easy integration into various setups and rapid pan and tilt movements, essential for creating dynamic lighting effects.
• Performance and Efficiency: equipped with a seven by 40W RGBW LED engine and Claypaky’s proprietary optical unit with a collimator and seven surface lenses for efficient light output with minimal power consumption, making it cost-effective and environmentally friendly.
• Pixel Mapping: controlling each LED separately for stunning visual effects, enhancing the creative potential of the fixture.
• Wide Zoom Range: from 4° to 55°, suitable for both narrow beam effects and wide washes.
• Weatherproof and Dustproof: with an IP66 rating, Mini-B Aqua PX is designed to perform reliably in outdoor settings; its total protection against dust ingress reduces the need for frequent maintenance, when used indoors.
• Lighting Effects: fifty pre-installed color macros and linear CTO correction (2500K to 8000K) suitable for precise color mixing and temperature adjustments. Crossfade channels enable smooth transitions between preset whites and RGBW values ensuring fluid color changes. The advanced 24-bit electronic dimmer with five curves balances colors throughout its dimming range for consistent light output.

• Light Source

  7 x 40W RGBW LEDs (7000K)

• Light Output

  3,420 lm

• Zoom range

  4° to 55°

• Effects

  Pixel mapping; 5-curve, 24-bit digital dimmer with output color balance; 2500K-8000K linear CTO; Pre-installed color macros; Crossfade channels between color and CTO, and between macros; Electronic strobe @ 25 f/sec



  Specs

  LIGHT SOURCE:

  • Source type: LED RGBW
  • Power: 40 W x 7 (Osram)
  • LED life expectancy: 50000Hrs  L70*
    *It may vary depending on various factors, as type of use and environment

  PHOTOMETRIC DATA

  • • Zoom range: 4° - 55°
    • Lm output: 3420 Lm (integrating sphere)
    • Front lens: Ø 153 mm
    • Optical syt.: High efficiency

  NOISE LEVEL

  • • Controlled by: Able to control linearly the speed of the fans
    • Fixed presets:
      • Silent mode: 40.2 dBA
      • Auto mode: 46.0 dBA
      • Theatre mode: 46.8 dBA
      • Constant mode: 50.3 dBA

  CONTROL and CONNECTIONS

  • Personalities:
    • 3 modes: 22 /41 / 45 Control channels
    • Pixel engine: 16 channels
    • strobe engine: 8 channels
  • Protocols:  DMX , Art Net, sACN, RDM
  • Connectors:
    • Locking 5 pin XLR IN/ OUT
    • RJ45 IN /OUT
  • Power con: PowerCon True1 IN/OUT
  • Web server: Built in
  • CloudIO: Fully compatible

  DYNAMIC EFFECTS

  • Colors:
    • RGB+W color mixing 16bit
    • Linear CTO 2500K to 8000K
    • Built in macros with enhanced pixel control
    • Preset macro colors
  • Movement:
    • Tilt: 260° - 16bit (3.5 sec Max speed)
    • Pan: 540° - 16bit (5.4 sec Max speed)
    • Automatic repositioning
    • Fast/Normal/Boost speed selectable by Function channel
  • Beam:
    • Motorized Zoom
  • Dimmer/Shutter:

    • High resolution electronic Dimmer - 24 bit, 5 curves
    • High speed electronic Strobe

  HARDWARE and SOFTWARE

  • Long life self-charging battery
  • Display Graphic LCD backlit b/w Display
  • Firmware upload from another fixture
  • Firmware Upgrade via Web Server
  • Diagnostic
  • DMX monitoring
  • Remote access through RDM

  HOUSING

  • Aluminium and steel structure with plastic covers
  • Two side handles for transportation
  • IP 66 protection rate
  • Working in any position
  • Hanging system: with fast lock Omega clamps (1/4 turn) on the base
  • Optional safety chain

  ELECTRICAL

  • Operating voltage: 100 120 / 200 240V, 50/60 Hz
  • In/Out MAX: In/Out Max: 2300VA, 6(2) fixtures @ 200 240Vac (@ 100 120Vac); Max 8.25A
  • Power Supply: Electronic auto range with active PFC
  • MAX power consumption: 375 W

  THERMAL SPECIFICATION

  • Max ambient temperature: 45°C (113°F)
  • Min ambient temperature: -20°C (-4°F)
  • Max temperature of the external surface: 90°C (194°F)
  • Total heat dissipation: 956,6 BTU/hr ±10% / 1008 kJ/hr ±10 %

  SAFETY SPECS

  • Minimum distance of illuminated objects 0.2 meters (8”)
  • Minimum distance from flammable materials 0.2 meters (8”)
  • Protections:
    • Thermally protected power supply (overheating and cooling failure)
    • Forced ventilation with axial fans
    • Fuse T6.3A 250V + battery fuse

  COMPLIANCE

  • CE Marking (in conformity to the following:
    • 2014/ 35/EU Low Voltage Directive (LVD)
    • 2014/30/EU Electromagnetic Compatibility (EMC)
    • 2011/65/EU Restriction of the use of certain hazardous substances (RoHS)
    • 2009/125/EC EcoDesign requirements for Energy related Products (ErP)
  • UKCA: conforms to UK Regulations:

    • S.I. 2016 N. 1101
    • S.I. 20 16 N. 1091
    • S.I. 2012 N.3032
    • S.I. 2021 N. 745
  • cMETus Listed:
    • UL 1573:2003
    • CSA C22.2 N. 166:2015

  PACKAGING

  • Carton box + Polystyrene
  • Carton box + Foam shell
  • Flight case + Foam shell (6 positions)

  WEIGHT - SIZE

  • Weight: 12.7 Kg (27.9 lbs)
  • Base dim.s: 194 x 331 mm 7,64 x 13,03 In
  • Height with vert head (h): 415 mm 16,34 In
  • Distance between two fixtures: 400mm

  ACCESSORIES

  • Omega bracket: 1 x 433060-801 (Included)
  • ETL Power: CAB02B-802 (Included)
    *Cord 1.5 m (bare end with IP65 PowerConTrue1 conn.)
  • Flight case (6 pos):  CF1023F (Optional)
  • Foam shell: F21339-001 (Optional)
  • Safety Chain: 105015 -802 (Optional)
  • Clamp: C21070 (Optional)
  • PowerCon True1 con.: CON00O (Optional)
