QuickQ Rack

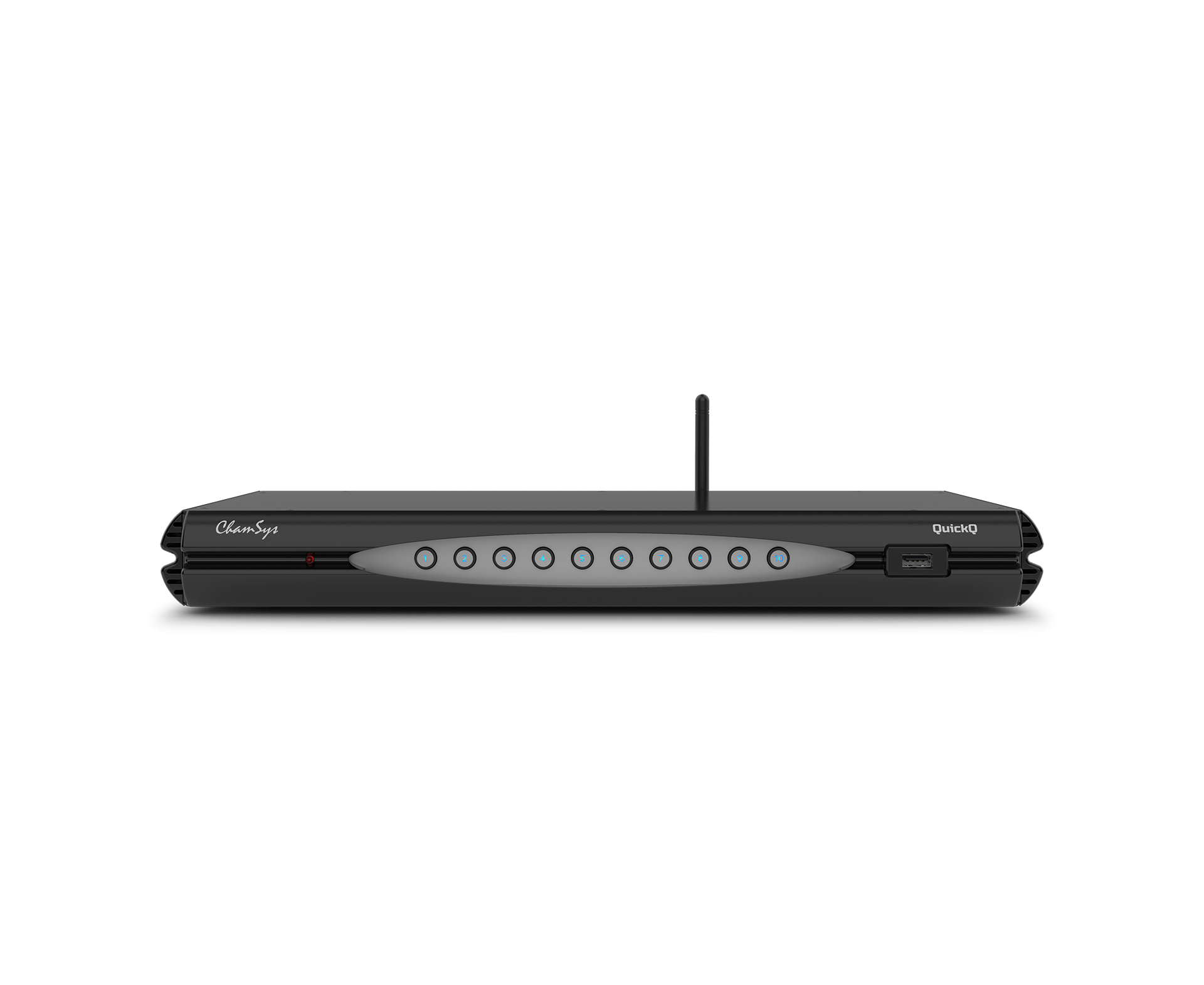

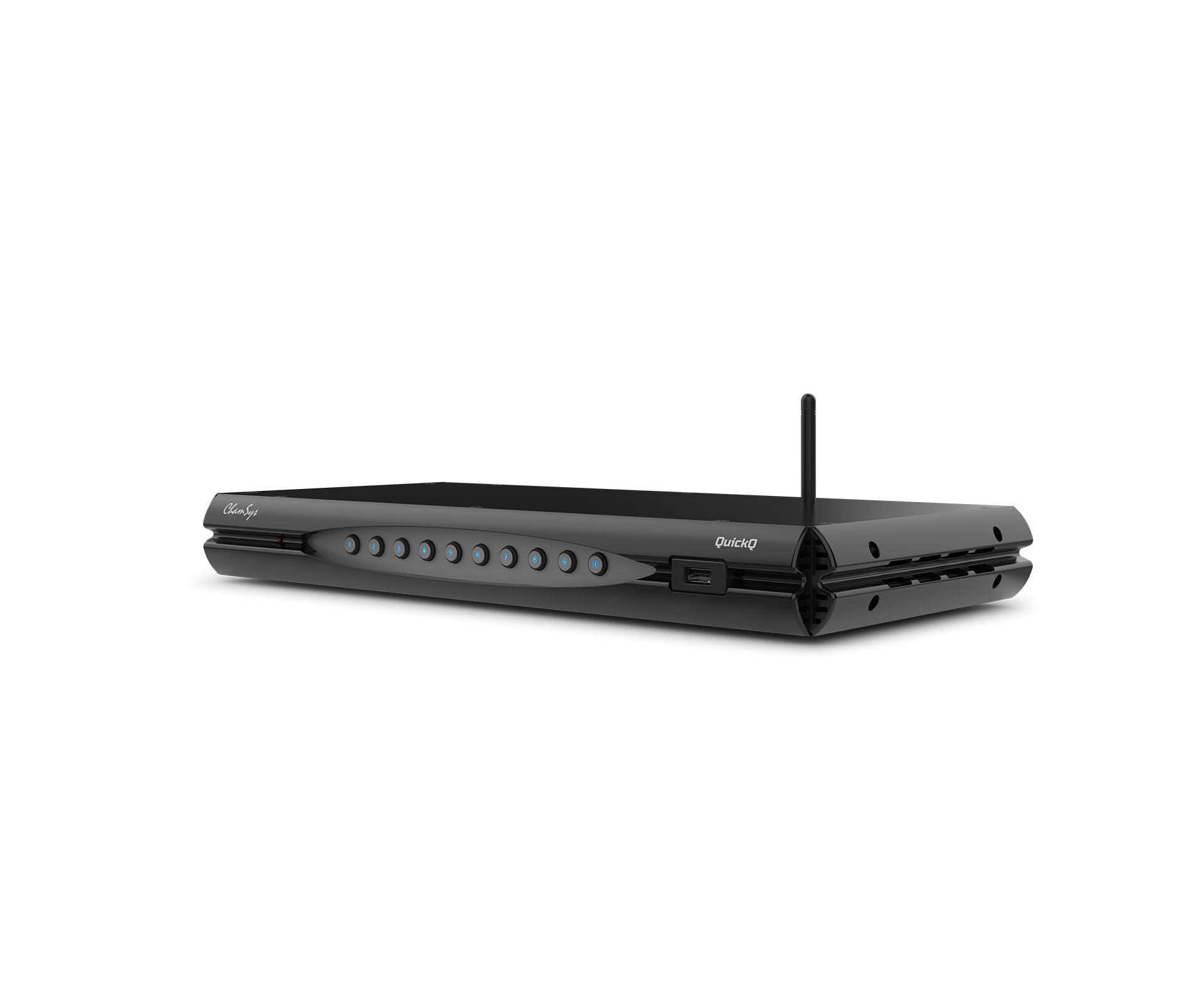

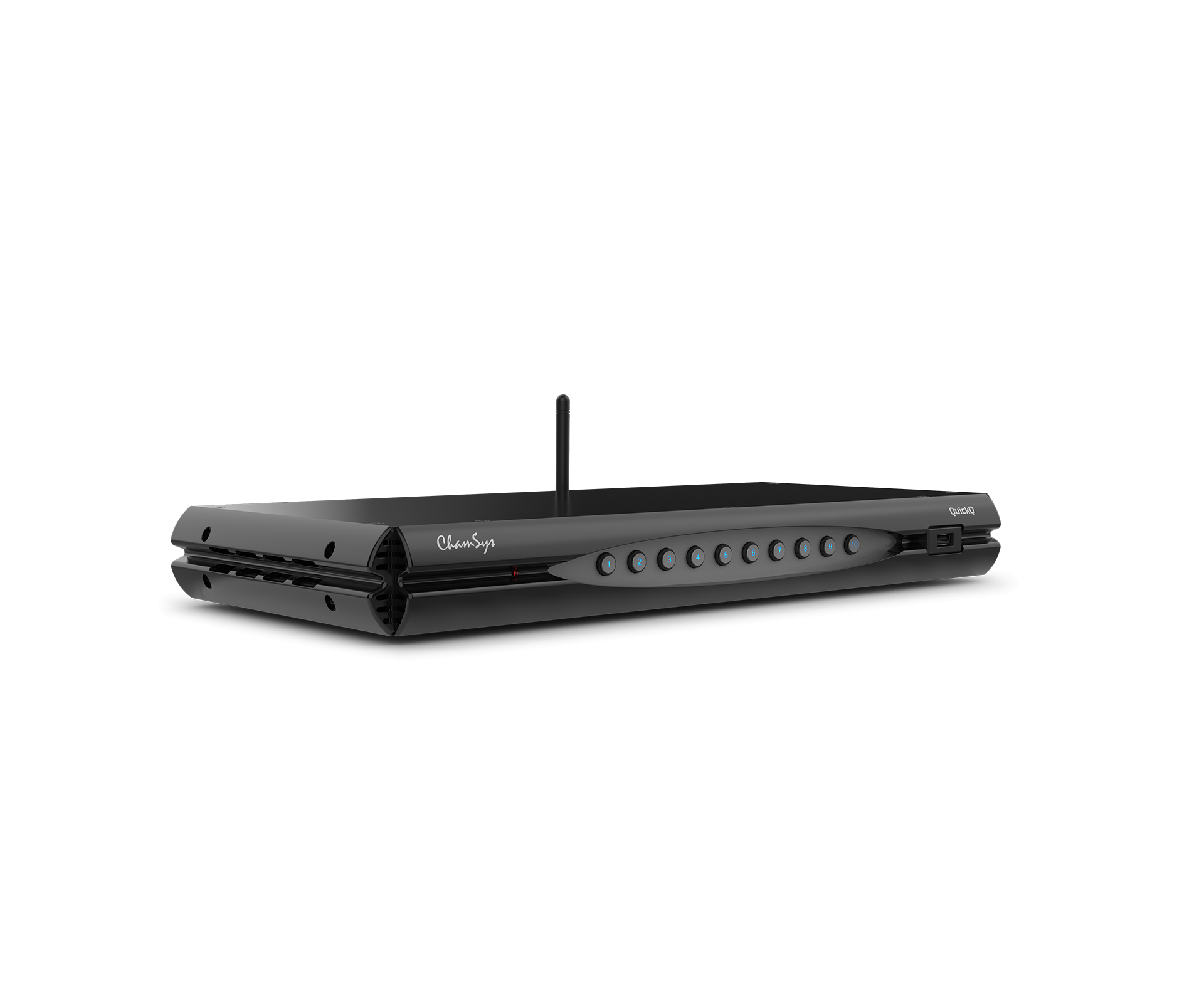

QuickQ Rack is a small rack mountable version of the QuickQ console designed for installations. It features the same operating system as QuickQ series consoles, but is designed to operate as a remote system without physical user control.
Featuring 10 playback/execute buttons on the unit, the QuickQ Rack is ideally paired with 10Scene wall plates.
Supporting four universes QuickQ Rack is ideal for installations, control rooms and bars. The unit can be used as a desktop box or rack mounted with the supplied rack ears.

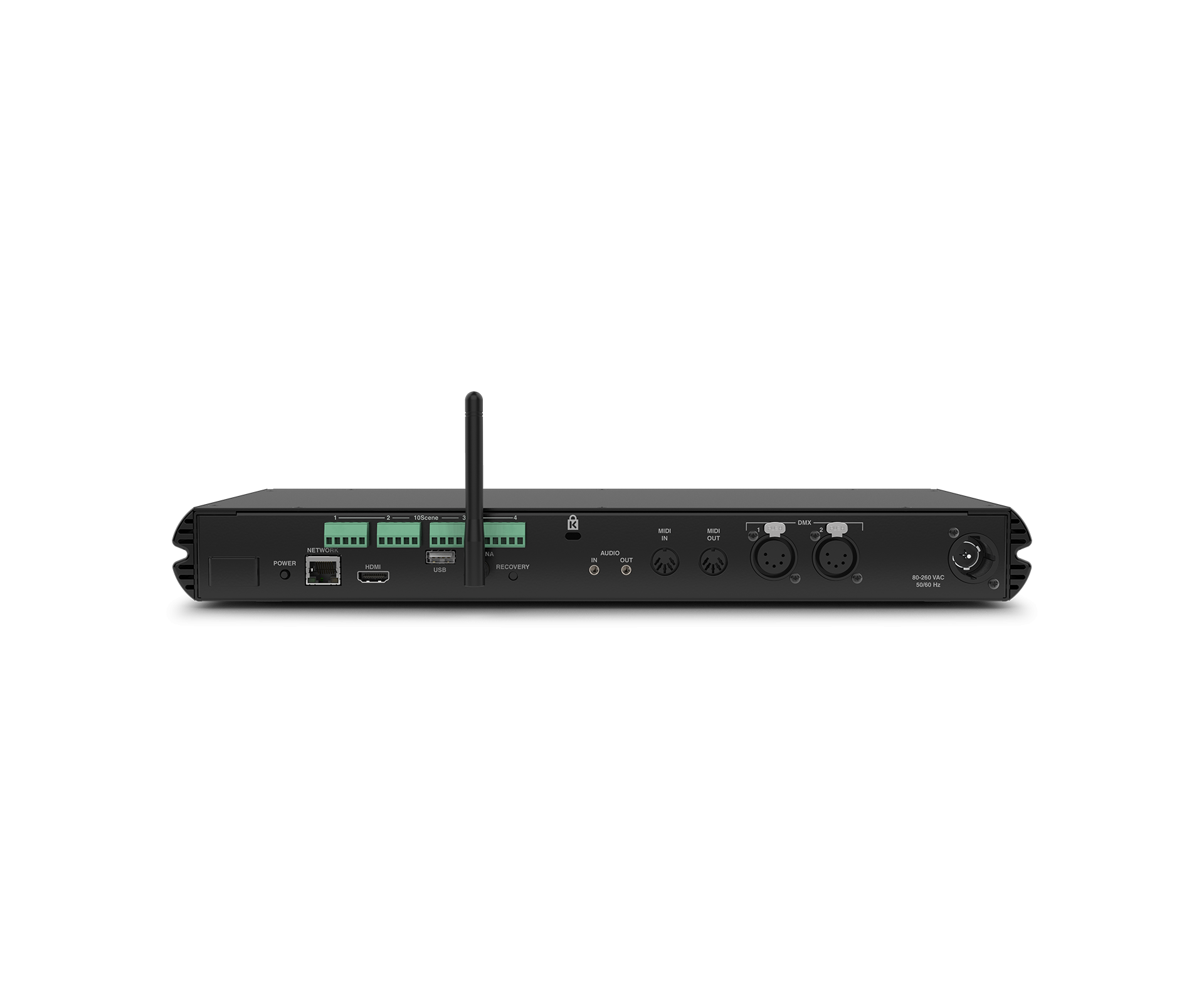

Hardware Specifications:
- Universes supported: 4
- Direct DMX Outputs 5-Pin XLR: 2
- 10Scene buttons: 10
- External Monitor: 1920 x 1080 HDMI
- Inbuilt Wi-Fi: Yes
- Network Port: 1
- USB Ports: 2
- Audio Input: 1
- Audio Output: 1
- MIDI Ports in/out: Yes
- TrueCon Power Input: 90-250v AC
Software Specifications:
- Max Number of DMX Channels: 2048
- Max Number of Fixtures Supported: 2048
- Max Number of Scenes: 10
- Midi & Midi Timecode Supported: Yes
- OSC Supported: Yes
- RDM Autopatch for fast show patching
- Fixture library of over 30,000 fixture files
- Built in FX generator
- Colour picker and Gel inbuilt Gel library
- Offline designer software available for Windows and Mac
- Supported fixtures: All - LEDs, Dimmers & Moving Lights
Rack Weights and Dimensions:
- Width (without ears): 403mm
- Depth: 195mm
- Height: 45mm
- Weight: 3.1kg
Included Accessories:
- Wi-Fi Antenna: 1
- Rackmount Ears: 2
- 10Scene Connectors: 4
- Neutrik powerCON TRUE1 Power Cable: 1
