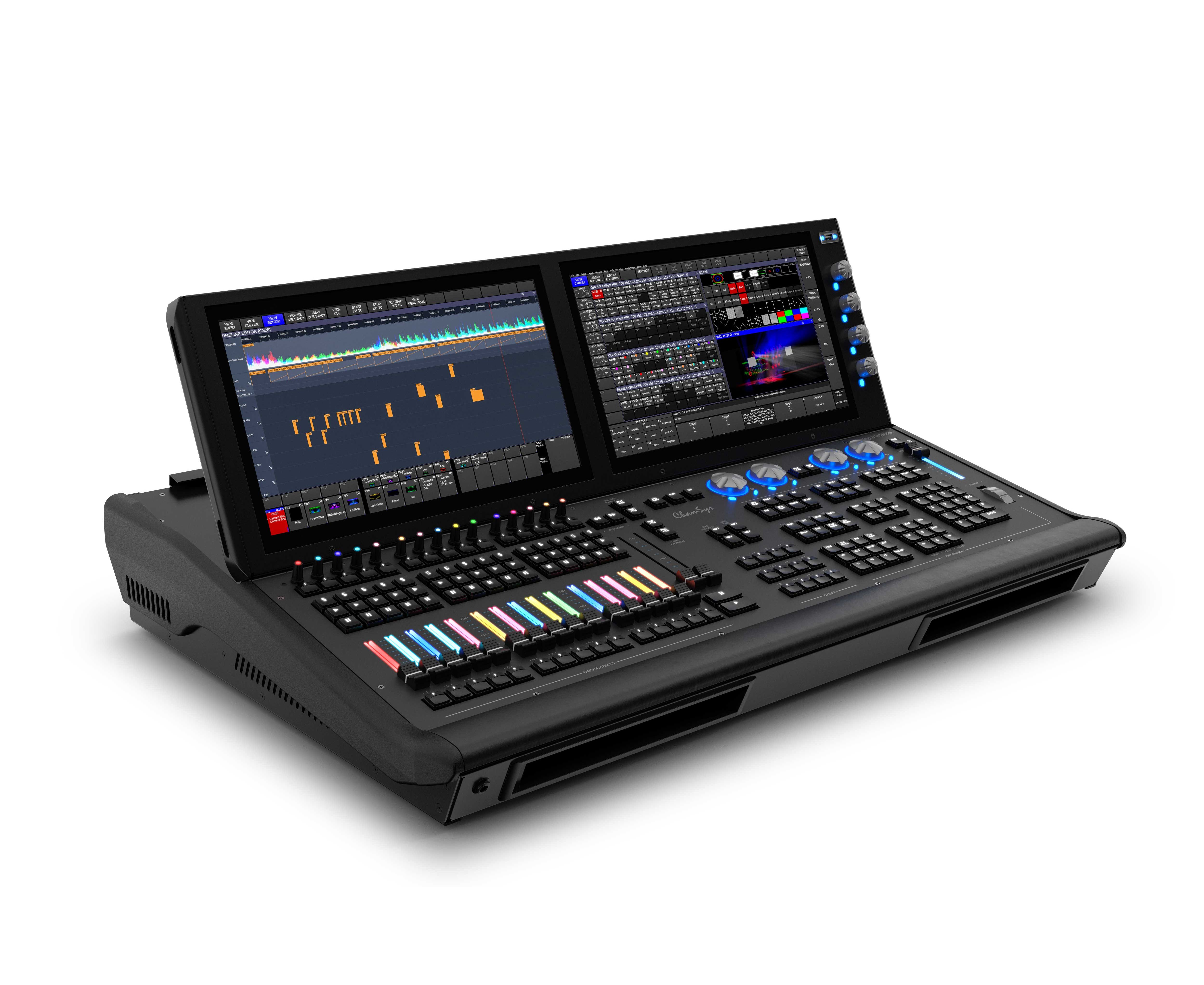

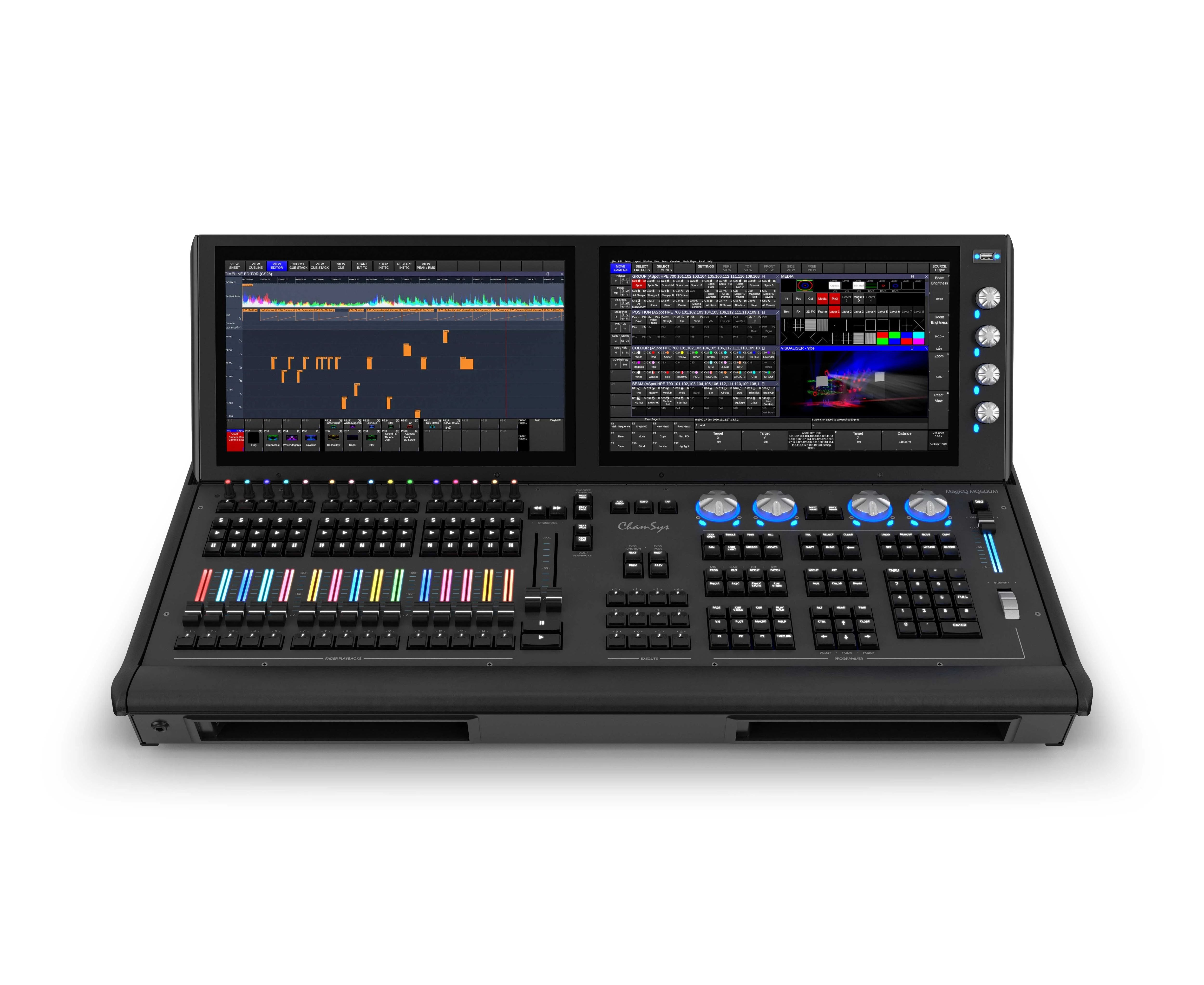

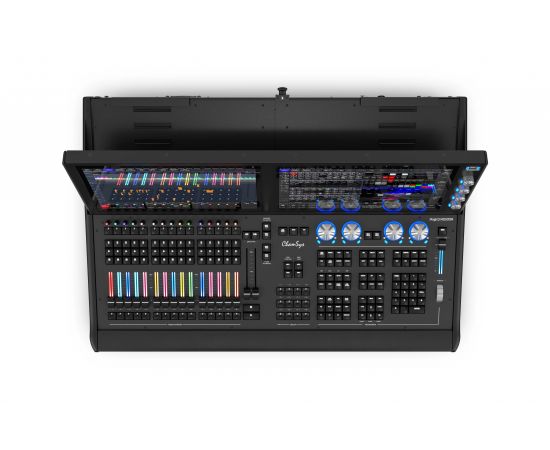

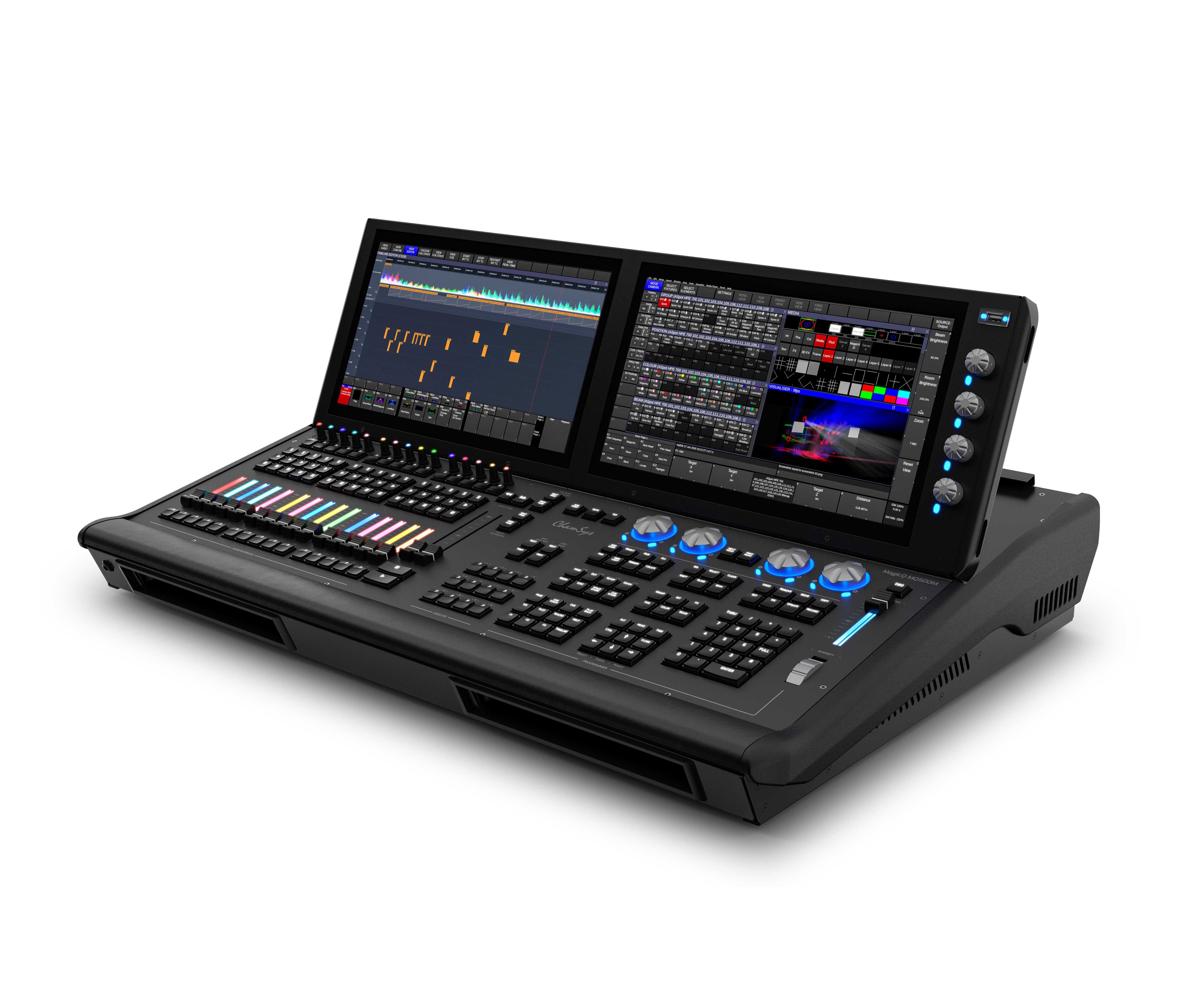

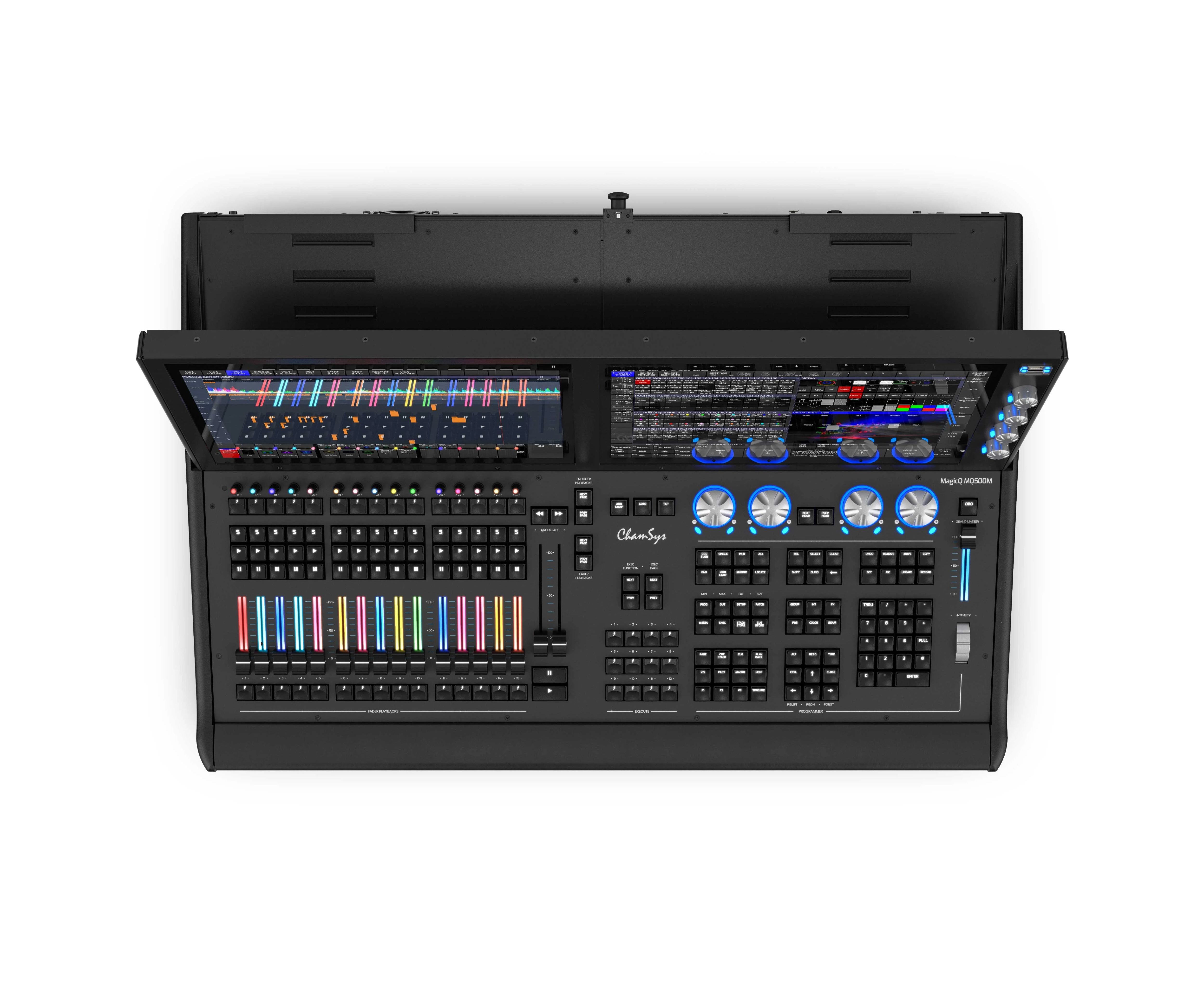

ChamSys MagicQ MQ500M+ Stadium Console
MagicQ MQ500M+ Stadium Console - ChamSys
At home on the largest of shows, MagicQ MQ500M+ Stadium supports 400 universes direct from the console without the need for external processing. MQ500M+ introduces the ability to expand screen real estate via its two Display Port++ External Monitor ports, and adds inbuilt Wi-Fi for connection of Remote Focus application and an inbuilt 4-port Gigabit Network Switch.
MQ500M+ features RGB-illuminated faders and encoder playbacks, with 15 fully-motorised fader playbacks, 15 encoder playbacks and 12 backlit multi-purpose Macro/Execute/Playbacks/Palette keys, giving the console a total of 42 playbacks and providing programmers with a powerful work station well-suited for Concert & Touring, TV & Broadcast, Live Events, House of Worship and Theatre applications.

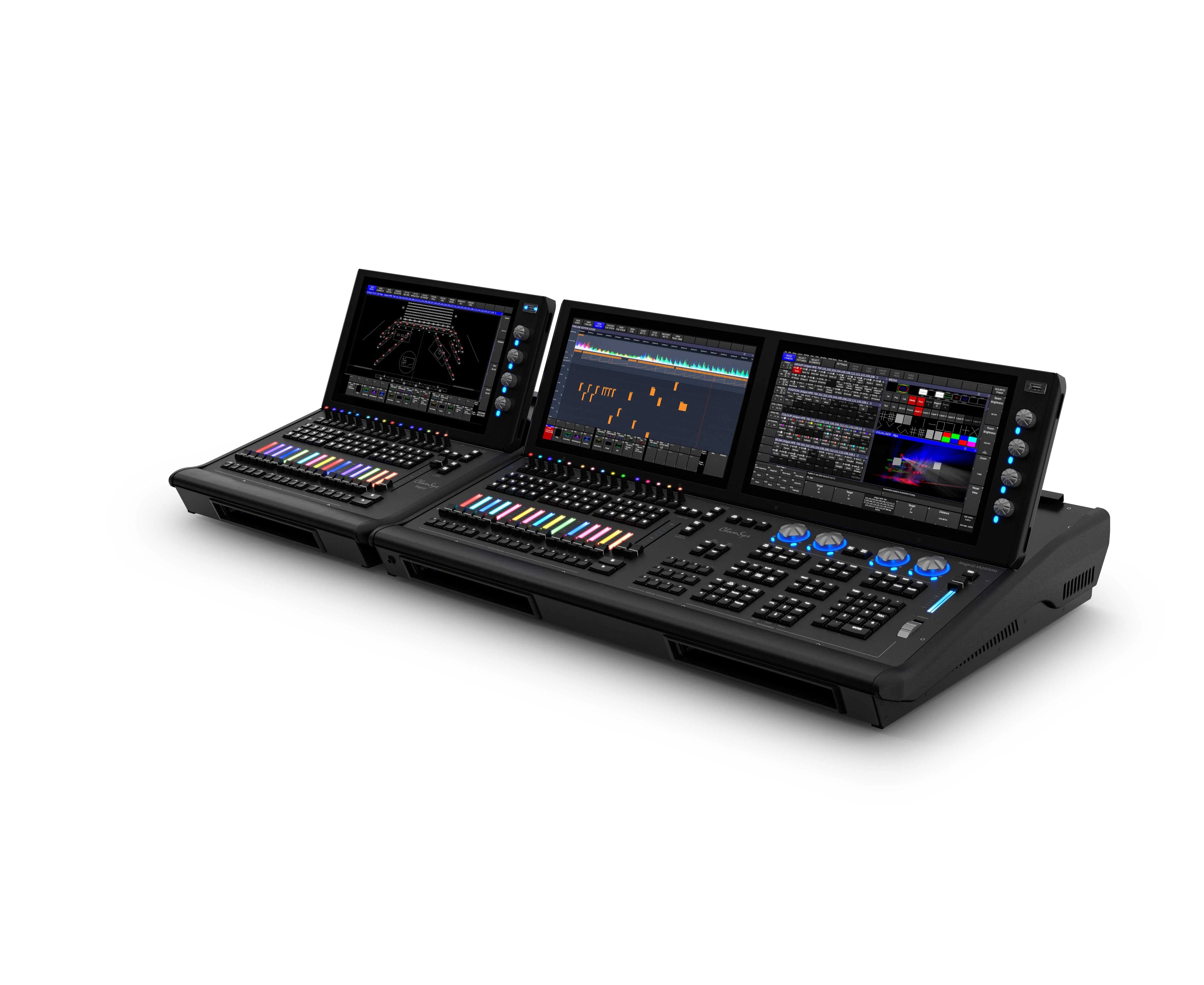

MQ500M+ also features dual HD resolution multi-touch 15” displays with adjustable viewing angles and multi-touch gesture support, for a more intuitive workflow. For additional control, connect a MagicQ MQ500M Stadium Wing and get even more playbacks and another touchscreen display as well.
MQ500M+ Stadium has inbuilt MagicVis 3D visualiser with high quality beam and gobo rendering, enabling you to pre-program shows offline and save time onsite. This versatile console comes with 4 DMX ports, an intensity wheel and 100-mm split crossfaders for theatre control.
Overview:
- 400 universes direct from the console
- 15 fully motorised fader playbacks
- 15 encoder playback with RGB indicators
- 12 multi-purpose Macro/Executes/Playbacks keys
- RGB illumination of playbacks
- Backlit buttons
- Dual Inbuilt 15" Multi HD touch displays
- Two Display Port++ External Monitor Support
- Inbuilt Wi-Fi for connection of Remote Focus application
- Inbuilt 4-port Gigabit Network Switch
- 4 DMX ports

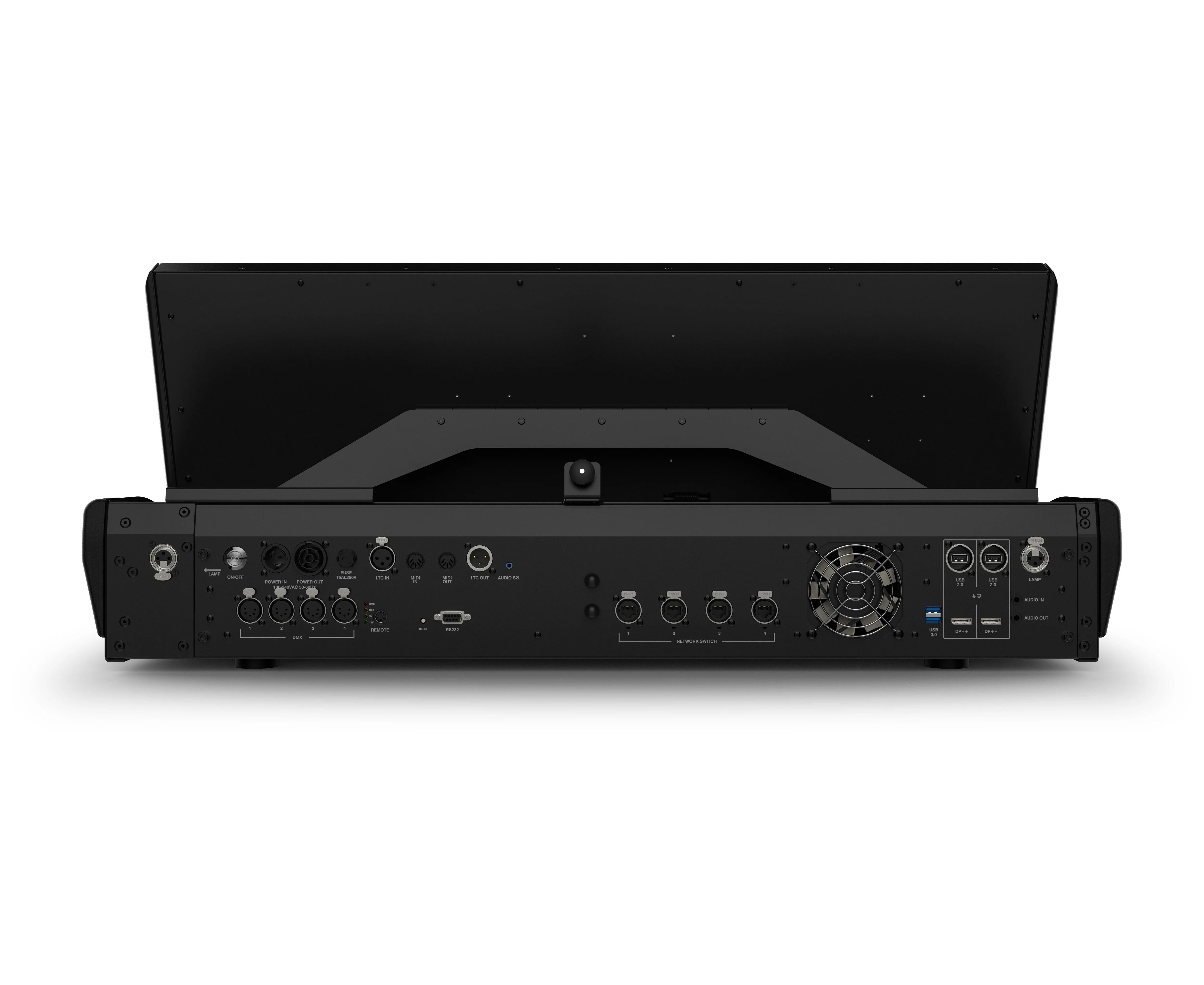

- Audio In/Out on the Rear Panel
- Power Out for MQ500M Stadium Wing
- Up to 8 touch displays support (4 via remote network)
- Dual motorised 100mm crossfaders ideal for Theatre
- Inbuilt MagicVis Visualiser with full rendering of beams and gobos
Hardware Specifications:
- Universes direct from the console (via Artnet/sACN/Pathport): 400
- Direct DMX Outputs: 4
- Motorised Playbacks: 15
- Encoder Playbacks: 15
- Macro/Execute/Playback Section keys: 12
- Total no of Playbacks: 42 (15+15+12)
- Dual Motorised Cross Faders: Yes
- Attribute Encoders: 8
- Backlit Keys: Yes
- Illuminated Playback/Encoders with RGB control: Yes
- Intensity Wheel: 1
- Network Ports: 4 (Gigabit)
- In-built Wi-Fi: Yes
- Inbuilt 15" HD Multi-Touch Displays: 2
- External Monitors DP++ Port: 2
- USB Ports, including 2 High Power USBs: 6
- Audio Input (1 channel, 7 band): Yes
- Audio Input: Yes
- Audio Output: Yes
- MIDI Ports 1 in and out: Yes
- LTC Timecode Ports in and out: Yes
- Remote Input: Yes
- Inbuilt UPS: Yes, uses 12v Lead-Acid Battery
- Front Storage Pockets: 2
- Power Input, Neutrik powerCON TRUE1 110 to 240 VAC
- Power Output, Neutrik powerCON TRUE1
Software Specifications:
- Max Number of DMX Channels: 204,800
- Max Number of Fixtures Supported: 204,800
- Max Number of Cues: 5000
- Max Number of Cue Stacks: 2000
- Max Number of Groups: 5000
- Max Number of Palettes: 4096
- Number of Media Server Layers Supported: 50 (each different content)
- Numbers of Shows: Virtually unlimited (500GB SSD)
Included Accessories:
- Dual Colour Desk lights: 2
- Dust cover: 1
- Neutrik powerCON TRUE1 Power Cable: 1
- Monitor arm with VESA mount: 1
- USB Keyboard: 1
- USB Mouse: 1
