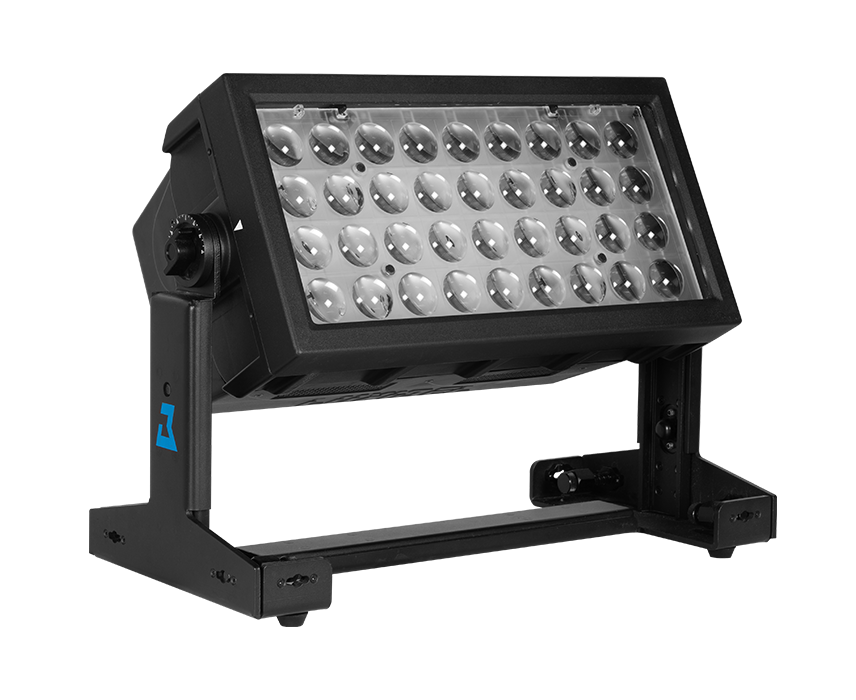

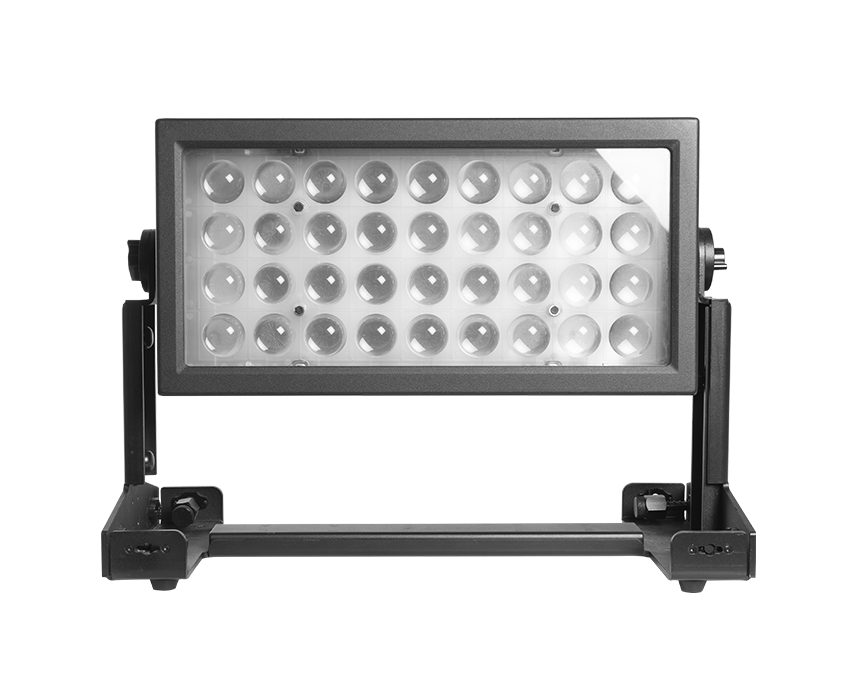

B P9Z
36x 15W LED RGBW quick zoom wash light
The B P9Z is a powerful RGBW wash fixture with a quick zoom of 7° - 58°. Every line can be controlled individually for effects and equal coloring of buildings/walls. Thanks to its very versatile bracket, you can suspend this fixture in every way possible: you can even make a line array of lights with them. They come with a honeycomb for unique applications.
- Extremely bright
- Saturated colours
- High power RGBW LED
- Beautiful dimming and colour mix
- Outdoor use
- Individual line control
- Full alu and stainless steel unit
- TÜV SÜD US Certification pending
- Refresh rate: 3.000 Hz
- Floor stand, truss mount, arrayable
- Quick lock omega bracket
PHYSICAL
Dimensions (WxHxD) 512 x 326 x 244 mm
Packiging dimensions (WxHxD) 575 x 410 x 395 mm
Nett weight 16,9 kg
Gross weight 19 kg
MOUNTING OPTIONS
Hanging 2x Omega bracket with 2x 1/4 turn quick lock fastner
Standing 4x rubber feet
2nd supension / safety wire 1x eye in the bottom of the fixture to pass a safety wire or carabiner
Arrayable Horizontal & vertical
CONTROL
Menu control Via 2.4" TFT display with 4 touch buttons
In/Link XLR 5 pin
Control DMX512, master/slave
DMX mode 3/5/17/23 channels
Dimmer mode LED, halogen
OPTICAL
Beam angle 7° - 58°
Light output RGBW 7° 38800 lux @ 2m | 11450 lux @ 4m | 4287 lux @ 6m
Light output RGBW 58° 4690 lux @ 2m | 1198 lux @ 4m | 513 lux @ 6m
Colours RGBW
Control In 4 segments of 9 LED horizontal
Strobe 0-20 Hz
Dimming curves 4
ELECTRICAL
Fixture rated power 500W
Input power 100 - 240V ~ 50/60 Hz - Auto switching power supply
LED engine 36x 15W RGBW
In/Link PowerCON TRUE1 - max link current 10A
Refresh rate 3000 Hz
ENVIRONMENTAL
IP rating IP65
Cooling Forced air cooling
ACCESSORIES
1x Powercable Included
1x Honeycombe Included
2x Omega bracket Included
P9 Z
