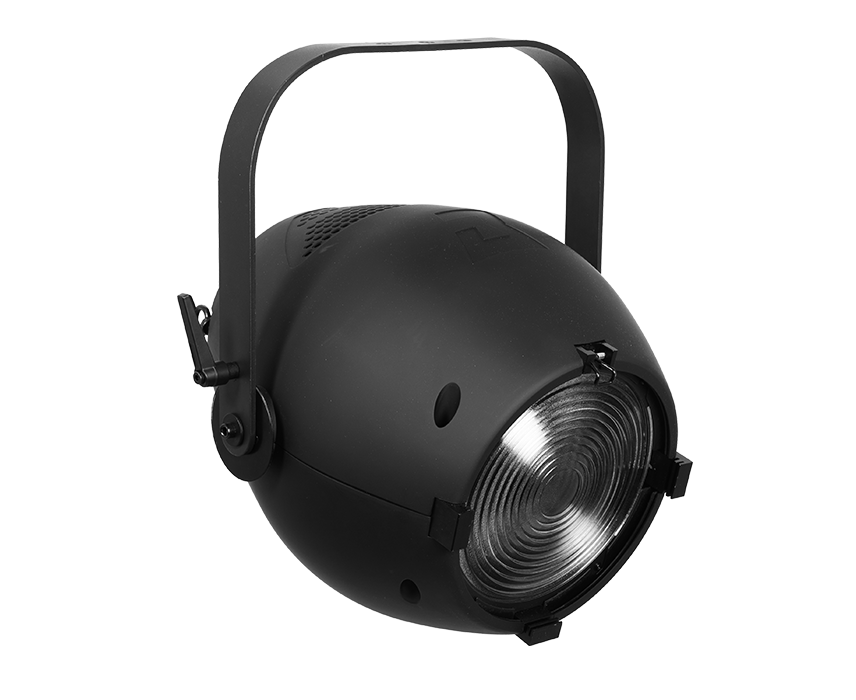

B EXPO200MWW
High CRI fresnel
The B EXPO200MWW is a high power LED fresnel light specially designed for high demanding customers. It delivers a very powerful and high-quality wash light. The specific feature set and nice design make it the ideal tool for high power applications in exhibitions, museums, shops, and everywhere else where high power quality light is required.
- Safety Eye
- Silent mode
- 16-bit dimming
- Adaptable frequency rate
- Holds dim value when powercut
- Color-matched with B Expo200/350
- CE & US pending by TÜV Rheinland
APPLICATIONS
Theatre
Yes
Architainment
Yes
Film & Television
Yes
Live entertainment
No
Exhibition, museum & shops
Yes
OPTICAL
Beam angle
15°-45°
Colours
3.000K
Refresh rate
Adaptable 600 - 4.000 Hz
Strobe
0-20 Hz
CRI
98 Ra
TM30
Rf = 92 | Rg = 99
PHYSICAL
Dimensions (WxHxD)
404 x 320 x 467 mm | 15.9 x 12.6 x 18.4 in
Packing dimensions (WxHxD)
439 x 386 x 511 mm | 17.3 x 15.2 x 20.1 in
Net weight
10 kg | 22.1 lb
Gross weight
11 kg | 24.3 lb
Cooling
Heat sink + air cooling
CONTROL
Menu
OLED display with 4 buttons
Control
DMX/RDM, manual
DMX mode
1/4/5 channels
Dimmer mode
16-bit dimming
In/Link
XLR 5-Pin
Zoom
Manual
Movement
One hand tilt locking
ELECTRICAL
Fixture rated power
220W
LED engine
200W 3.000K
Input power
100 - 240V ~ 50/60 Hz | Auto switching power supply
Power factor
0.96
In/Link
powerCON TRUE1 | max link current: 10A
IP rating
IP20
MOUNTING
Hanging
3x M12 hole
Standing
N/A
2nd suspension/safety wire
1x eye in back of the unit to pass carabiner
PHOTOMETRIC DATA
Light output 15° @ 5m
4.630 lux
Light output 15° @ 10m
1.190 lux
Light output 15° @ 15m
582 lux
Light output 45° @ 5m
881 lux
Light output 45° @ 10m
395 lux
Light output 45° @ 15m
137 lux
