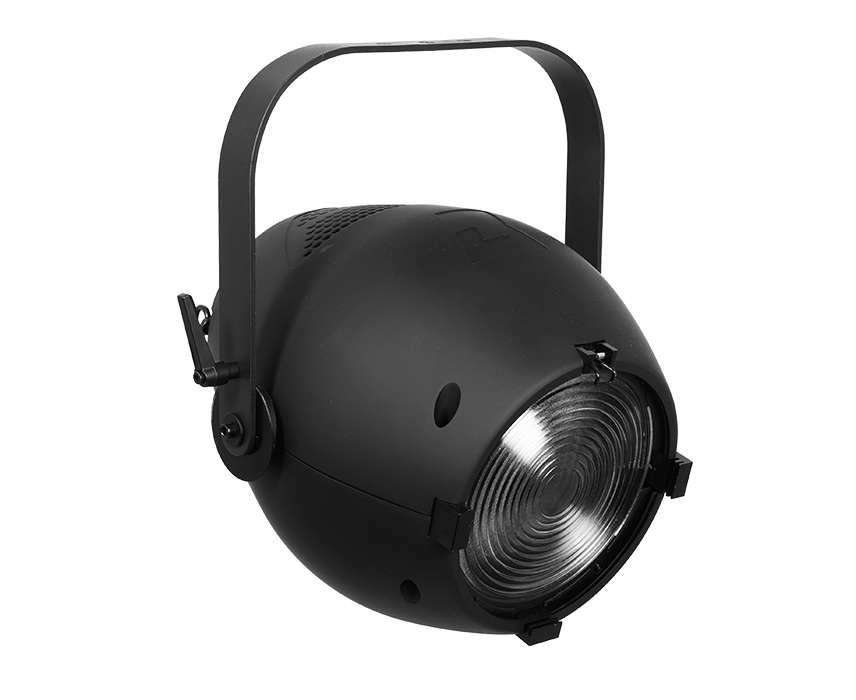

The B EXPO200MCW is a high power LED fresnel light specially designed for high demanding customers. It delivers a very powerful and high-quality wash light. The specific feature set and nice design make it the ideal tool for high power applications in exhibitions, museums, shops, and everywhere else where high power quality light is required.

• Safety Eye
• Silent mode
• 16-bit dimming
• Adaptable frequency rate
• Holds dim value when powercut
• Colour matched with B Expo100/350
• TÜV SÜD GS, CE & US Certified

APPLICATIONS

Theatre

Yes

Architainment

Yes

Film & Television

Yes

Live entertainment

No

Exhibition, museum & shops

Yes

OPTICAL

Beam angle

15°-45°

Colours

5.600K

Refresh rate

Adaptable 600 - 4.000 Hz

Strobe

0-20 Hz

CRI

94 Ra

TM30

Rf = 90 | Rg = 103

PHYSICAL

Dimensions (WxHxD)

404 x 320 x 467 mm | 15.9 x 12.6 x 18.4 in

Packing dimensions (WxHxD)

439 x 386 x 511 mm | 17.3 x 15.2 x 20.1 in

Net weight

10 kg | 22.1 lb

Gross weight

11 kg | 24.3 lb

Cooling

Heat sink + air cooling

CONTROL

Menu

OLED display with 4 buttons

Control

DMX/RDM, manual

DMX mode

1/4/5 channels

Dimmer mode

16-bit dimming

In/Link

XLR 5-Pin

Zoom

Manual

Movement

One hand tilt locking

ELECTRICAL

Fixture rated power

220W

LED engine

200W 5.600K

Input power

100 - 240V ~ 50/60 Hz | Auto switching power supply

Power factor

0.96

In/Link

powerCON TRUE1 | max link current: 10A

IP rating

IP20

MOUNTING

Hanging

3x M12 hole

Standing

N/A

2nd suspension/safety wire

1x eye in back of the unit to pass carabiner

PHOTOMETRIC DATA

Light output 15° @ 5m

4.630 lux

Light output 15° @ 10m

1.190 lux

Light output 15° @ 15m

582 lux

Light output 45° @ 5m

881 lux

Light output 45° @ 10m

395 lux

Light output 45° @ 15m

137 lux
