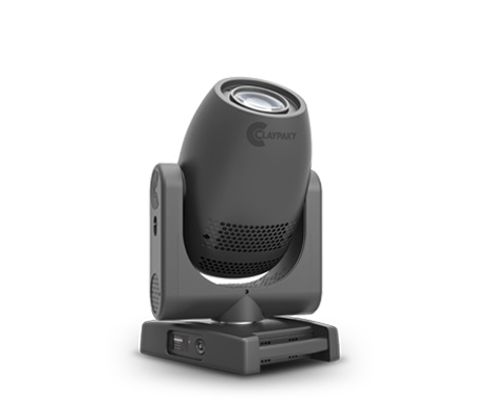

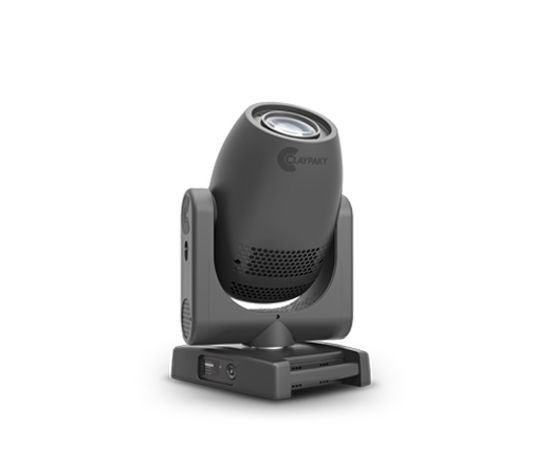

Clay Paky Axcor Spot 400

Axcor Spot 400

The Axcor Spot 400 provides the medium-power applications with a compact, bright, LED moving spotlight, complete with every device you need for exceptional projected visual effects. There is nothing like it in its category for variety of effects and possible combinations: 2 rotating dichroic glass gobo wheels, with a total of 14 rotating gobos, an animation disc, a rotating prism, a power-driven iris, and a 16-bit dimmer. In addition to these, it features highly advanced color management tools based on a CMY system with linear CTO and a 6-color wheel.Another outstanding device on the Axcor Spot 400 is the incredible 5.5°- 55° zoom (1:10 ratio!), with an extremely uniform light distribution at every beam aperture, which means you can use the unit in a wide range of application areas.The Axcor Spot 400 fits a 300W white LED source with a very high light output compared to its power. It can be ordered in the 6500 K version, which maximizes its light output, or in the 5600 K version which optimizes its CRI (at least 90).

• Source: 300W white LED module

• Versions available:

- CRI: 70, CT 6500K, 16,000 lm (Axcor Spot 400)

- CRI: 90, CT 5600K, 12,000 lm (Axcor Spot 400 HC)

• Ø 125mm front lens

• 5°- 55.5° linear zoom

• CMY + linear CTO

• One colour wheel with 6 colours

• 14 HD rotating gobos on two wheels

• Rotating 4-facet prism

• Animation wheel

• Mechanical iris

• Linear frost filter

• 16-bit electronic dimmer with 4 curves

• Electronic strobe @25 f/sec

• Three different fan ventilation modes (STD - AUTO -SLN)

• Weight: 26 Kg (57.3 lb)

MOVING BODY

PAN range 540°
TILT range 270°

ELECTRONICS

Long life self-charging buffer battery
Function reset from the lighting desk
“AUTOTEST” function from menu
Electronic monitoring with status error
Cooling system monitoring
DMX level monitoring on all channels
Internal data transmission diagnostics
Firmware Upgrade via Web Server
Firmware upload from another fixture
Protocols/Functions: RDM, Web Server

SAFETY DEVICES

Minimum distance of illuminated objects 3 meters (9’ 10”)
Minimum distance from flammable materials 0.2 meters (8”)
Max ambient temperature 40°C (104°F)
Max temperature of the external surface 90°C (194°F)
6.3AT fuse
Automatic break in power supply in case of overheating
Forced ventilation with axial fans

WORKING POSITION

Working in any position
Hanging system: with fast-lock omega clamps (1/4 turn) on the base

CE MARKING

In conformity with the European Directives:
• 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
• 2014/30/EU - Electromagnetic Compatibility (EMC)
• 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)
• 2009/125/EC - EcoDesign requirements for Energy-related Products (ErP)

WEIGHT

26 Kg (57.32 lbs)
