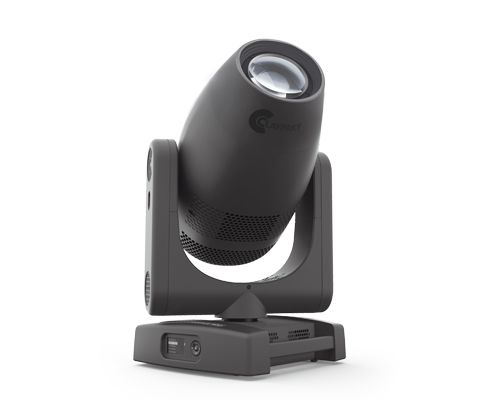

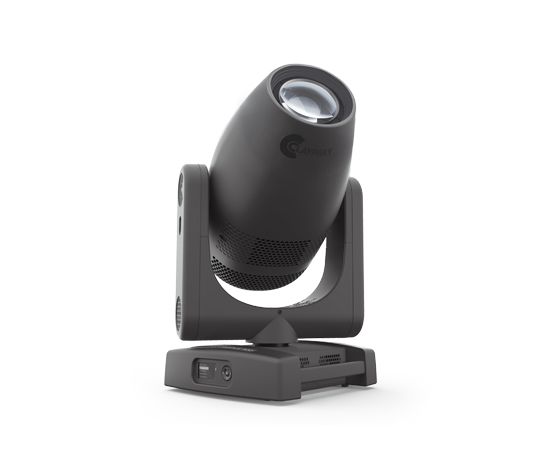

Clay Paky Axcor Profile 600

Axcor Profile 600

Axcor Profile 600 (code C61705)
Axcor Profile 600 HC (code C61706)
Axcor Profile 600 ST (code C61708)
Axcor Profile 600 HC-ST (code C61709)
Axcor Profile 600 Teatro (code CL3016)
Axcor Profile 600 HC Teatro (code CL3017)

In the crowded world of medium-high power lights, the AXCOR PROFILE 600 stands out for its excellent combination of high performance, exceptional light quality, and versatility of use.
It fits a 500 W white LED engine, available in two versions: with high output 6500K color temperature, or - alternatively - with 5600K color temperature and a CRI of around 90.
The luminous efficiency is among the highest in this power category, and - if necessary - it can be further increased by about 25% thanks to “boost mode” (available on the standard version and on the HC version), making AXCOR PROFILE 600 a perfect tool for tours and large events.
A wide zoom range from 5.3° to 47.2° (1:9 ratio) means the light can be used in a variety of situations, including those for which a narrow angle is best.
The completeness of its color section, its great wealth of visual effects, its framing system implemented with technological devices that enhance its precision and versatility, the possibility of using it as a wash light, make the Axcor Profile 600 an essential benchmark for all modern entertainment uses.

The AXCOR PROFILE 600 TEATRO is a special version of the Axcor Profile 600 ST that features an updated cooling system and mechanisms to significantly reduce the unit’s acoustical footprint. Available in two different CRI versions, this fixture is ideal for applications where noise is a concern in venues such as theatres, television studios, opera houses, conference halls, and more.

• Source: 500W White LED Engine
• Versions available:

- CRI: at least 70, CT 6500K (Axcor Profile 600 and ST)
- CRI: at least 90, CT 5600K (Axcor Profile 600 HC and HC-ST)

• Ø 132mm front lens
• 5.3°- 47.2° linear Zoom
• CMY + Linear CTO
• One Color Wheel with 5 Colors
• One Rotating Gobo Wheel with 7 Gobos
• Rotating 4-facet prism
• Animation wheel (interchangeable with fixed gobo wheel)
• Motorized framing system with 4 focal planes
• Framing system indexable over 90 degrees
• Variable Frost filter
• Iris with multiple macros (random, pulsing…)
• Electronic linear dimmer, 16 bit and 4 curves
• Electronic strobe @25 f/sec.
• Weight: 33 Kg (72.7 lbs)

MOVING BODY

PAN range 540°
TILT range 268°

ELECTRONICS

Long life self-charging buffer battery.
Function reset from the lighting desk.
“AUTOTEST” function from menu ARTNET.
Electronic monitoring with status error.
Cooling system monitoring.
DMX level monitoring on all channels.
Internal data transmission diagnostics.
Firmware Upgrade with no power.
Firmware upload from another fixture.

SAFETY DEVICES

Bipolar circuit breaker with thermal protection.
Automatic break in power supply in case of overheating.
Forced ventilation with axial fans.
Minimum distance of illuminated objects: 3 meters (9’ 10”).
Minimum distance from flammable materials: 0.2 meters (8”).
Max ambient temperature: 40°C (104°F).
Max temperature of the external surface: 90°C (194°F).

WORKING POSITION

Working position: Any.
Hanging system 2x fast-lock omega clamps (1/4 turn) on the
base.
Optional: 48-51mm, max300Kg clamps; Ø 4mm, lenght
680mm safety cable

CE MARKING

In conformity with the European Directives:
• 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
• 2014/30/EU - Electromagnetic Compatibility (EMC)
• 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS) • 2009/125/EC - EcoDesign requirements for Energy-related Products (ErP)

WEIGHT

33 Kg (72.7 lbs)
