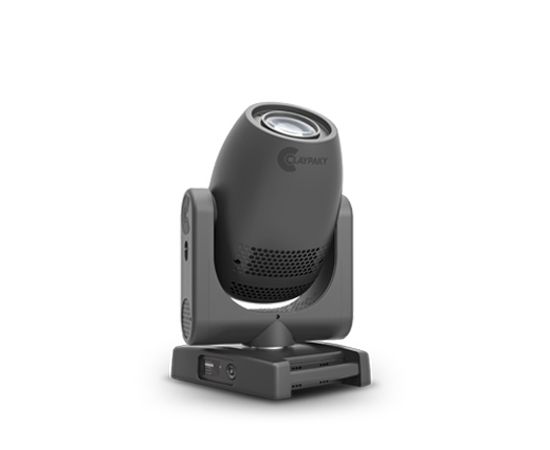

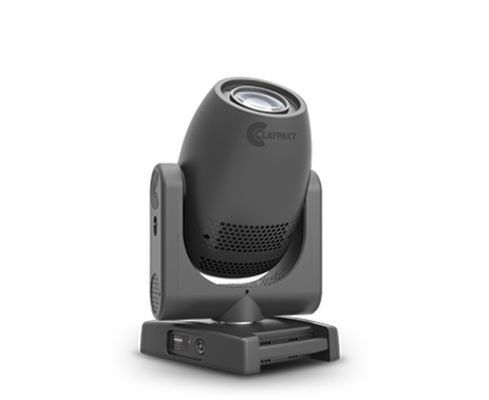

Axcor Profile 400
The Axcor Profile 400 enhances the medium-low power category with sophisticated professional functions. It has an extraordinarily compact body (65 cm / 25½ inches high) packed with all the most advanced lighting, mechanical and electronic features. These include a professional framing system, an animation wheel, a CMY + linear CTO system, and a high precision mechanical iris.
Its light source is a 300W white LED module designed specifically for this unit. The Axcor Profile 400 comes in a 16,000 lm, 6500 K, CRI=70 model, or alternatively a 12,000 lm, 5600 K CRI=90 model.
It is extremely quiet, and has three operating modes, which can be chosen according to needs: Silent, Standard and Auto.
- Source: 300W White LED Module
- Versions available:
- CRI: at least 70, CT 6500K (Axcor Profile 400)
- CRI: at least 90, CT 5600K (Axcor Profile 400 HC)
- Ø 120mm front lens
- 5°-43° linear Zoom
- CMY + Linear CTO
- One Color Wheel with 6 Colors
- One Rotating Gobo Wheel with 7 Gobos
- Rotating 4-facet prism
- Animation wheel
- Motorized framing system with 4 focal planes
- Framing system indexable over 90 degrees
- Mechanical Iris
- Variable Frost filter
- 16-bit Electronic Dimmer with 4 curves
- Electronic strobe @25 f/sec.
- Three different fan ventilation modes (STD - AUTO - SLN)
- Weight: about 27 Kg (59.5 lbs)
POWER SUPPLIES
AC power input Neutrik PowerCON True
100-240V, 50/60 Hz
INPUT POWER
500 VA @230Vac - 50Hz
LIGHT SOURCE
Source: 300W White LED Module
Versions available:
- CRI: at least 70, CT 6500K (Axcor Profile 400)
- CRI: at least 90, CT 5600K (Axcor Profile 400 HC)
OPTICS
Ø 120mm front lens
5°-43° linear Zoom
FRAMING SYSTEM
Framing System with 4 focal planes
4 Blades that move separately
Smooth, flexible blade movements at variable speed
90° rotation of the entire system, at variable speed
COLOR SYSTEM
CMY + Linear CTO
One Color Wheel with 6 Colors
EFFECTS SECTION
One Rotating Gobo Wheel with 7 Interchangeable Gobos
Rotating 4-facet prism ndexable on 540°
Animation wheel
Mechanical Iris
Variable Frost filter
16-bit Electronic Dimmer with 4 curves
Electronic strobe @25 f/sec.
CONTROL AND PROGRAMMING
36 control channels
inputs: DMX 512 – Art-Net
Control signal USITT DMX 512
Protocols RDM, WebServer and Art-Net
Display Graphic LCD backlit b/w Display
Pan/Tilt Resolution 16 bit
Gobo Resolution 16 bit
Dimmer Resolution 16 bit
DMX signal connection 5 poles XLR input and output
BODY
Aluminum and steel structure with plastic covers.
Two side handles for transportation.
Device locking PAN and TILT mechanisms for transportation and maintenance.
MOVING BODY
PAN range 540°
TILT range 270°
ELECTRONICS
Long life self-charging buffer battery.
Function reset from the lighting desk.
“AUTOTEST” function from menu ARTNET.
Electronic monitoring with status error.
Cooling system monitoring.
DMX level monitoring on all channels.
Internal data transmission diagnostics.
Firmware Upgrade with no power.
Firmware upload from another fixture.
Protocols/Functions: RDM, Web Server
SAFETY DEVICES
Bipolar circuit breaker with thermal protection.
Automatic break in power supply in case of overheating.
Forced ventilation with axial fans.
Minimum distance of illuminated objects: 3 meters (9’ 10”).
Minimum distance from flammable materials: 0.2 meters (8”).
Max ambient temperature: 40°C (104°F).
Max temperature of the external surface: 90°C (194°F).
WORKING POSITION
Working position: Any.
Hanging system 2x fast-lock omega clamps (1/4 turn) on the
base.
Optional: 48-51mm, max300Kg clamps; Ø 4mm, lenght
680mm safety cable
CE MARKING
In conformity with the European Directives:
• 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
• 2014/30/EU - Electromagnetic Compatibility (EMC)
• 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)
• 2009/125/EC - EcoDesign requirements for Energy-related Products (ErP)
WEIGHT
about 27 Kg (59.5 lbs)
