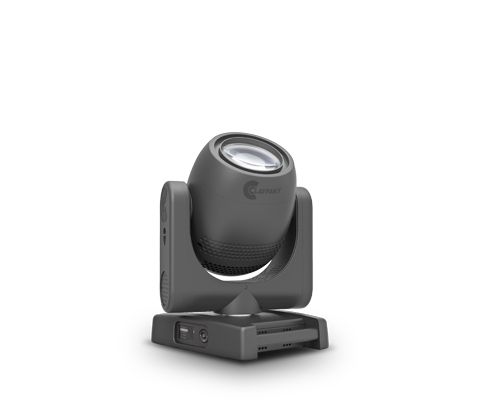

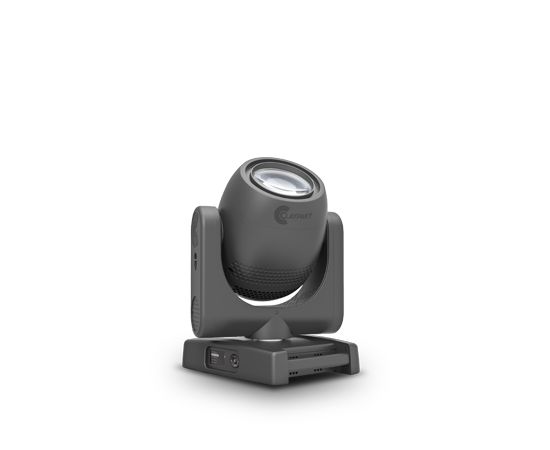

Clay Paky Axcor Beam 300

Axcor Beam 300

The new Axcor 300 family of moving LED fixtures brings Claypaky’s no-compromise quality and performance to the broad mid-market. The quality of their effects, their construction, and their high light output derive from the high-end products Claypaky specializes in.

The AXCOR BEAM 300 has an even more compact body - less than 500mm - and is able to emit a super-concentrated  solid  beam  with a beam angle as small as 2° and a surprising light output. The wealth and quality of its colors and aerial effects, its electronic focus and its 140 mm diameter front lens make the Axcor Beam 300 the ideal beam moving light in any application area, and the perfect replacement of a Claypaky Sharpy!
It boasts cutting-edge electronic and software technology, with all the features that enable optimal fixture management and maintenance over time. With a price-point, physical size and power consumption that disguise its strength and creative potential, the Axcor Beam 300 enables a new world of expression in touring, events, TV, theatre and installed lighting markets.

• Source: 110W White LED engine (7600 K)
• Ø 140mm front lens
• Beam aperture: 2°
• Motorised focus lens
• One color wheel with 14 Colors
• One gobo wheel with 17 Gobos
• Rotating 8-facet Prism
• 16-bit Electronic Dimmer with 4 curves
• Electronic strobe@24 f/sec
• Extremely compact and lightweight
• Two DMX modes: 14ch / 16ch (Sharpy mode)

ELECTRONICS

Long life self-charging buffer battery
Function reset from the lighting desk
“AUTOTEST” function from menu
Electronic monitoring with status error
Cooling system monitoring
DMX level monitoring on all channels
Internal data transmission diagnostics
Firmware Upgrade via Web Server
Firmware upload from another fixture
Protocols/Functions: RDM, Web Server

SAFETY DEVICES

Minimum distance of illuminated objects 3 meters (9’ 10”)
Minimum distance from flammable materials 0.2 meters (8”)
Max ambient temperature 40°C (104°F)
Max temperature of the external surface 90°C (194°F)
Forced ventilation with axial fans

WORKING POSITION

Working in any position
Hanging system: with fast-lock omega clamps (1/4 turn) on the base

CE MARKING

In conformity with the European Directives:
• 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
• 2014/30/EU - Electromagnetic Compatibility (EMC)
• 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)
• 2009/125/EC - EcoDesign requirements for Energy-related Products (ErP)

WEIGHT

17.6 Kg (38.8 lbs)
Dimensions (LxWxH): 345 x 268 x 492 mm
13.58" x 10.55" x 19.37"
