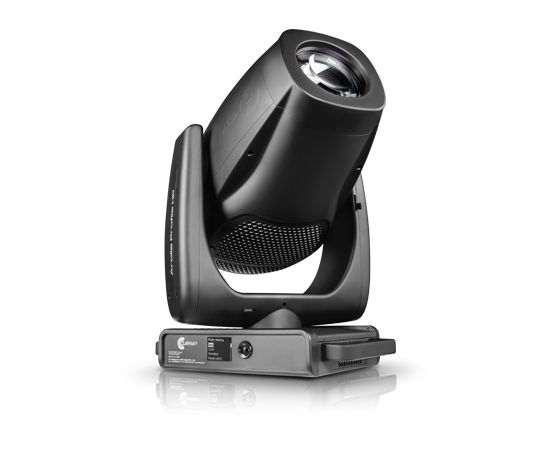

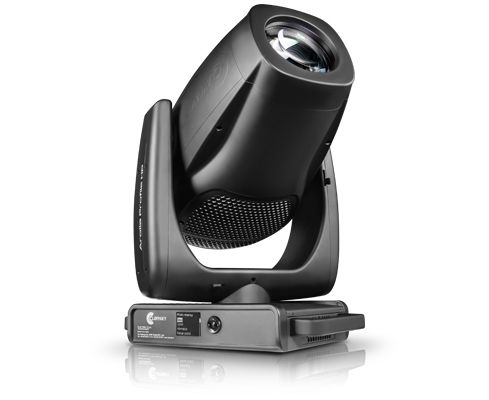

Arolla Profile HP
Lighting designers face a sea of moving head fixtures that seem virtually the same but lack the output and features they need. Rental companies need fixtures that offer a wide range of features that will provide a sooner than later return on their investment. The Claypaky Arolla Profile HP is designed to address these needs with its exceptional light output.
With its custom designed 1200-Watt white LED engine, the Arolla Profile HP is one of the most powerful LED Profile moving heads on the market. The LED engine produces 44,000 lumens and the Arolla Profile HP fixture’s beam is flat and uniform making projections crisp and colours rich. This fixture boasts a very comprehensive assortment of features: a 5°-50° (10:1) zoom, CMY colour mixing, a six-colour wheel including a CRI enhancement filter, linear CTO, six rotating gobos, seven fixed gobos, an animation disc, a four-facet rotating prism, a Claypaky framing system on four focal planes and macro channel control, a 16-blade iris, soft edge and flood frost filters, a 24-bit digital dimmer, and a fast digital stop-strobe effect. All the gobos are made of high-definition dichroic glass. They can be swapped and morphed with each other and the animation wheel to create new and exciting textures. The Arolla Profile HP has several low noise operating modes so you can use the unit virtually anywhere.
One of the essential features Claypaky targeted when creating this fixture was a significant reduction of the fixture’s size. Comparing the Arolla Profile HP to fixtures in this class, it is one of the most compact LED Profile Moving heads available but with one of the highest wattage and output LED engines. In addition to agile movements and a powerful feature set, this compact fixture leads to several benefits for rental firms in terms of maintenance, transportation, overall cost of ownership, and more. The Arolla Profile HP offers a much quicker return of investment than ever seen before.
The Arolla Profile HP has the feature set to be the go-to light for any show. It was designed to meet the features and size needs with an unmatched performance/price ratio.
- Light Source: Custom 1200W white LED engine (44,000-lumen output)
- 5°-50° (10:1) linear zoom
- 16-bit CMY Color Mixing
- Linear CTO
- 6-color wheel (includes a dedicated CRI enhancement filter)
- 6 HD interchangeable rotating gobos
- 7 HD interchangeable fixed gobos
- Animation wheel
- 4-facet rotating prism
- 16-blade iris
- Framing System: 4 focal planes, 90° rotation and macro channel control
- Soft edge frost and flood frost
- 24-bit digital dimmer
- Digital stop-strobe effect
- Control signal: USITT DMX 512. Protocols: RDM, WebServer and Art-Net.
- DMX Channels: 38
- Input Power: 1800 VA@230Vac 50Hz
- Low noise operating modes
- Weight: 44Kg (97.5 lbs.)
- Size: 470 x 320 x 800 mm (18.5 x 12.6 x 31.5 in.)
POWER SUPPLIES
Operating Voltage: 100-240V, 50/60 Hz
Power Supply: Electronic auto range with active PFC
INPUT POWER
Max Power consumption: 1650VA
LIGHT SOURCE TYPE
1200W White LED Engine
CRI: 70+ with selectable filter for CRI 88+
Colour Temperature: 6000K
LED life expectancy: 40000Hrs L70*
*It may vary depending on various factors, as type of use and environment
PHOTOMETRIC DATA
Zoom range: 5.8°- 50.5°
52000 Lumen Output (Integrating Sphere)
Front lens diameter: 160mm
High efficiency optical system
NOISE LEVEL
1200W Auto fan mode: 47.3 dBA
800W Auto fan mode: 44.1 dBA
600W Auto fan mode : 41.6 dBA
Silent fan mode: 41.3 dBA
Theatre fan mode: 40.3 dBA
CONTROL and CONNECTIONS
Personalities: Single mode with 39 control channels
Control Protocol: DMX, Art-Net, RDM
DMX and RDM connectors: Locking 3 and 5 pin XLR IN/OUT
Ethernet port: RJ45 IN
Power connector: PowerCon True1
Built In Web Server
DYNAMIC EFFECTS
Colours:
Linear CMY Color Mixing CMY
Linear CTO
Fixed color wheel with 6 dichroic colors including High CRI filter
Framing system:
4 blades with +/- 60° rotation of the full system
“Total Curtain" effect allowing the full blackout with each single blade
Built In macros
Gobos:
1 Rotating gobo wheel with 6 HD Indexable and replaceable gobos
1 Static gobo wheel with 7 HD replaceable gobos
Ext diam.31.9mm
Image diam. 24mm
Thickness 1.1mm
Frost:
Light frost 1° for soft diffusion
Heavy frost 5° for wash effect
Rotating Effects:
Aluminum animation wheel with continuous rotation in both direction at variable speed
4 Facets prism with rotation in both direction at variable speed
Iris:
Motorized with variable pulse and random effects
Movement:
Pan: 540° - 16bit
Tilt: 270° - 16bit
Automatic repositioning
Fast/Medium/Slow speed selectable by Function channel
Mechanical Pan/Tilt lock for safe transportation and maintenance
Beam:
Motorized Zoom and Focus
Dimmer/Shutter:
High resolution electronic Dimmer - 24 bit
High speed electronic Shutter and Strobe
HARDWARE and SOFTWARE
Long life self-charging battery
Display Graphic LCD backlit b/w Display
Firmware upload from another fixture
Firmware Upgrade via Web Server
Diagnostic
DMX monitoring
Remote access through RDM
CloudIO compatibility
HOUSING
Aluminum and steel structure with plastic covers
Two side handles for transportation
IP20 protection rate
WORKING POSITION
Working in any position
Hanging system: with fast-lock omega clamps (1/4 turn) on the base
Optional safety chain
THERMAL SPECIFICATION
Max ambient temperature 45°C (113°F)
Min ambient temperature -20°C (-4°F)
Max temperature of the external surface 90°C (194°F)
Total heat dissipation: 5636 BTU/hr ±10% / 5940 kJ/hr ±10%
SAFETY SPECS
Minimum distance of illuminated objects 2.5 meters (8’ 2”)
Minimum distance from flammable materials 0.2 meters (8”)
Fuse T25A – 250V
Thermally protected power supply (overheating and cooling failure)
Forced ventilation with axial fans
COMPLIANCE
In conformity with the European Directives:
• 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
• 2014/30/EU - Electromagnetic Compatibility (EMC)
• 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)
• 2009/125/EC - EcoDesign requirements for Energy-related Products (ErP)
cMETus Listed
PACKAGING
Carton box + Polystyrene
Carton box + Foam shell
Flight case + Foam shell (1 position)
WEIGHT - SIZE
44.7 Kg (98.5 lbs)
312x510mm (base dimension) – 800mm with vertical head(h) (20.1 x 12.3 x 31.5 in)
Distance between two fixtures 660 mm
ACCESSORIES
Omega clamps: 183102/805 (included)
Power cord: CAB02B/802 (included)
Foam shell: F21322/001 (optional)
Flight case 1 pos.: CF1013 (optional)
Safety Chain: 105041/003 (optional)
